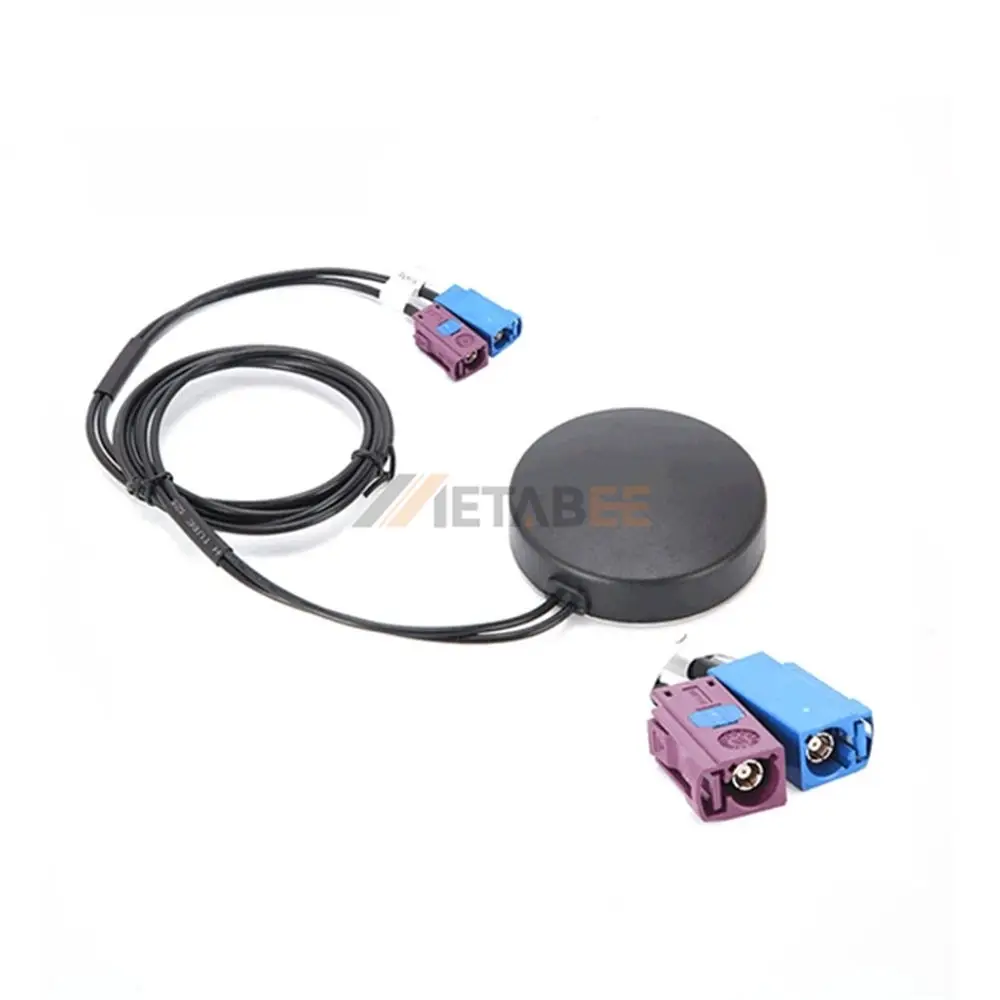

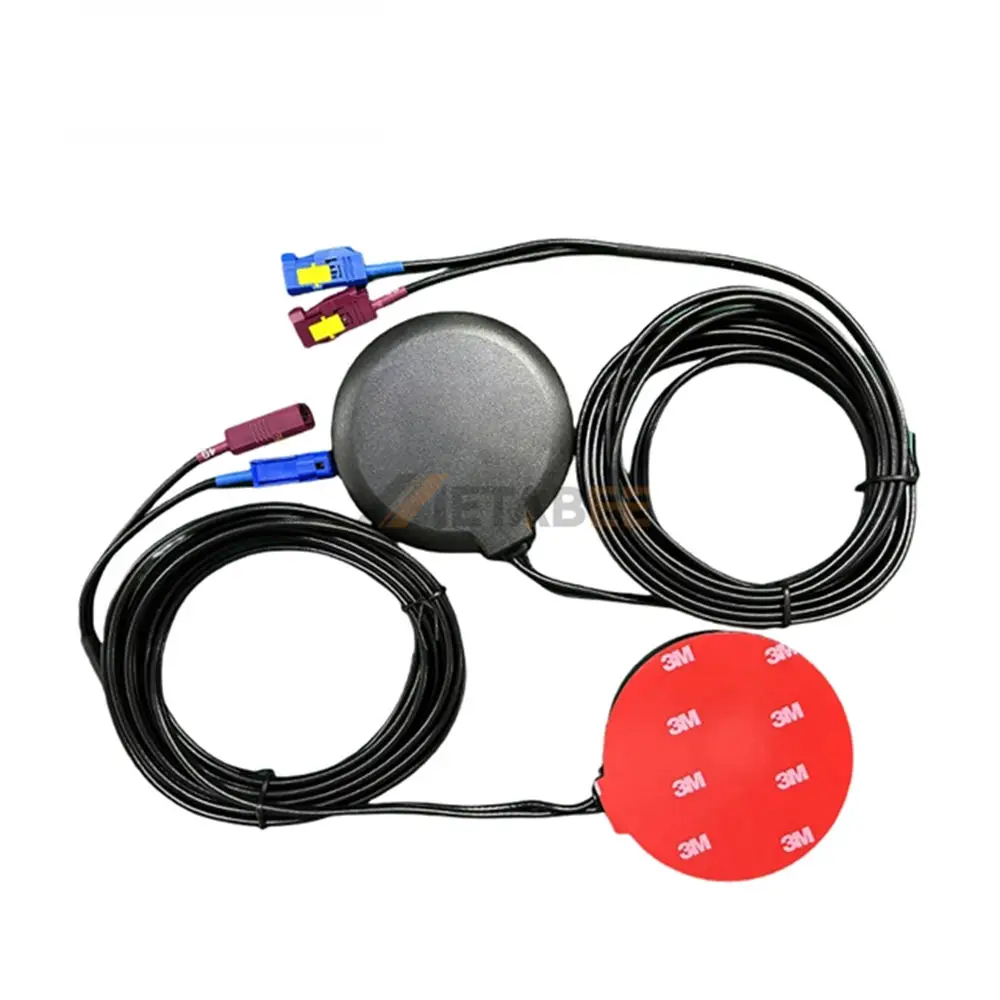

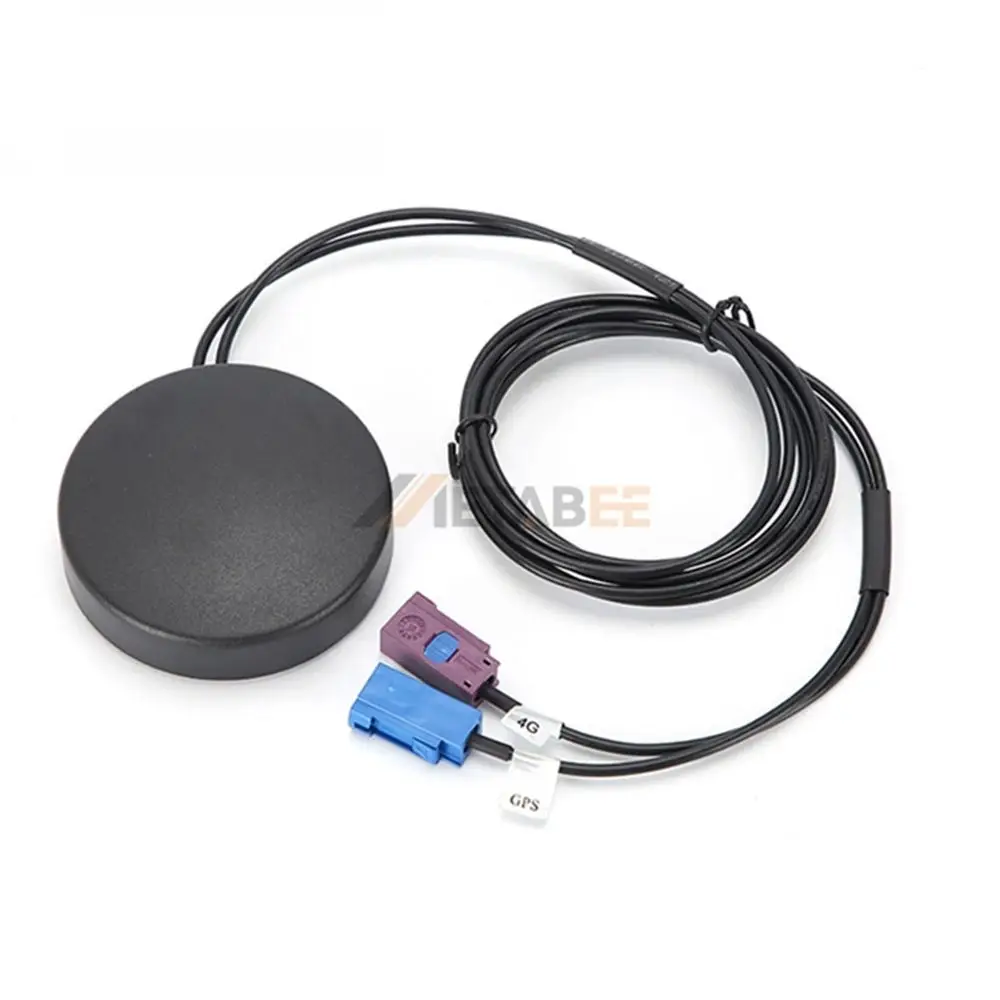

GPS/4G/LTE Combined Antenna, 28dBi, FAKRA Connector, IP67
Introduction:
The GPS/4G/LTE Combined Antenna is engineered to deliver stable wireless connectivity and high-precision positioning performance for modern communication and telematics systems. Designed with integrated GPS/GNSS and 4G/LTE functionality, this antenna supports reliable signal reception and transmission across vehicle, industrial, and IoT applications. Its vertical polarization design enhances signal stability while maintaining efficient omnidirectional coverage in demanding environments.
Featuring a high gain of 28dBi and a low VSWR of ≤1.92, the antenna ensures optimized signal efficiency, reduced transmission loss, and improved network reliability. The durable FAKRA connector provides secure RF connectivity widely used in automotive and professional communication systems. With a rugged IP67-rated housing, the antenna offers excellent resistance against water, dust, and harsh outdoor conditions.
Built for long-term operation, the antenna supports up to 50W maximum input power and operates reliably within a temperature range of -30°C to +75°C. Its 50 Ohm impedance ensures compatibility with various wireless communication devices and RF systems.
Key Features
- Integrated GPS/GNSS and 4G/LTE combined antenna design
- High 28dBi gain for enhanced signal performance
- Low VSWR ≤1.92 for efficient signal transmission
- Rugged IP67 waterproof and dustproof enclosure
- Reliable FAKRA connector for secure RF connection
- Wide operating temperature range from -30°C to +75°C
General Information:
| Product No.: | YC-GP00056 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | FAKRA Connector | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | – | |
| Gain: | 28dBi | |
| VSWR: | ≦1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this GPS/4G/LTE Combined Antenna, 28dBi, FAKRA Connector:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
