Introduction:
This gold plated brass solder cup pogo pin is a spring-loaded connector designed for direct wire soldering applications. It features a solder cup termination that allows for a secure and permanent connection to various wire gauges, facilitating wire-to-board or wire-to-component interfaces. The pin supports a 5A current and 12V DC rating, utilizing gold plated contacts to maintain low resistance at 20 mohms. With a 1mm working stroke and 70g spring force, it ensures consistent electrical conductivity over 1,000,000 cycles. This component serves as a reliable power or signal interface in cable assemblies and handheld electronic devices within a -55°C to +125°C temperature range.
Key Features
- Solder Cup: Solder cup termination allows for secure wire connections.
- Ultra Durable: Tested for 1,000,000 cycles ensuring long service life.
- Gold Plated: Gold plated finish prevents oxidation and maintains conductivity.
- Stable Contact: 1mm working stroke provides consistent electrical performance.
- Wide Temperature: Reliable performance from -55°C to +125°C temperatures.
Main Specifications:
General Information:

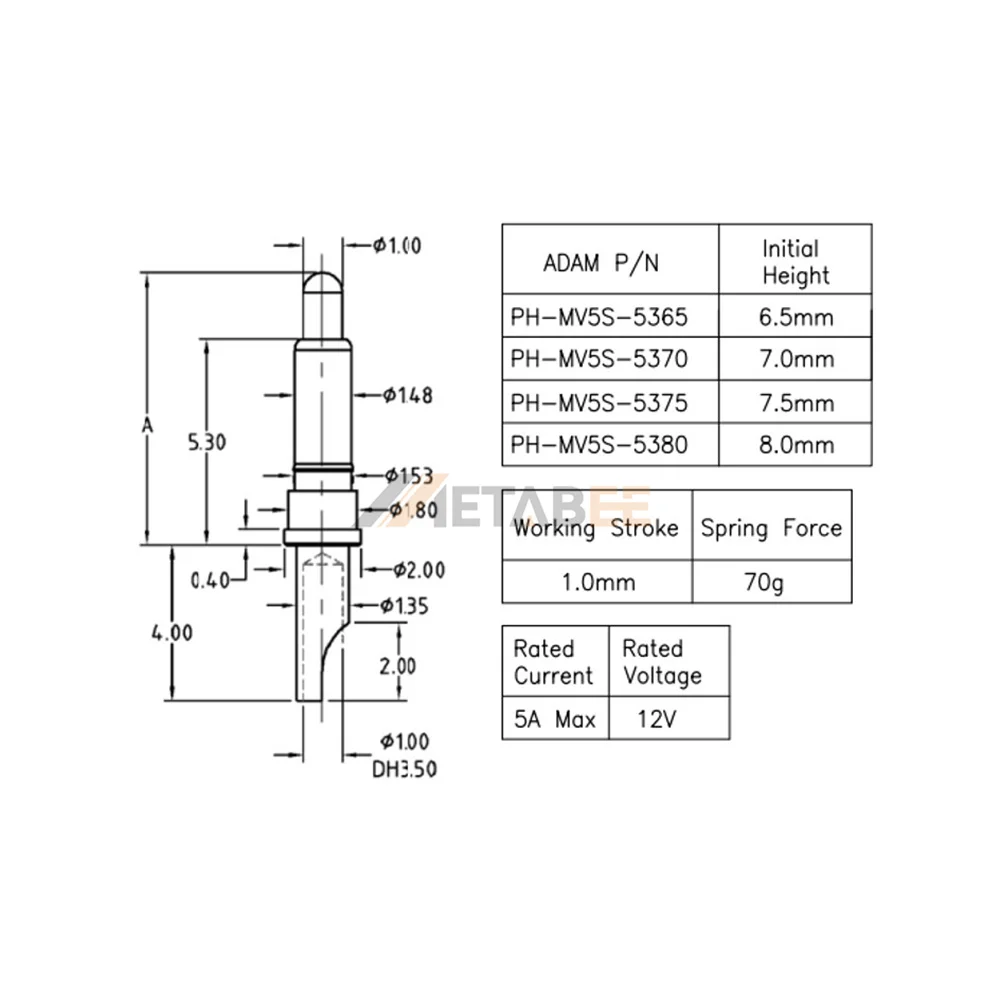

| Product No.: | PH-MV5S-XXXX | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Solder Cup | |
| Termination Method: | Solder | |
| Initial Height (mm): | 6.5mm/7mm/7.5mm/8mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70gf |
Electrical:
| Rated Current: | 5A Max | |
| Rated Voltage: | 12V | |
| Contact Resistance: | 20mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, Gold plated | |
| Barrel Material: | Brass, Gold plated | |
| Spring Material: | SUS Surface treatment |
Environmental:
| Operating Temperature: | -55°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
