Introduction:
This gold-plated brass pogo pin contact is a vertical surface mount connector designed for board-to-board power and signal transmission. It features a 9mm tall profile that provides significant clearance for stacked PCB assemblies while ensuring stable electrical contact. The 5u” thick gold plating on the brass components minimizes contact resistance and offers lasting protection against oxidation. With a 1mm working stroke and a spring force up to 120gf, it maintains reliable conductivity throughout its 50,000 cycle lifespan. This terminal serves as a dependable electrical link in mobile charging cradles and consumer electronics where vertical space and durable mechanical performance are required.
Key Features
- SMT Design: Surface mount design supports efficient automated PCB assembly.
- Durable Life: Tested for 50,000 cycles ensuring long-term mechanical reliability.
- Tall Profile: 9mm initial height accommodates large gaps between boards.
- Gold Plated: Thick 5u” gold finish maintains low 30 mohms resistance.
- Stable Force: SUS304 spring provides consistent pressure over 1mm stroke.

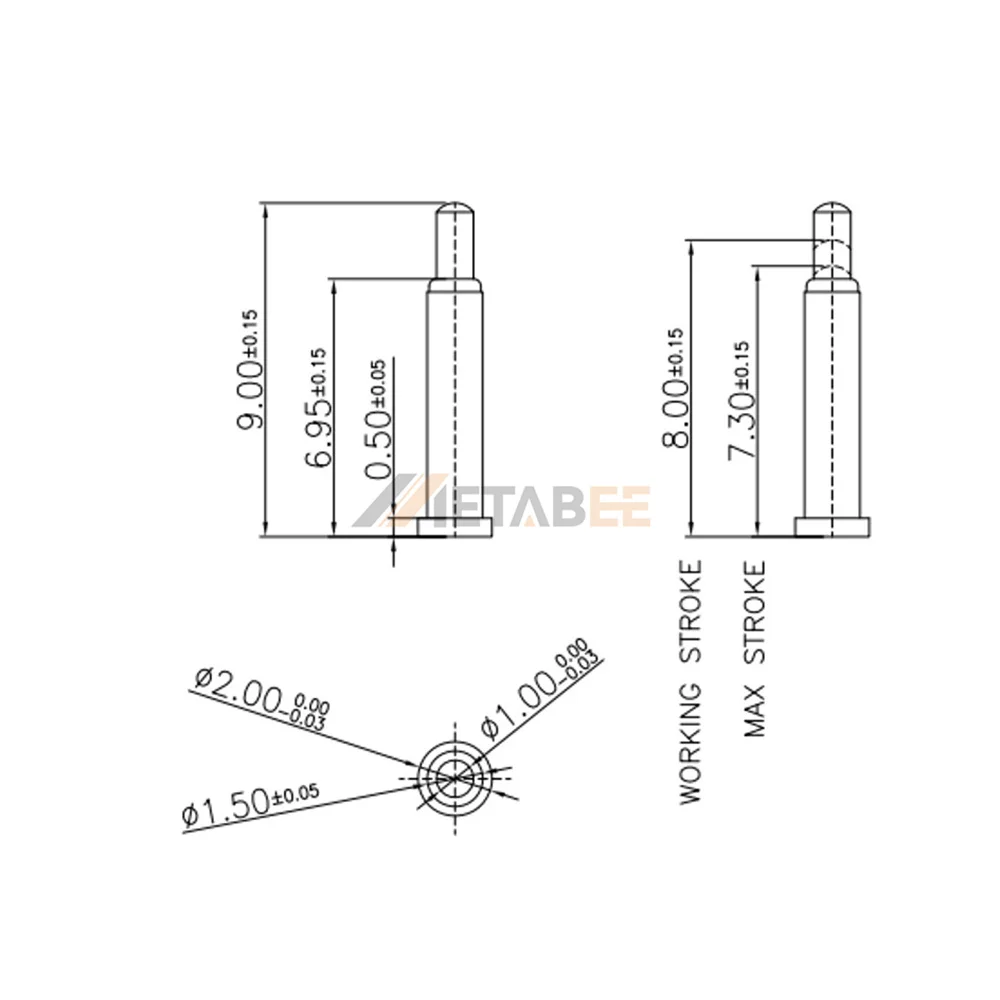

Main Specifications:
General Information:
| Product No.: | PH-MVF-7090-C1 | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 9mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 60~120gf | |
| Life Test: | 50,000 Cycles |
Electrical:
| Rated Current: | 2.5A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 30mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, 5u” Gold plated | |
| Barrel Material: | Brass, 5u” Gold plated | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
