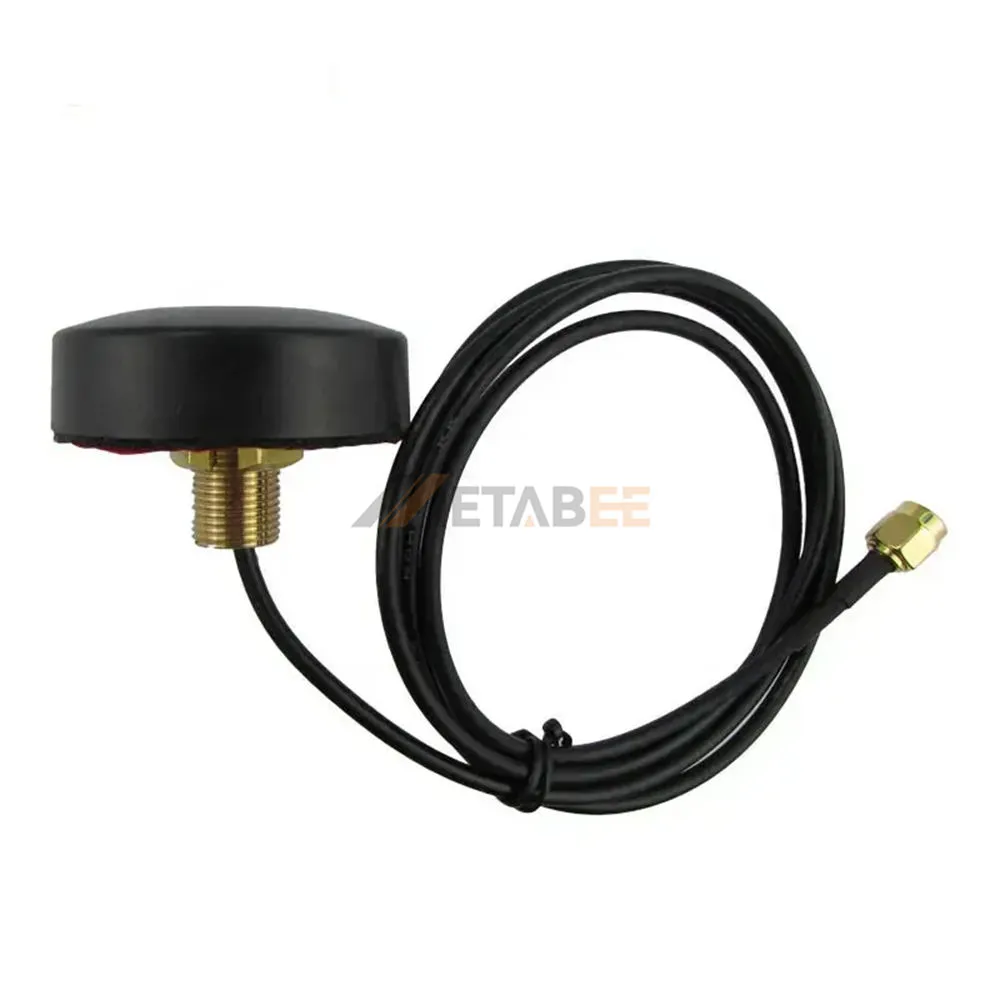

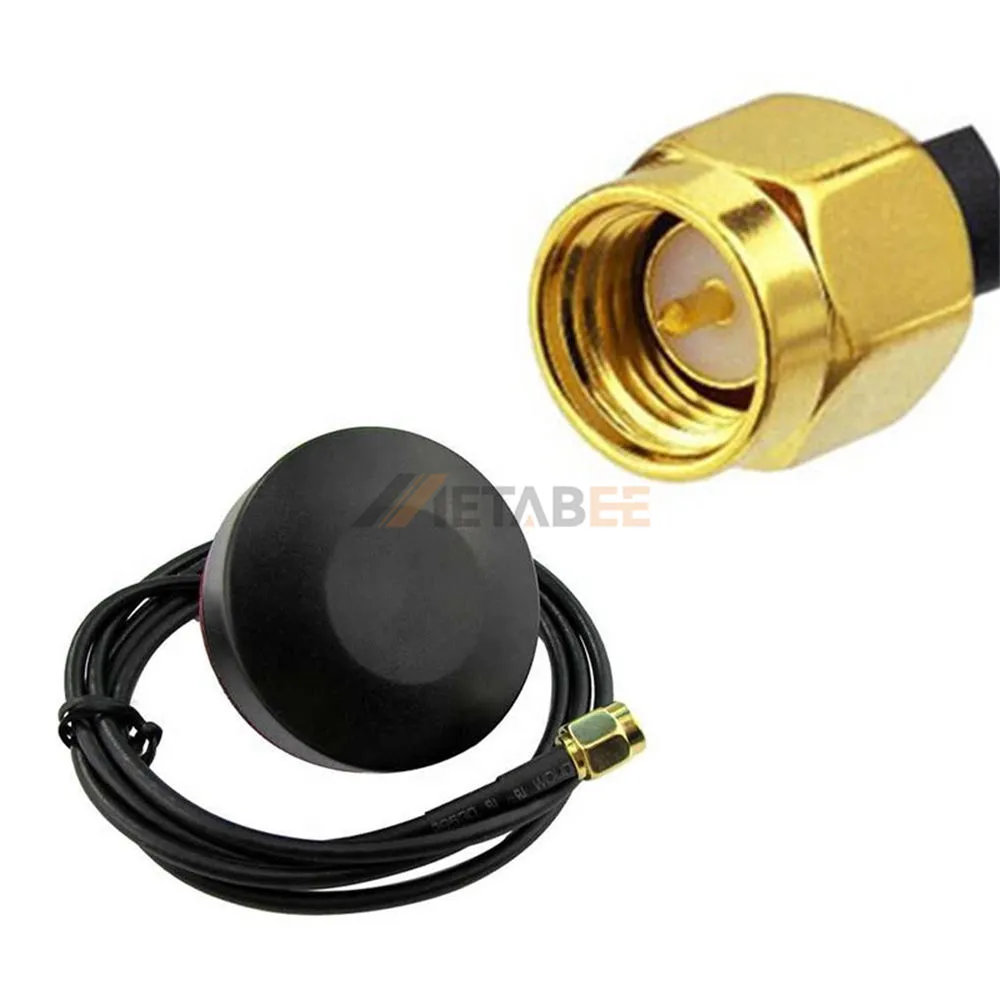

GLONASS L1 Band Antenna, SMA/Fakra with RG174 Cable, 1602 MHz, 3dBi, IP65
Introduction:
This GLONASS L1 band antenna is engineered for reliable positioning and navigation performance at 1602 MHz. Designed with an omnidirectional radiation pattern and vertical polarization, it ensures stable signal reception across a wide coverage area, making it suitable for automotive, telematics, and GNSS tracking systems.
With a compact and durable design, the antenna delivers a 3dBi gain and supports a VSWR of ≤1.9 for efficient signal transmission. It is equipped with a 50 Ohm impedance to ensure optimal system compatibility and stable RF performance. The SMA/Fakra connector combined with an RG174 cable provides flexible and secure installation in various device configurations.
Built for harsh environments, the antenna features an IP65-rated enclosure for protection against dust and water ingress. It operates reliably within a temperature range of -30°C to +75°C, ensuring consistent performance in demanding outdoor and industrial applications.
Key Features
- Frequency: 1602 MHz GLONASS L1 band optimized for navigation accuracy
- Gain: 3dBi with omnidirectional radiation pattern for wide coverage
- VSWR: ≤1.9, ensuring stable and efficient signal transmission
- Polarization: Vertical for improved satellite signal reception
- Connector: SMA/Fakra with RG174 cable for flexible installation
- Protection: IP65-rated housing with -30°C to +75°C operating range
General Information:
| Product No.: | YC-GP00018 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA/Fakra | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP65 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1602 MHz | |
| Gain: | 3dBi | |
| VSWR: | ≦1.9 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this GLONASS L1 Band Antenna, SMA/Fakra with RG174 Cable:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
