Introduction:
High-density network systems rely on the stacked USB RJ45 modular jack to integrate Gigabit Ethernet and USB interfaces into a single space-saving component. Reliable 1G Base-T data speeds are maintained through all ports to ensure exceptional networking performance within the 0 to 70 degrees Celsius range. A robust nickel-plated brass shield provides full enclosure to block electromagnetic interference effectively during high-speed traffic. Visual link status updates depend on integrated green and yellow LED indicators positioned in the tab-up and down profiles. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20 milliohms in this stacked USB RJ45. Secure mechanical alignment onto the PCB depends on the integrated board guide and solder retention features during right-angle THT mounting.
Key Features
- Gigabit Speed: Supports high-speed 1G Base-T Ethernet data transmission.
- Dual Interface Design: Combines stacked RJ45 and USB ports efficiently.
- Full Brass Shielding: Blocks severe electromagnetic interference for signals.
- Stable THT Mounting: Board guide and solder retention ensure stability.
- Low Resistance Contacts: Gold plating ensures conductivity below 20 milliohms.
Main Specifications:
General Information:

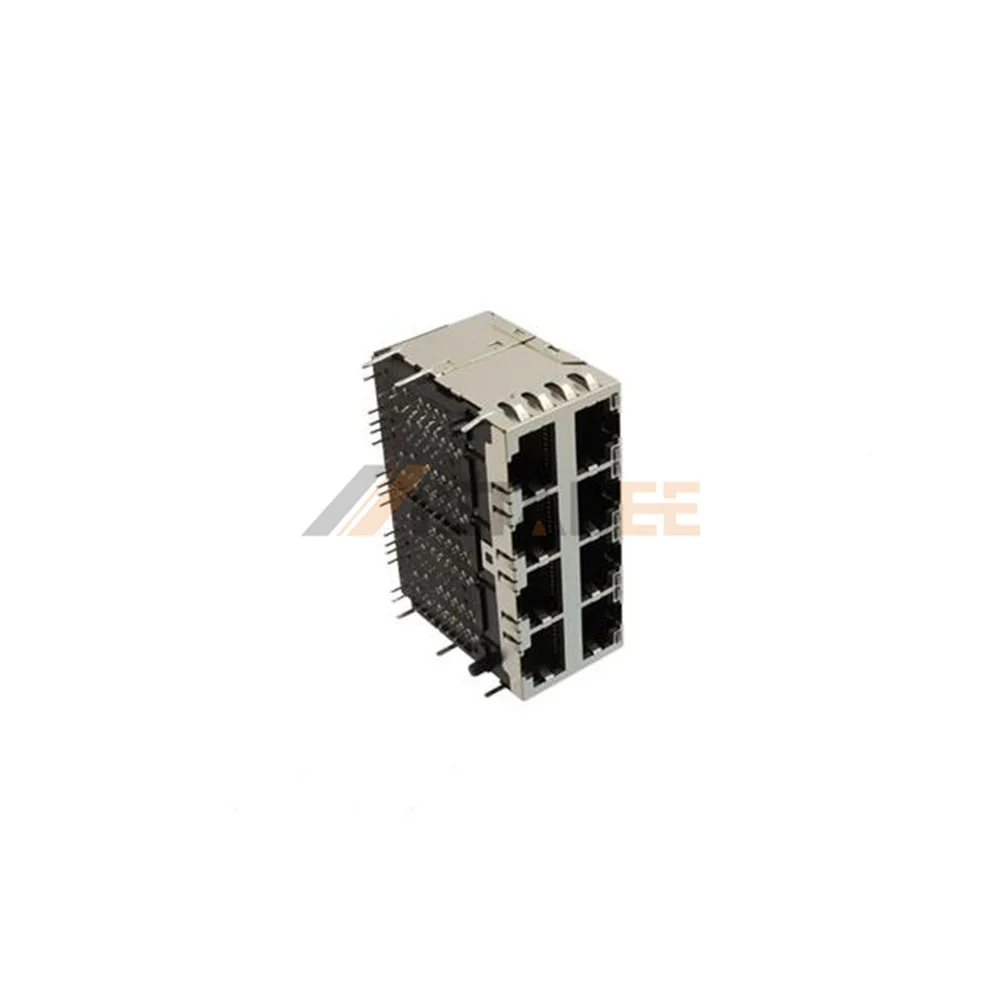

| Product No.: | MTJG-8-88JX1-V-FSG-PG-L16-M310C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green/Yellow, Right: Green/Yellow |
Electrical:
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
