Introduction:
The Dual Stacked RJ45 is a high-density 2×2 multi-port network interface designed for Gigabit Ethernet systems. Exceptional 1000 Base-T data speeds are maintained throughout the 0 to 70 degrees Celsius commercial temperature range. A robust nickel-plated copper alloy shield encloses the black polyester insulator to block electromagnetic interference effectively. Visual link status is tracked through built-in green and green/yellow LED indicators in this dual stacked rj45. Secure mechanical alignment on the PCB depends on a right-angle through hole configuration and integrated board locks. Gold-plated phosphor bronze contacts strictly maintain electrical resistance below 30 miliohms for long-term signal clarity.
Key Features
- 1000 Base-T Speed: Supports reliable high-speed Gigabit Ethernet data transmission.
- 2×2 Port Density: Connects four network devices using a single module.
- Full Metal Shielding: Blocks severe electromagnetic interference for clear signals.
- Integrated Status LEDs: Green and yellow lights display network activity.
- Secure THT Mounting: Board locks ensure precise and stable PCB alignment.
Main Specifications:
General Information:
| Product No.: | MTJG-4-88JX1-V-FSG-PG-LV-M209 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Green/Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material | Polyester | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

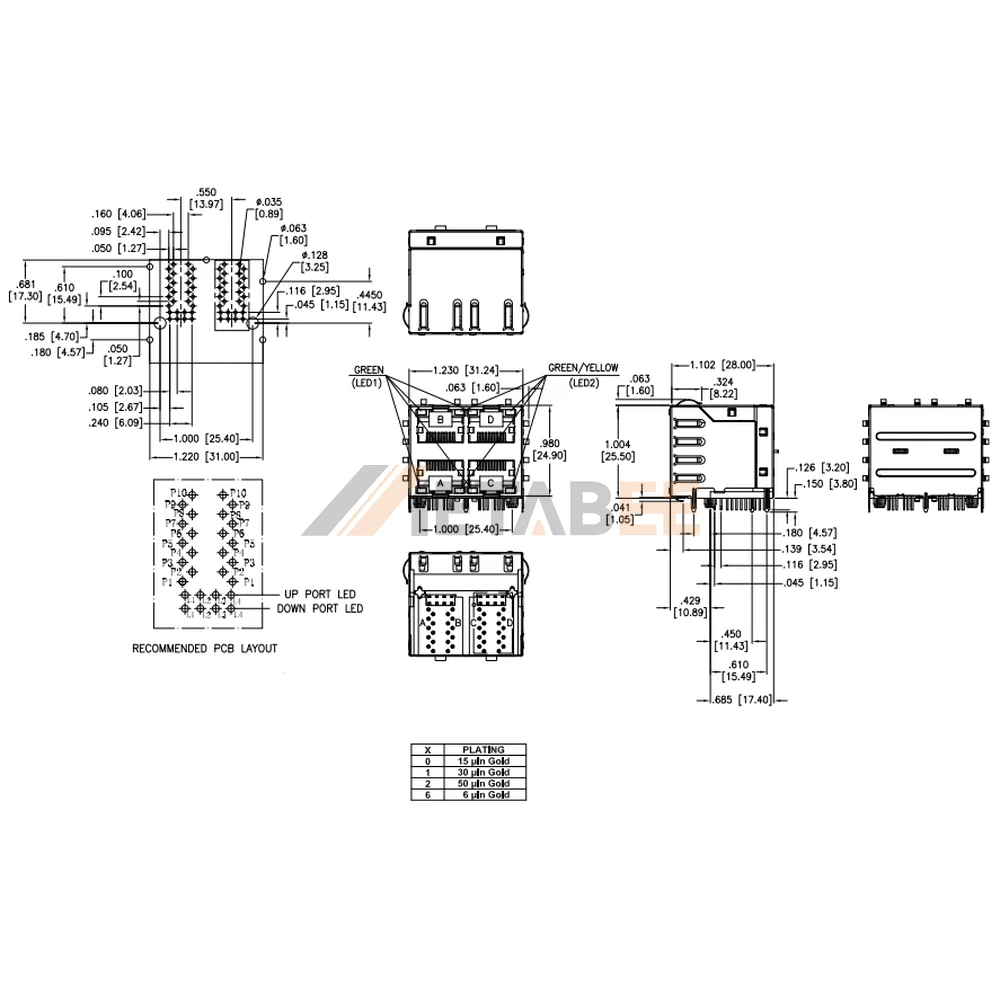

Structure of Modular Jack
