Introduction:

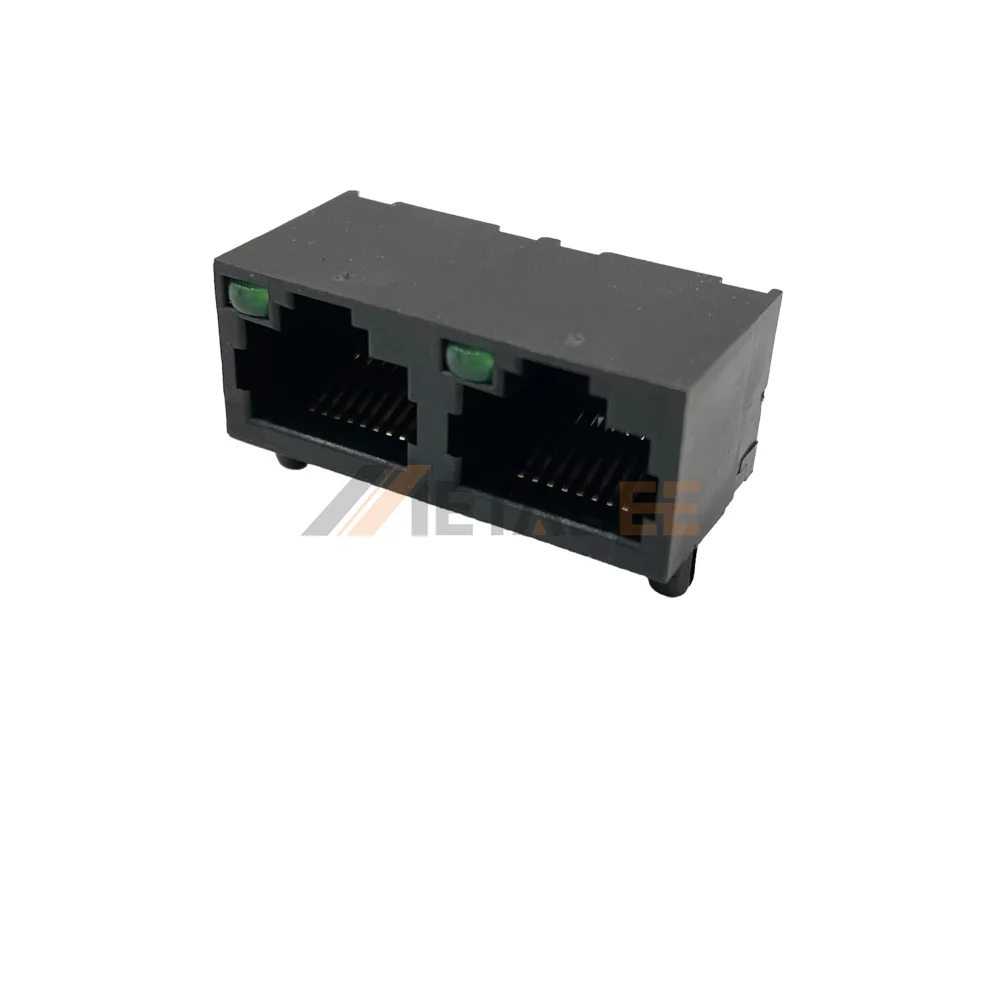

The ganged dual RJ45 Ethernet modular jack is a 1×2 side-by-side network interface used for high-density circuit board layouts. Reliable data transmission is supported across two 8P8C ports for standard Ethernet connectivity in diverse systems. Constant operation is maintained throughout the industrial -40C to +85C temperature range in rugged environments. Durable black PBT insulation houses phosphor bronze contacts with gold over nickel plating to ensure component integrity. Secure mechanical bond relies on the right angle THT configuration while contact resistance stays strictly below 20 miliohms. Integrated green and blank LED indicators provide visual link monitoring within the tab-up profile. Industrial computers, network routers, server motherboards, and automated controllers frequently utilize this component to optimize board space.
Key Features
- Ganged 1×2 design: Facilitates dual side-by-side Ethernet port connectivity.
- Industrial temperature range: Operates reliably between -40C and +85C.
- Unshielded UTP profile: Optimizes board space for cost-effective hubs.
- Secure PCB mounting: THT termination ensures stable mechanical retention.
- Low resistance contacts: Gold plating maintains strictly under 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88ARX1C-LE | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Green, Right: Blank |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
