Introduction:

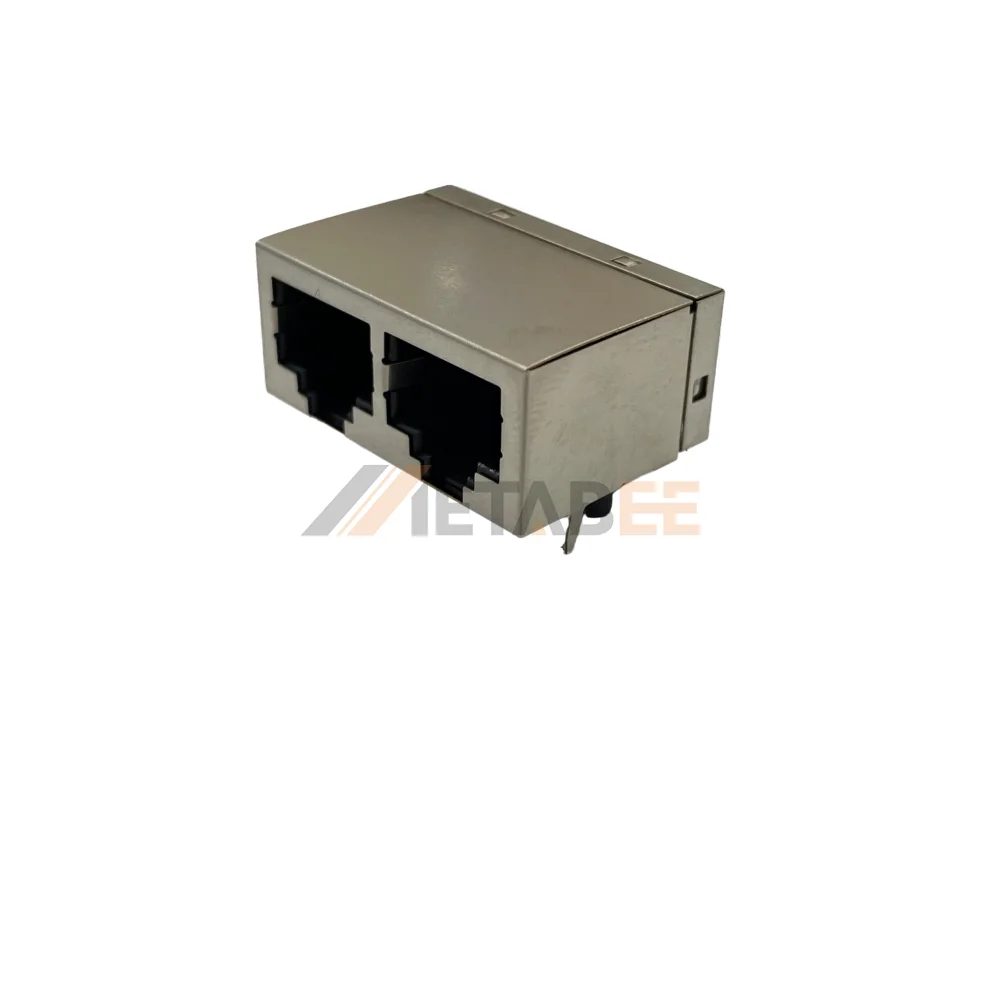

This product is a ganged 1×2 modular component used for high-density Ethernet network layouts. Reliable performance is sustained throughout the industrial -40C to +85C temperature range for consistent connectivity. A robust nickel plated brass shield encloses the black PBT insulator to reject electromagnetic interference effectively. Gold plated phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms. Secure mechanical bonding to the PCB depends on the right angle through hole termination. High insulation resistance exceeding 1000 Mohms ensures flawless signal clarity. Industrial computers, network switches, and automated controllers frequently utilize this component to optimize board space.
Key Features
- Ganged 1×2 configuration: Facilitates two side-by-side network ports.
- Industrial temperature range: Operates reliably between -40C and 85C.
- Full brass shielding: Blocks severe electromagnetic interference for signals.
- Durable PBT housing: Ensures high mechanical stability for PCB.
- Low contact resistance: Gold plating ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88GX1-FSG | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
