Introduction:
The dual ports ganged RJ45 PCB connector is a 1×2 side-by-side network interface developed for high-density circuit board integration. Consistent data transmission is maintained across two 8P8C interfaces without the need for metal shielding in this unshielded UTP version. Reliable operation is sustained throughout the industrial -40C to +85C temperature range for severe environments. Robust black PBT insulation ensures high mechanical stability during right-angle mounting. Visual link indicators are excluded to achieve a streamlined no LED profile for specialized board designs. Furthermore, gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms. Secure mechanical bond to the board relies on the THT soldering method. Modern network switches, industrial controllers, and server motherboards frequently incorporate these versatile sockets.
Key Features
- Ganged 1×2 configuration: Provides two side-by-side network ports efficiently.
- Industrial temperature range: Operates reliably from -40C up to +125C.
- Unshielded 8P8C design: Optimizes board space for cost-effective hubs.
- Durable PBT housing: Polyamide insulation ensures high mechanical stability.
- Low resistance contacts: Gold plating ensures strictly under 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-2-642X1 | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

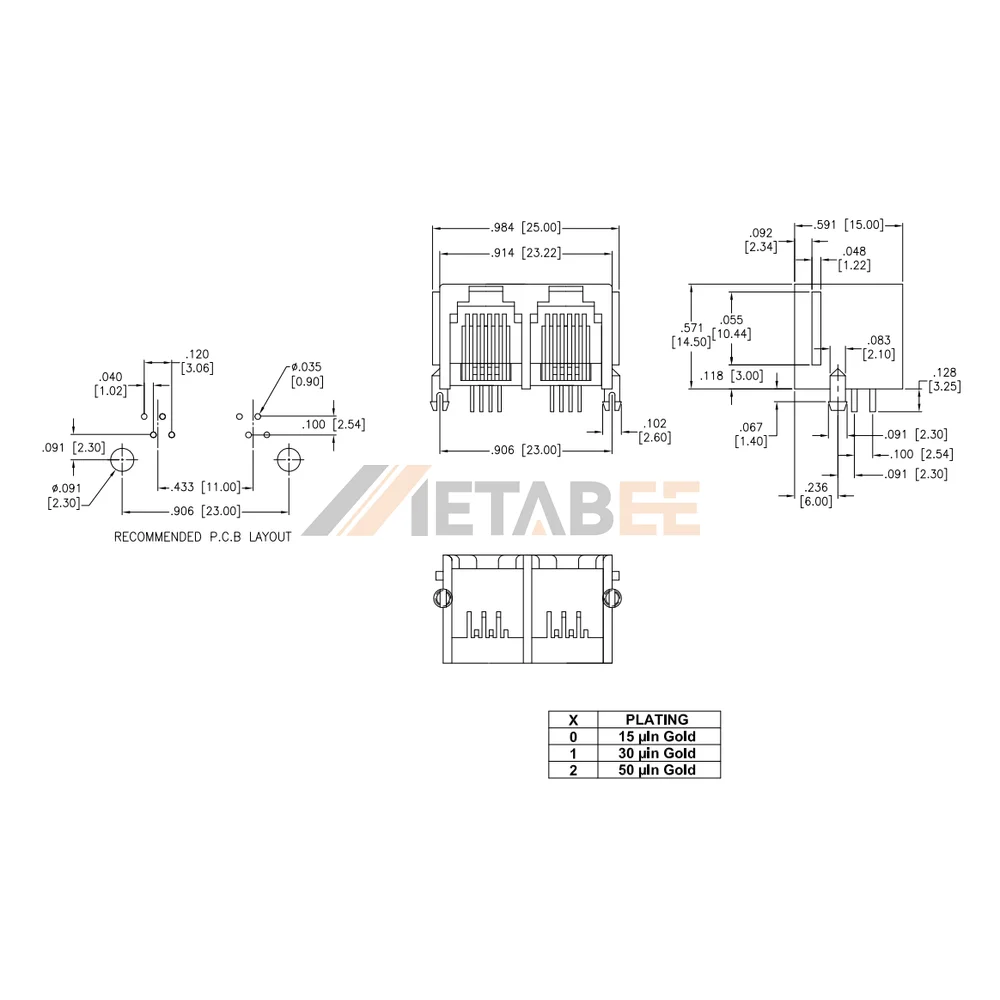

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
