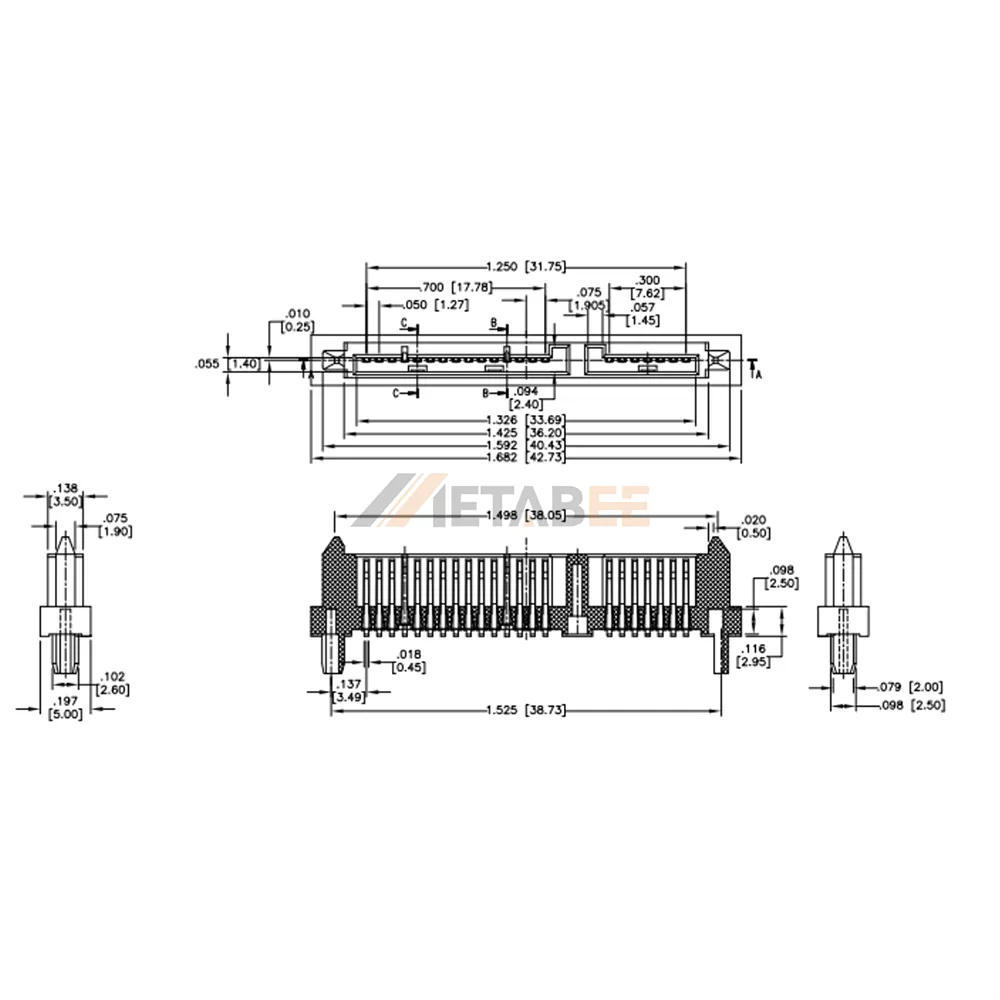

Dual Port SATA Female Data & Power Connector, 22-Pin, SMT, Vertical
Introduction:
Dual port sata female data & power connector, 22-pin, smt, vertical. This connector features a dual port design with 7+15 pin configuration, providing both data and power connections in one compact unit. It is a female connector with vertical mounting orientation, designed for pcb smt assembly. Rated current is 1.5a, with contact resistance of 30 mohms max and insulation resistance of 1,000 mohms min. Dielectric withstanding voltage is 500 vac. The connector meets ul94v-0 flammability rating and operates from -55°c to 85°c.
Key Features
- Dual port 7+15 pin female connector
- Vertical pcb smt mounting
- Rated current 1.5a
- Contact resistance 30 mohms max
- Insulation resistance 1,000 mohms min
- Ul94v-0, -55°c to 85°c
Main Specifications:
General Information:
| Product No.: | SATA-A4-PM-VT-SMT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
