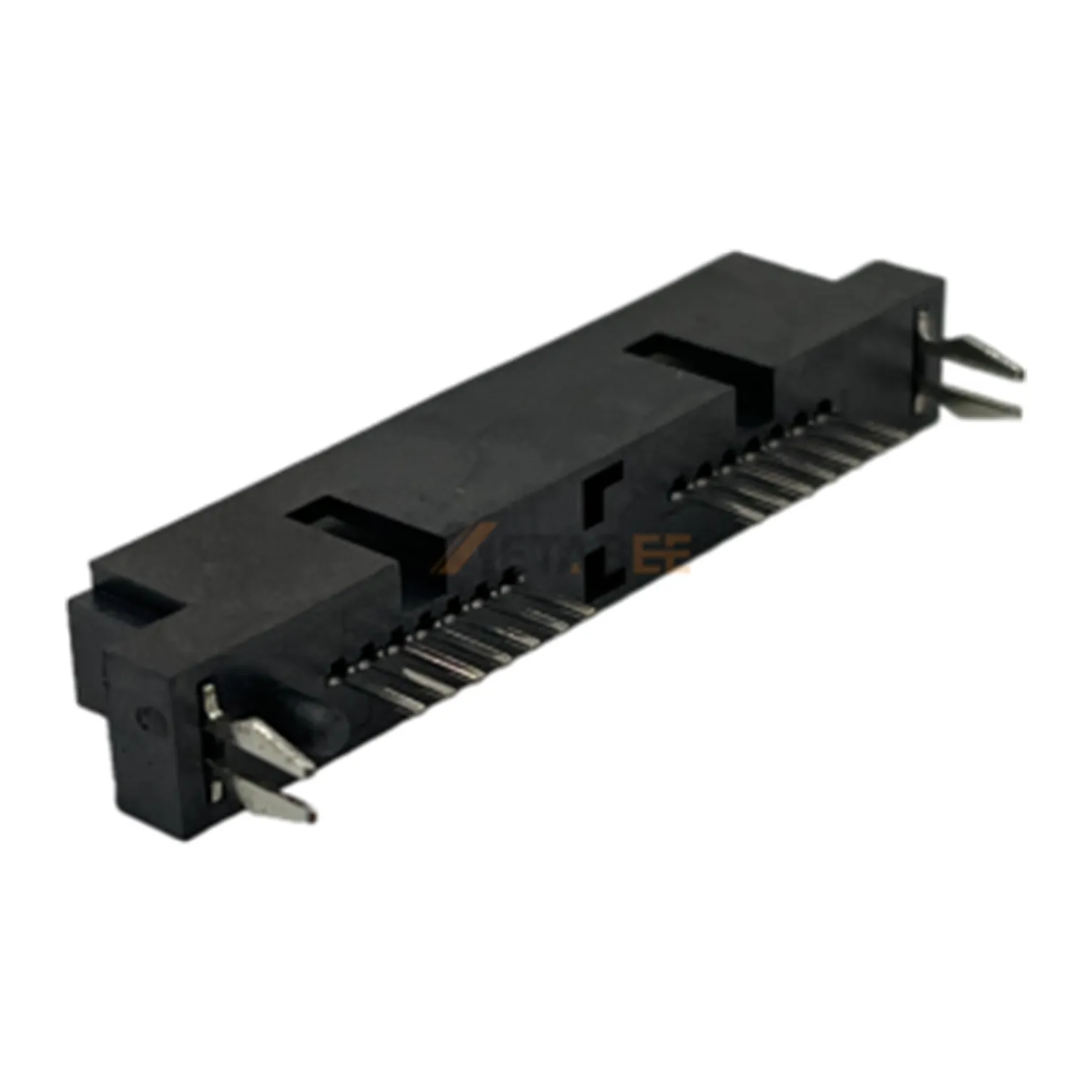

Dual Port SATA 7+7 Pin Male Connector, Thru Hole, Vertical
Introduction:
Engineered for high-density storage and server environments, this vertical dual-port sata 7+7 pin male connector delivers outstanding high-speed data transmission in a compact footprint. Its stacked dual-port male interface allows simultaneous connection to dual storage drives, maximizing backplane efficiency while optimizing circuit layout space.
The through-hole vertical orientation provides robust mechanical retention, vibration resistance, and long-term durability under repetitive mating cycles. Molded from premium ul94v-0 flame-retardant material, this connector operates consistently across extreme temperature ranges, making it an ideal choice for enterprise storage systems, industrial backplanes, and rackmount servers.
Key Features
- Dual-port 7+7 pin male configuration doubles connection capacity in minimal space.
- Vertical through-hole mounting ensures maximum mechanical stability and solder joint strength.
- 1.5 a current rating supports robust electrical performance for storage interfaces.
- Low 30 mohms maximum contact resistance minimizes transmission loss.
- High 1,000 mohms minimum insulation resistance with 500 vac dielectric strength.
- Wide -55°c to +85°c operating temperature range with ul94v-0 flame-retardant housing.
Main Specifications:
General Information:
| Product No.: | SATA-F-PL-VT-K-P | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+7 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
