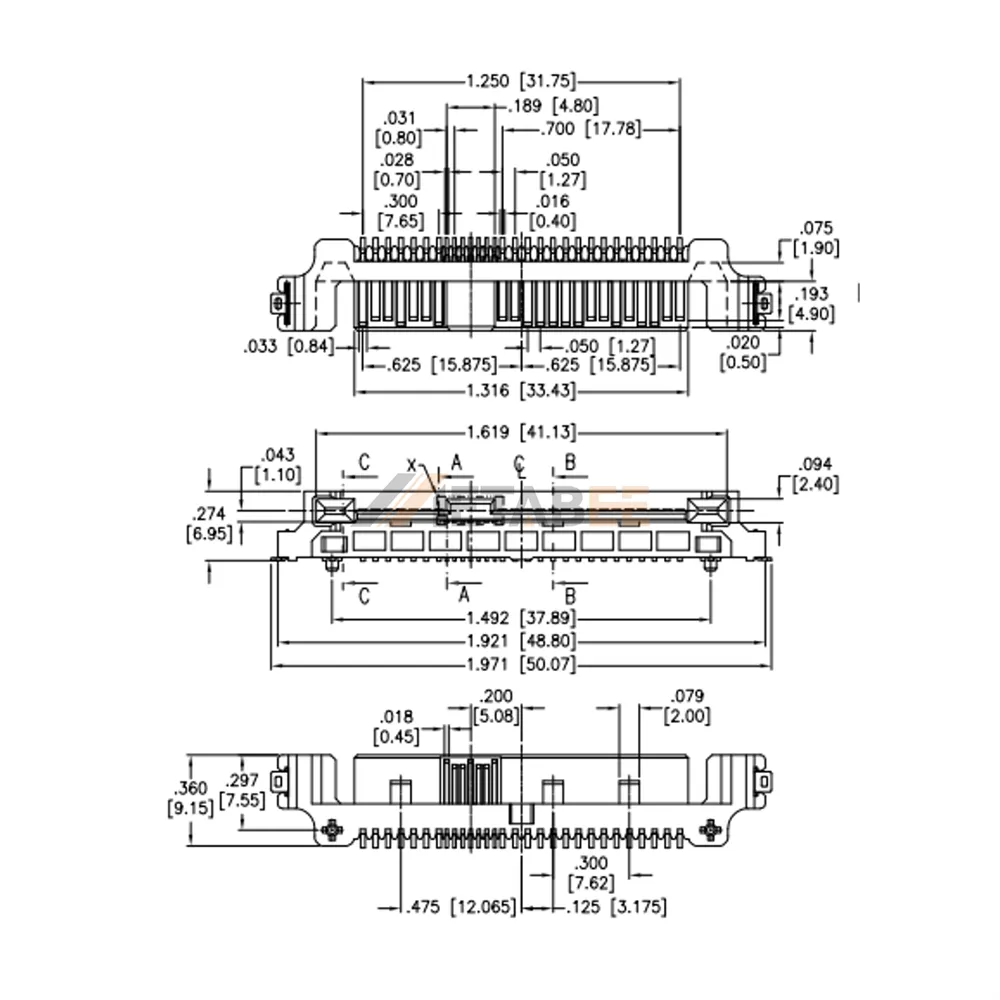

Dual Port SAS Female Data & Power Connector, 29 Pin, SMT, Vertical
Introduction:
The dual port sas female data & power connector is designed for reliable sas connectivity in servers, storage systems, data centers, and industrial equipment. Featuring a dual port configuration with a 7+15+7 pin, 29 pin interface, this connector combines data and power connections in a compact solution. Its vertical mounting orientation and smt pcb installation support efficient board-level integration.
With a rated current of 1.5a, the connector provides stable electrical performance for demanding storage applications. Contact resistance is 30 mω max, insulation resistance is 1,000 mω min, and dielectric withstand voltage is 500 vac. The ul94-v0 flame-retardant construction and -55°c to 85°c operating temperature range support reliable operation across varied environments.
Key Features
- Dual port sas female connector
- 29 pin, 7+15+7 pin configuration
- Vertical mounting orientation
- Smt pcb installation
- 1.5a rated current
- Ul94-v0, -55°c to 85°c
Main Specifications:
General Information:
| Product No.: | SATA-A12-PM-SMT-P-30-R | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15+7 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
