Introduction:

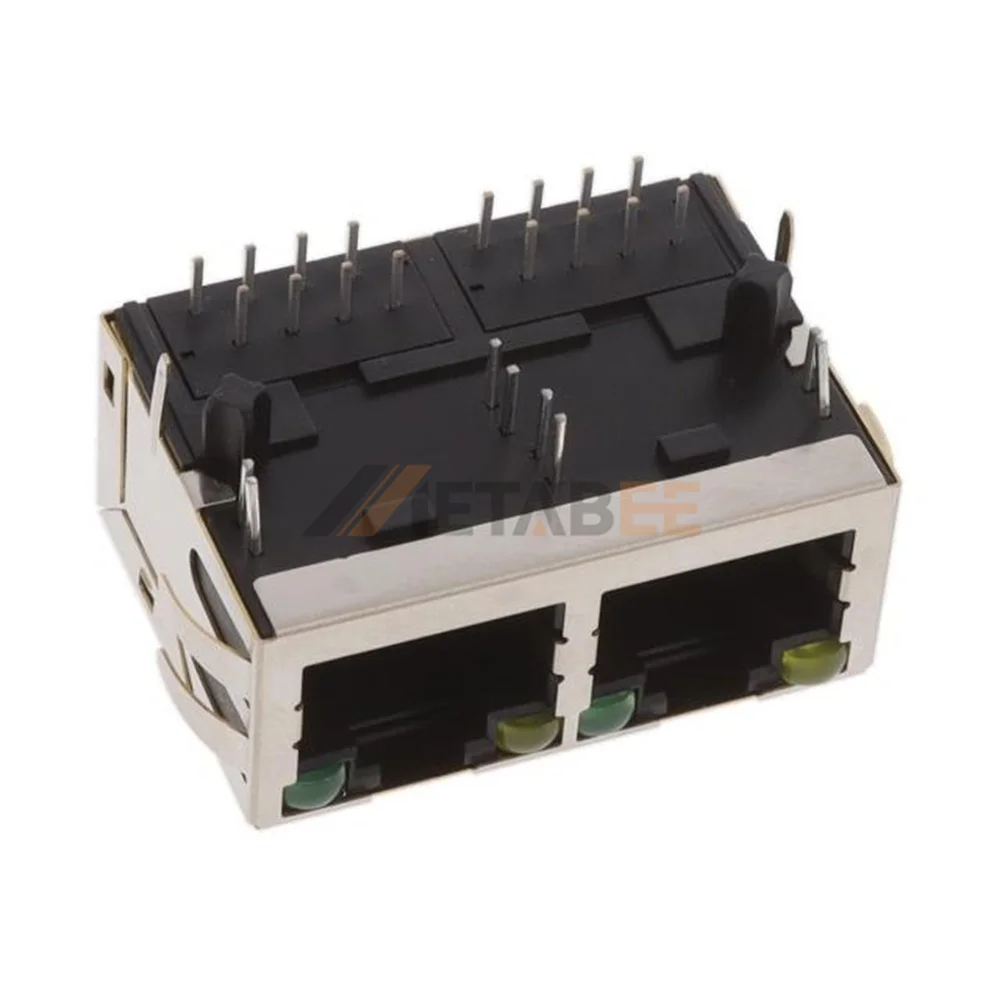

The Dual RJ45 with Magnetics is a shielded 1×2 multi-port network interface developed for industrial Ethernet applications. Reliable 10/100 Base-T data transmission remains consistent across a wide -40°C to +85°C temperature range. A robust nickel-plated brass shield encloses the black thermoplastic housing to reject electromagnetic interference effectively. Precise component positioning on the PCB relies on the integrated board guide and solder retention features. Visual link status is tracked through built-in yellow and green LED indicators positioned in the tab-up profile. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20 milliohms in this dual RJ45 with magnetics. Secure mechanical termination uses a right-angle through hole configuration.
Key Features
- 10/100 Base-T Performance: Supports reliable Fast Ethernet data transmission speeds.
- 1×2 Multi-Port Design: Connects two network devices using a single module.
- Industrial Temperature Range: Operates reliably across extreme environments from -40°C to +85°C.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Secure THT Mounting: Integrated board guide ensures precise PCB alignment.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88TUX1-FSD-PG-VLG-M5C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
