Introduction:
This dip pogo pin is a vertical spring-loaded connector designed for secure through-hole mounting on a PCB. It features a compact initial height of 4.5mm and handles a 1A rated current at 12V DC. The plunger and barrel are crafted from Lead Free Copper with a 3u” Gold plating to ensure a low contact resistance of 20 mohms. A SUS304 spring provides a consistent force of 90±20gf over a 1mm working stroke to maintain reliable conductivity. This component acts as a durable signal link for modular electronics and industrial devices requiring high-cycle performance up to 1,000,000 cycles.
Key Features
- Secure Mounting: Vertical DIP design ensures strong mechanical board retention.
- Compact Height: Initial 5.1mm height optimizes space in low-profile electronics.
- Gold Plated: 3u” Gold plating maintains low resistance and conductivity.
- Precise Stroke: Reliable 0.3mm working stroke for stable signal contact.
- Durable Spring: SUS spring provides consistent 60gf pressure over 10,000 cycles.
Main Specifications:
General Information:
| Product No.: | PH-MVP-2431-PP-TR | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 5.1mm | |
| Working Stroke (mm): | 0.3mm | |
| Spring Force: | 60±20gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 1A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 30mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, 3u” Gold plated over Nickel | |
| Barrel Material: | Brass, 3u” Gold plated over Nickel | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins

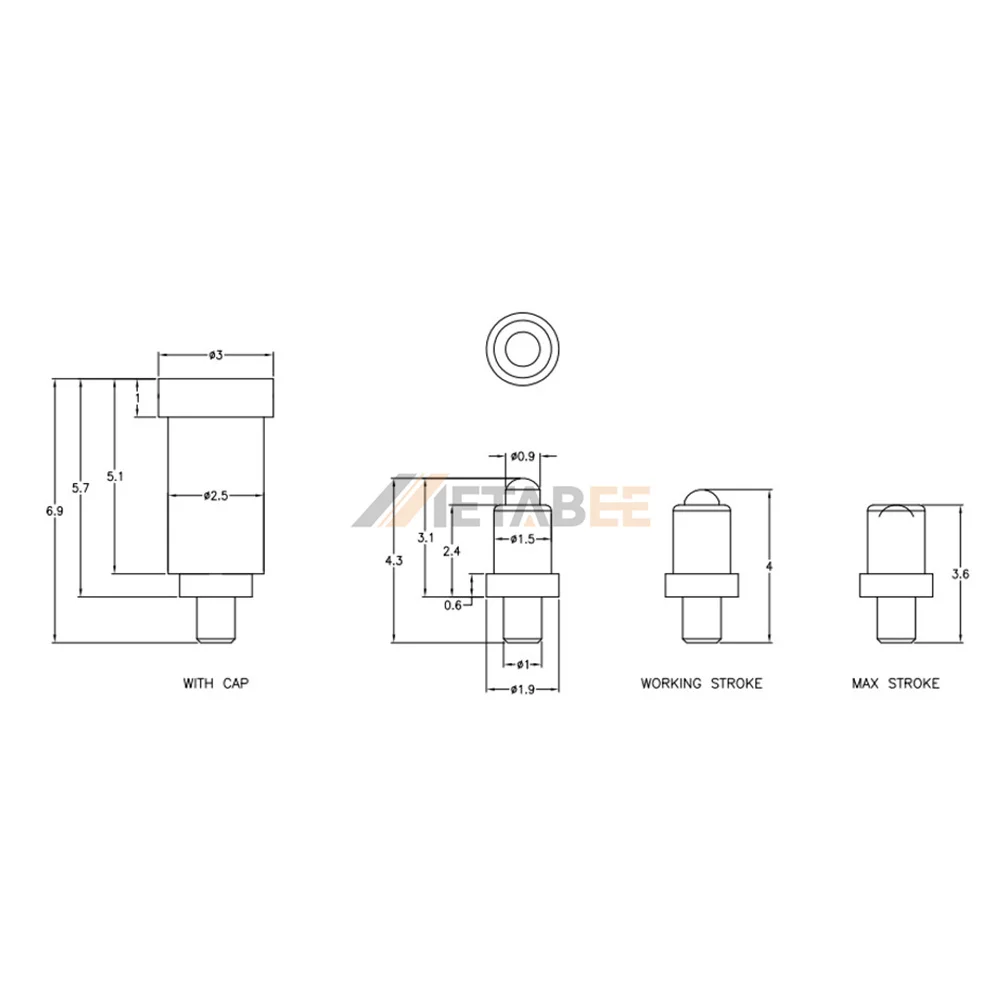

Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
