D-type Heavy Duty Connector Contact for 10A Inserts, Female Crimp Terminal, Silver Plated Copper Alloy
Introduction:
This D-type heavy duty connector contact is designed for 10A inserts and uses a female crimp terminal structure. The contact is made of copper alloy and finished with silver plating to support stable conductivity and low contact resistance. The crimp area provides firm wire retention and keeps electrical flow steady. The silver surface helps reduce oxidation and maintains a clean mating interface. The terminal offers consistent mating strength and supports reliable performance in heavy duty connector systems.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CDF-0.37 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Female | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 10A | |
| Contact resistance: | ≤3mΩ | |
| Wire Gauge: | 0.14-0.37 mm² (AWG 26-22) | |
| Stripping length: | 8 mm |

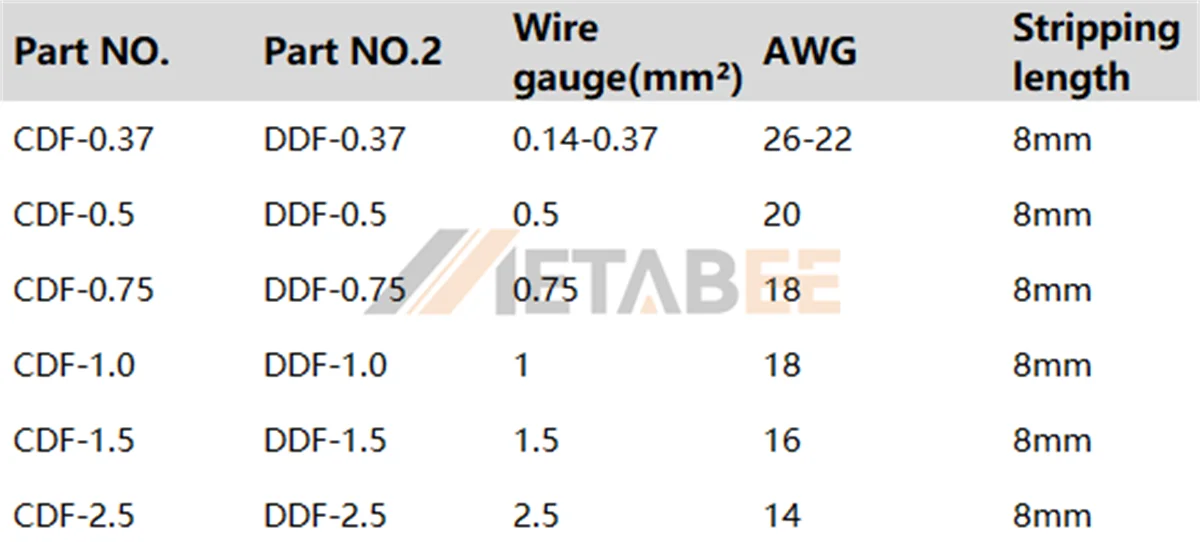

Wire Gauge Options for Silver-Plated and Gold-Plated Male Contacts

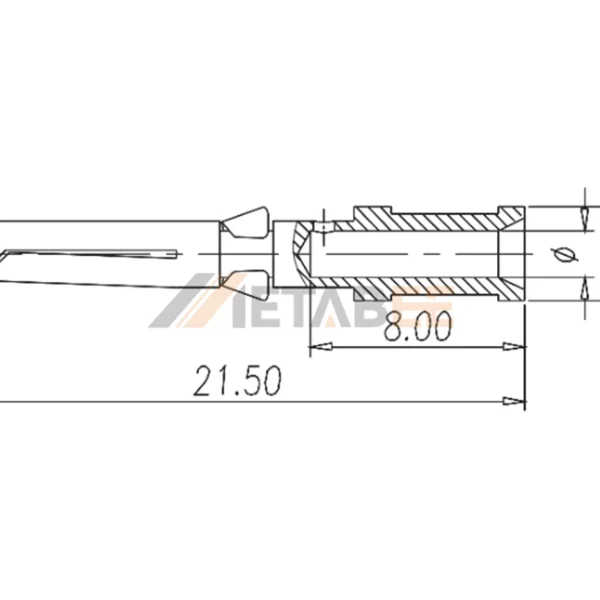

Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
