Customized Single Port Vertical RJ45 Modular Jack, 8P8C, Shielded, PCB Mount, Tab-Up
Introduction:
This is a single port vertical RJ45 modular jack designed for stable PCB mount applications requiring top-entry connectivity. A nickel-plated brass shell provides a full shield to block electromagnetic interference and safeguard signal integrity in busy data environments. Constructed from durable PBT housing, the component maintains a high insulation resistance of 1000MΩ and supports a current rating of 1.5A. The Phosphor Bronze contacts feature Gold over Nickel plating to ensure superior conductivity within a temperature range of -40°C to +85°C. Utilizing a Tab-Up vertical orientation, the jack saves board surface area while offering various integrated LED color options for visual status monitoring. It effectively withstands dielectric voltages up to 1500 VDC to maintain high electrical safety. Technicians utilize this reliable interface for industrial automation systems and data networking hardware requiring vertical board-to-cable links.
Key Features
- Vertical Orientation: Optimizes top-entry mounting for compact PCB layouts.
- Full Shielding: Blocks external interference using a nickel-plated brass shell.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Integrated LEDs: Offers multiple color combinations for instant status diagnostics.
- Industrial Temperature: Performs reliably from -40°C up to +85°C environments.
Main Specifications:
General Information:

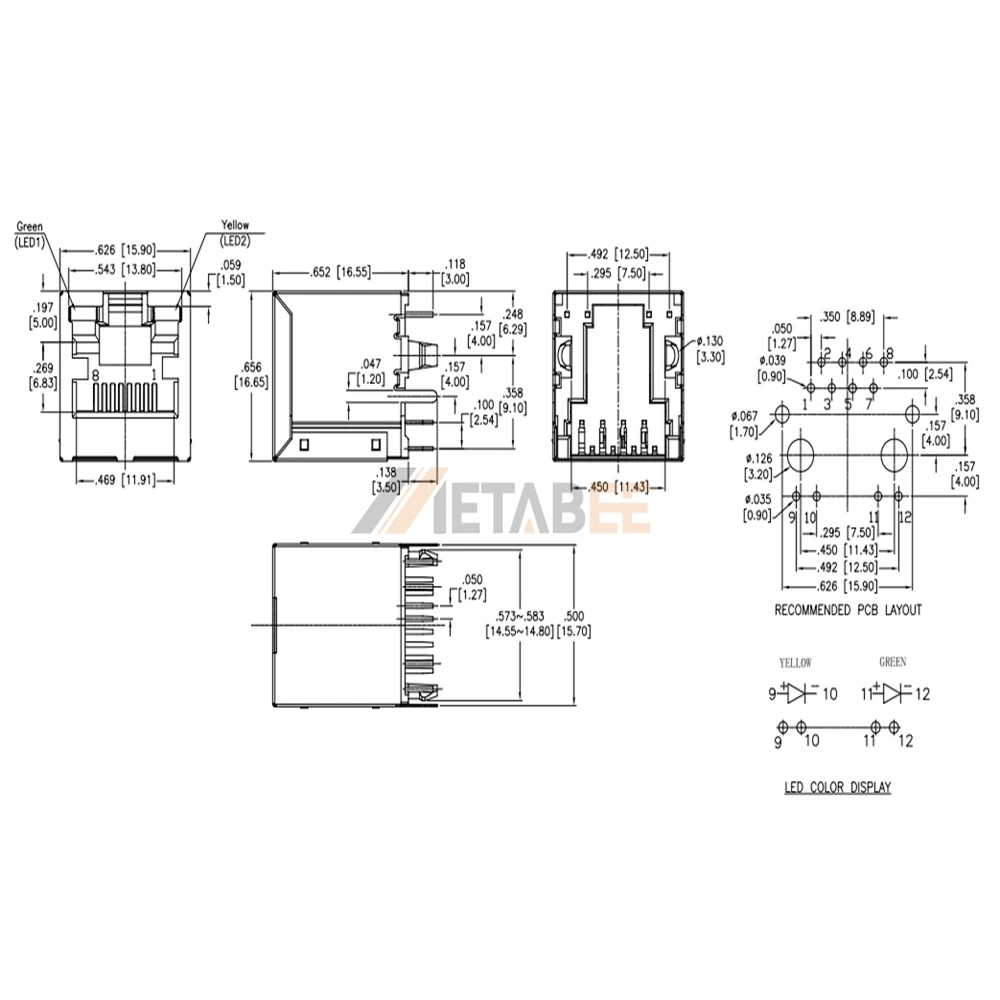

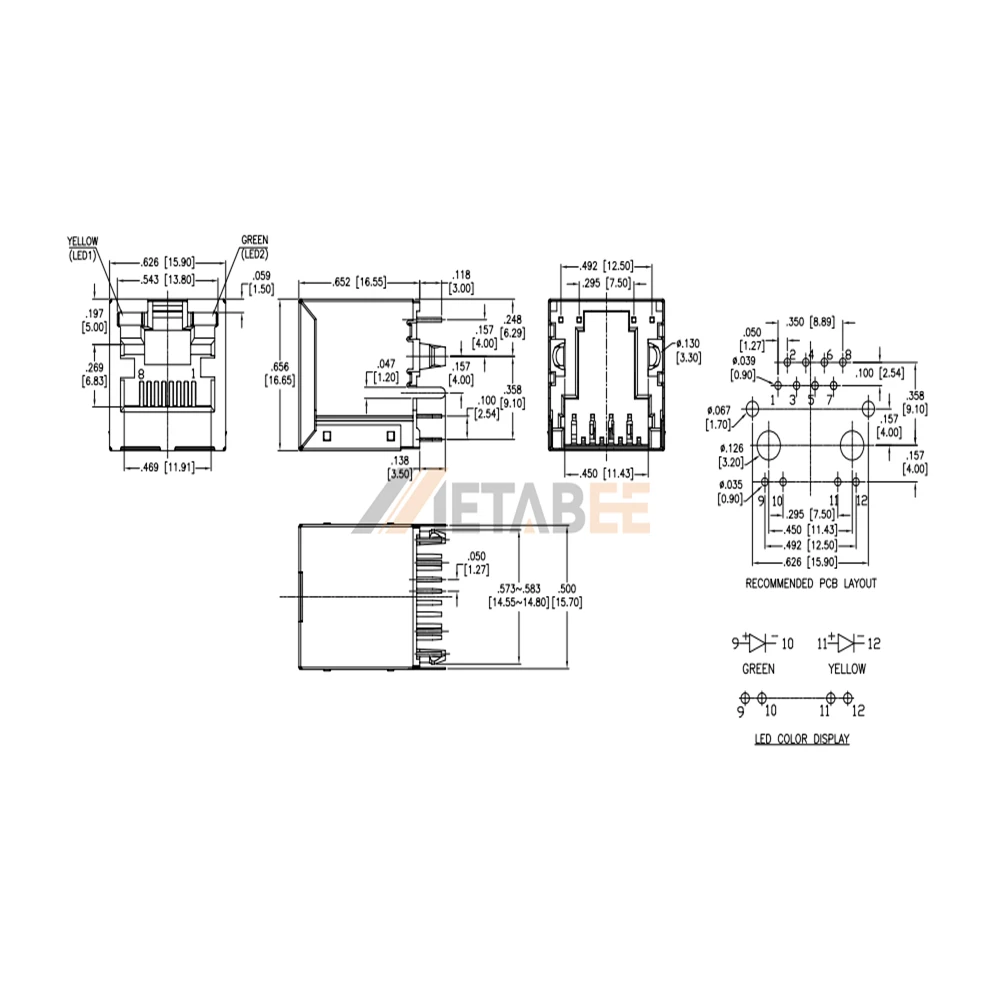

| Product No.: | MTJ-88AFX1-FSI-LG, MTJ-88AFX1-FSI-LH | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC RMS for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated/Copper Alloy |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
