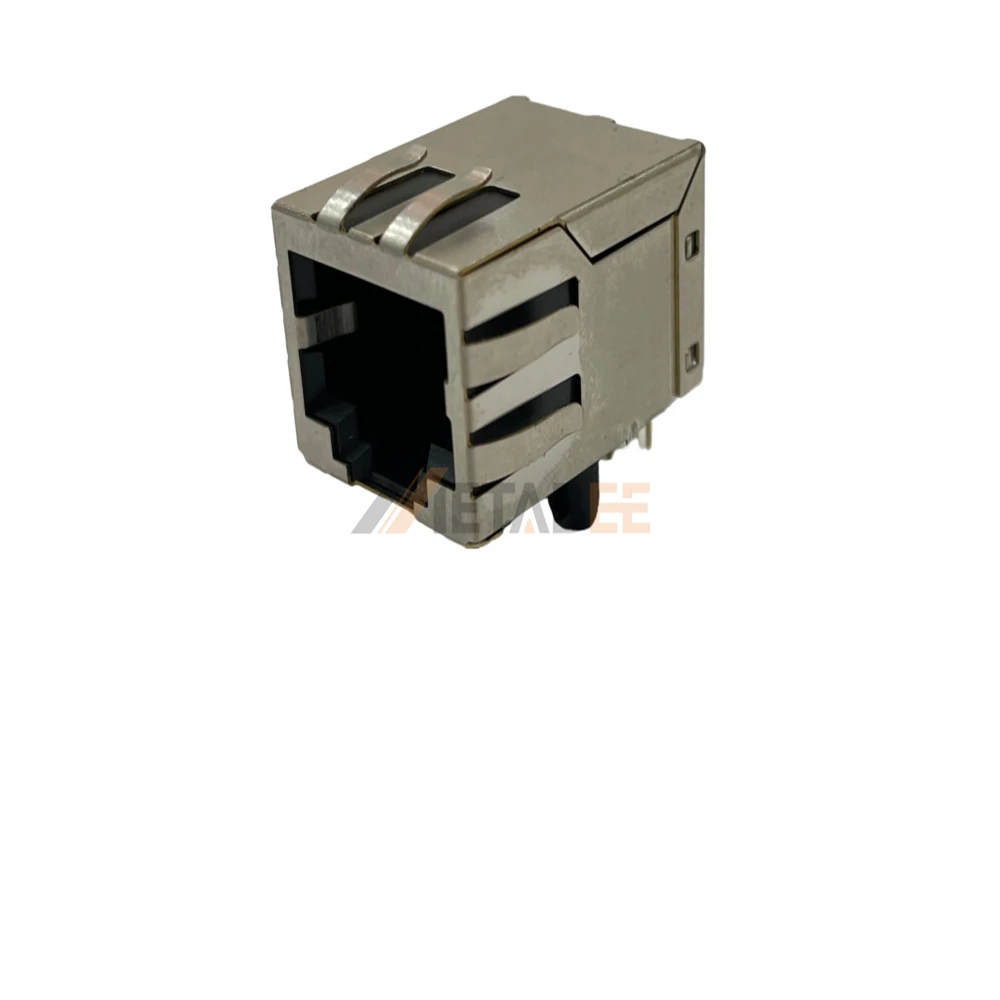

China Single Port RJ45 Jack Female Connector, 8P8C, Shielded, Tab-Down, Through Hole, No LED
Introduction:
This is a single port China RJ45 jack female connector designed for stable through hole mounting on printed circuit boards. It features a robust nickel-plated brass shell that provides full EMI shielding to maintain high signal integrity against external electromagnetic noise. The housing is made of durable black PBT that withstands industrial soldering temperatures while offering 1000MΩ Min insulation resistance. Phosphor Bronze contacts with Gold over Nickel plating ensure a consistent 1.5A current rating for stable data transmission. Utilizing a Tab-Down right angle configuration, the component effectively optimizes board space across an industrial temperature range of -40°C to +85°C. Technicians utilize this modular interface for networking gear and telecommunication hardware requiring secure shielded 8P8C connectivity.
Key Features
- Full EMI Shielding: Metallic brass shell blocks external signal interference effectively.
- 8P8C Modular Interface: Provides standard connectivity for various data networking systems.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal integrity.
- Durable PBT Housing: Maintains structural integrity during industrial wave soldering.
- Tab-Down Configuration: Optimizes vertical space for specialized PCB layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88GX1-FSD-PG6 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
