Introduction:
The China multiple port RJ45 female connector provides a robust 1×2 ganged interface for high-density networking systems. Consistent performance is achieved across a wide industrial temperature range from -40C up to +105C. A nickel plated copper alloy shield offers full enclosure to block electromagnetic interference effectively during operation. Mechanical stability relies on the black hi-temp thermoplastic housing and right angle through hole termination. Gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 30 miliohms. Space-conscious board designs benefit from the streamlined tab-up profile which functions without built-in LED indicators. Typical uses for this component include network switches, server motherboards, and industrial control equipment.
Key Features
- Ganged 1×2 configuration: Connects two network links side-by-side efficiently.
- Industrial temperature range: Operates reliably from -40C up to +70C.
- Full brass shielding: Blocks severe electromagnetic interference for clear signals.
- Hi-temp thermoplastic housing: Withstands demanding assembly and thermal stress.
- Low contact resistance: Gold plating ensures strictly under 30 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88ARX1-FSW-EMI-Y-HT-HF | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +105°C | |
| Flammability Rating: | UL 94 V-0 |

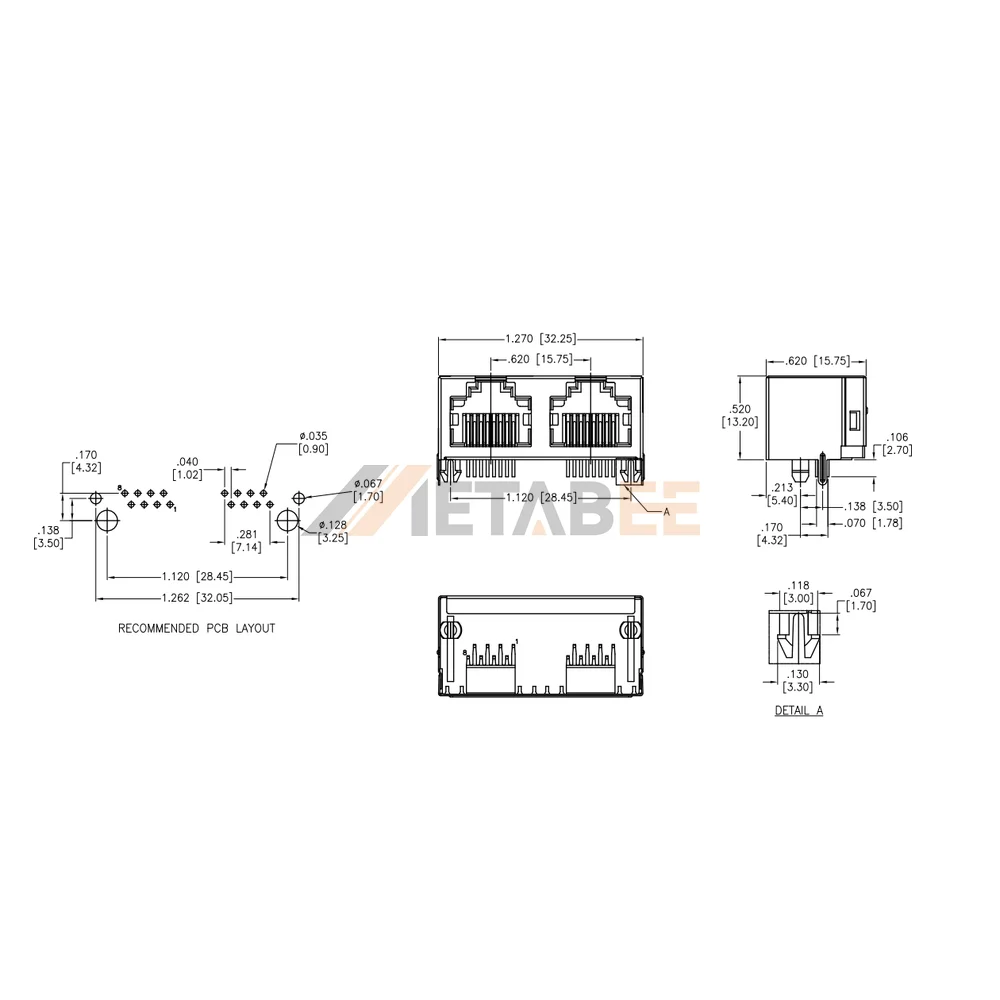

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
