Introduction:
The china ganged dual port rj45 female connector is a 1×2 modular network interface designed for high-density industrial PCB applications. Standard 8P8C ports facilitate side-by-side connectivity in a compact right-angle footprint. Reliable operation is maintained throughout the industrial -40C ~ +85C temperature range for severe environments. A robust nickel-plated brass shield encloses the black PBT insulator to reject electromagnetic interference effectively. Visual link tracking relies on integrated yellow and green LED indicators positioned within the tab-up profile. Gold over nickel plating on phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms. This component is frequently utilized in network switches, server Motherboards, and industrial telecommunication systems.
Key Features
- Ganged 1×2 configuration: Connects two Ethernet devices side-by-side efficiently.
- Industrial temperature range: Operates reliably between -40C and +85C.
- Full brass shielding: Blocks severe electromagnetic interference for signals.
- Tab-up design: Optimizes board space for dense layout configurations.
- Integrated status LEDs: Yellow and green indicators track network activity.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88ARX1-FSM-PG-LG | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

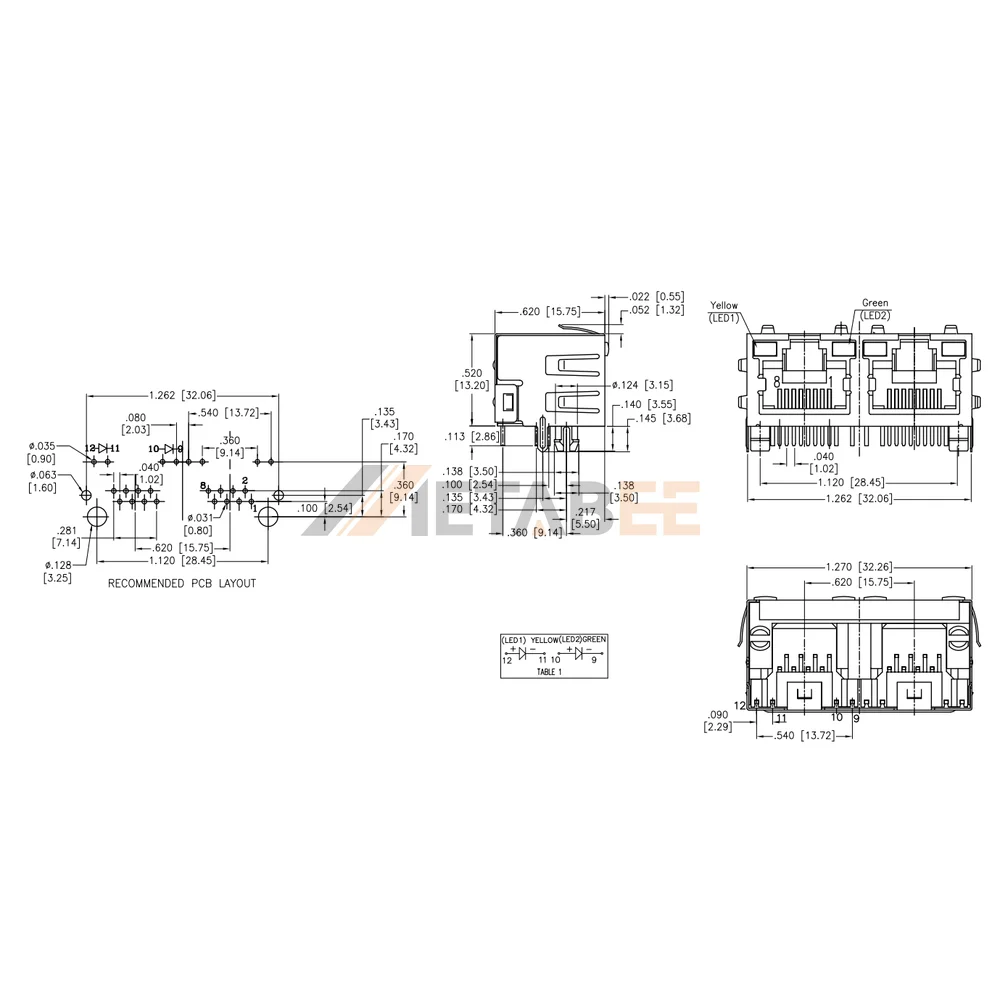

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
