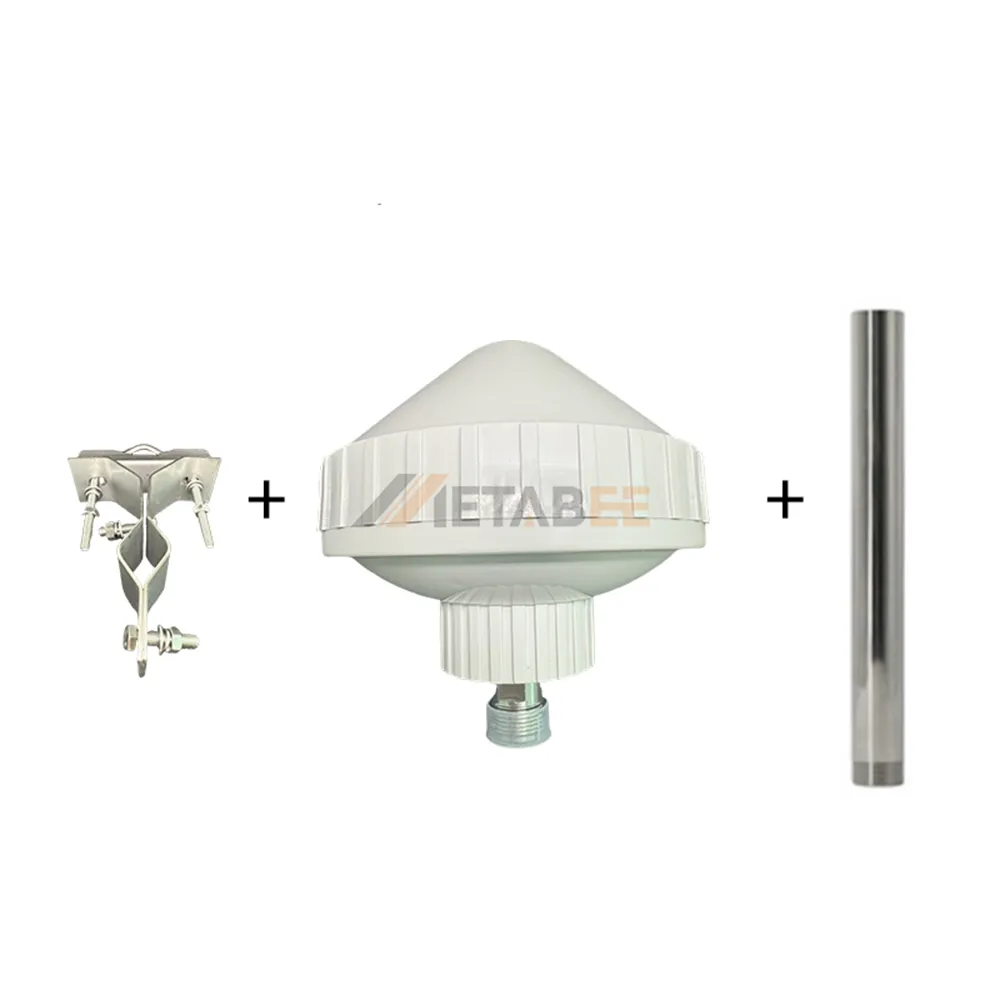

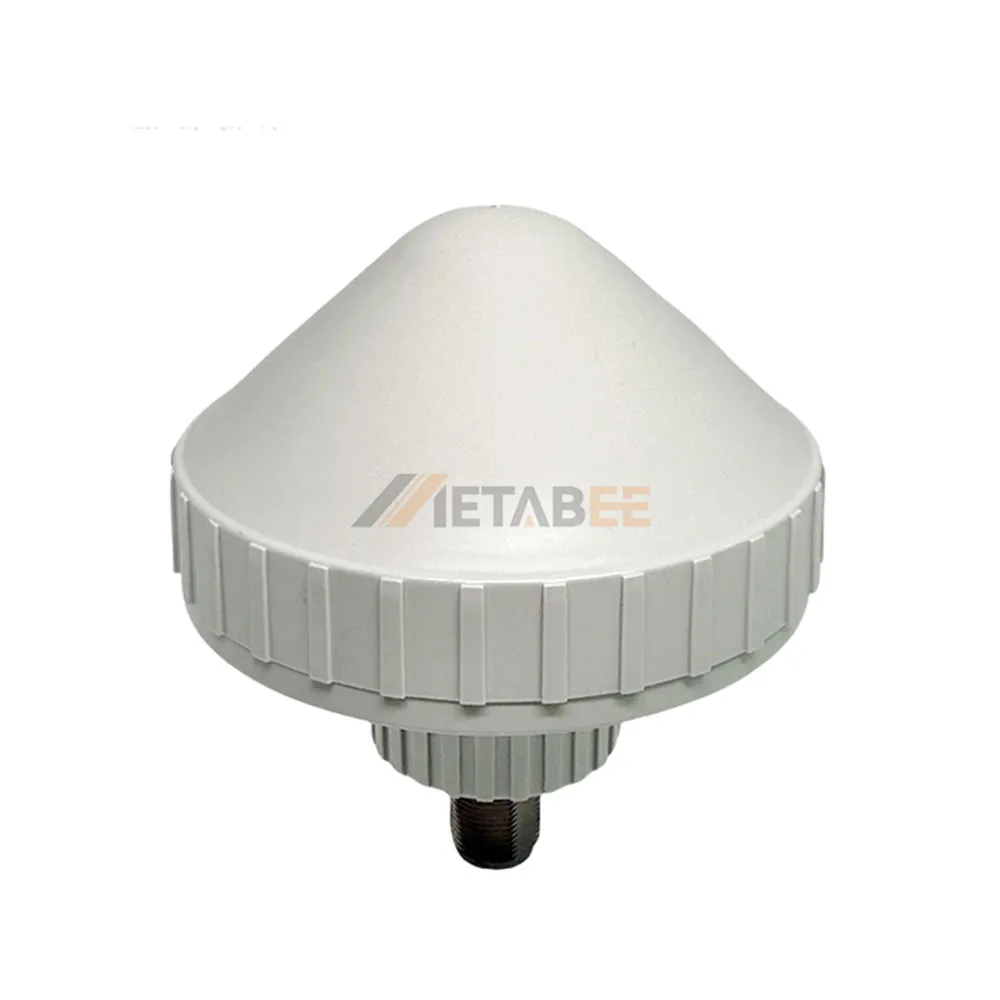

Active Omni-Directional GPS/GNSS Antenna,1575.42 MHz, 38dBi, N Female, IP67
Introduction:
The Active Omni-Directional GPS/GNSS Antenna is designed for high-precision satellite positioning and navigation applications. Operating at 1575.42 MHz, this active antenna provides excellent GPS/GNSS signal reception with a high gain of 38dBi, ensuring stable and accurate positioning performance in challenging environments. Its RHCP (Right-Hand Circular Polarization) design enhances satellite signal acquisition while reducing multipath interference.
Featuring an omni-directional radiation pattern, the antenna delivers reliable 360-degree signal coverage for vehicle tracking, fleet management, surveying systems, marine navigation, and industrial IoT applications. With a low VSWR of ≤1.5 and 50 Ohm impedance, it ensures efficient signal transmission and minimized signal loss. The rugged IP67-rated enclosure protects against water, dust, and harsh outdoor conditions, while the N Female connector offers secure and durable RF connectivity.
Built for demanding environments, the antenna operates reliably within a temperature range of -30°C to +75°C, making it suitable for both indoor and outdoor installations.
Key Features
- Active GPS/GNSS antenna operating at 1575.42 MHz
- High 38dBi gain for enhanced signal reception
- RHCP polarization for improved satellite tracking
- Omni-directional coverage for stable 360° reception
- IP67 waterproof and dustproof rugged design
- N Female connector with 50 Ohm impedance
General Information:
| Product No.: | YC-GP00061 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |

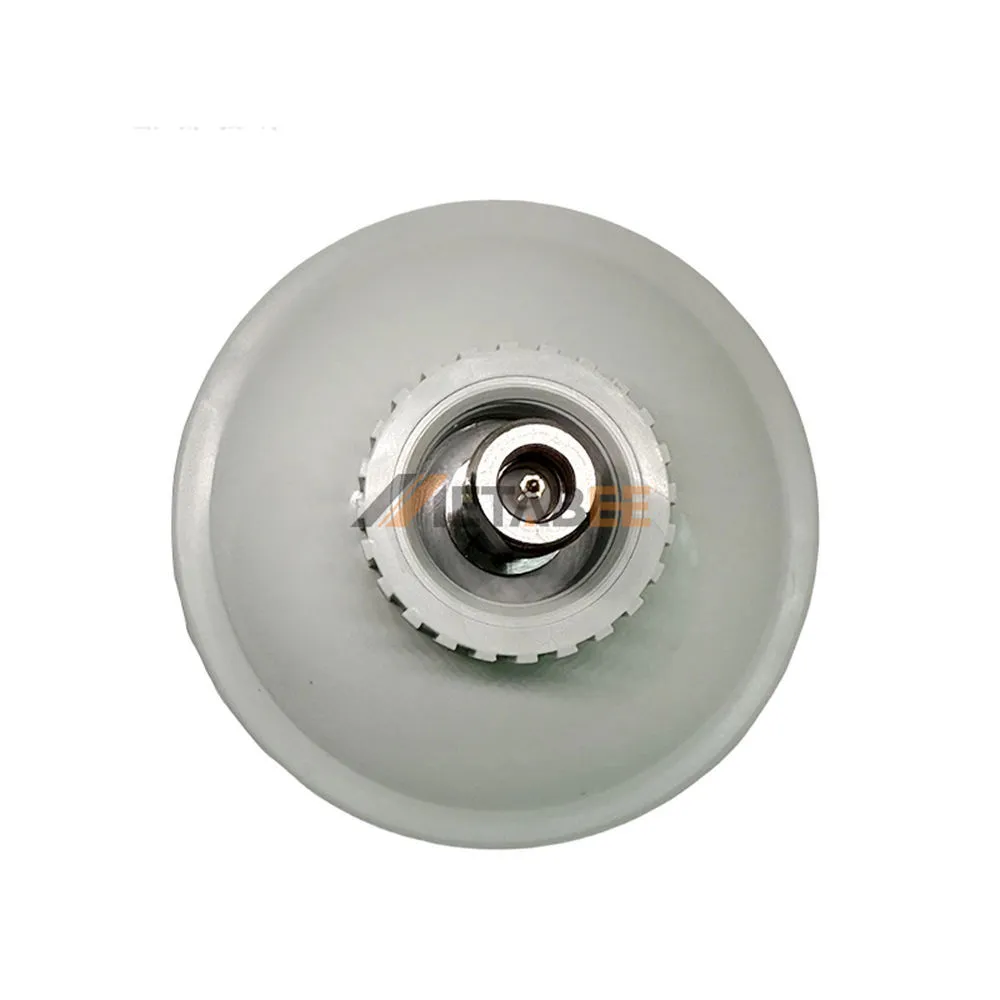

| Connector Type: | N-type Female | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 38±2dBi | |
| VSWR: | ≤1.5 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this Active Omni-Directional GPS/GNSS Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
