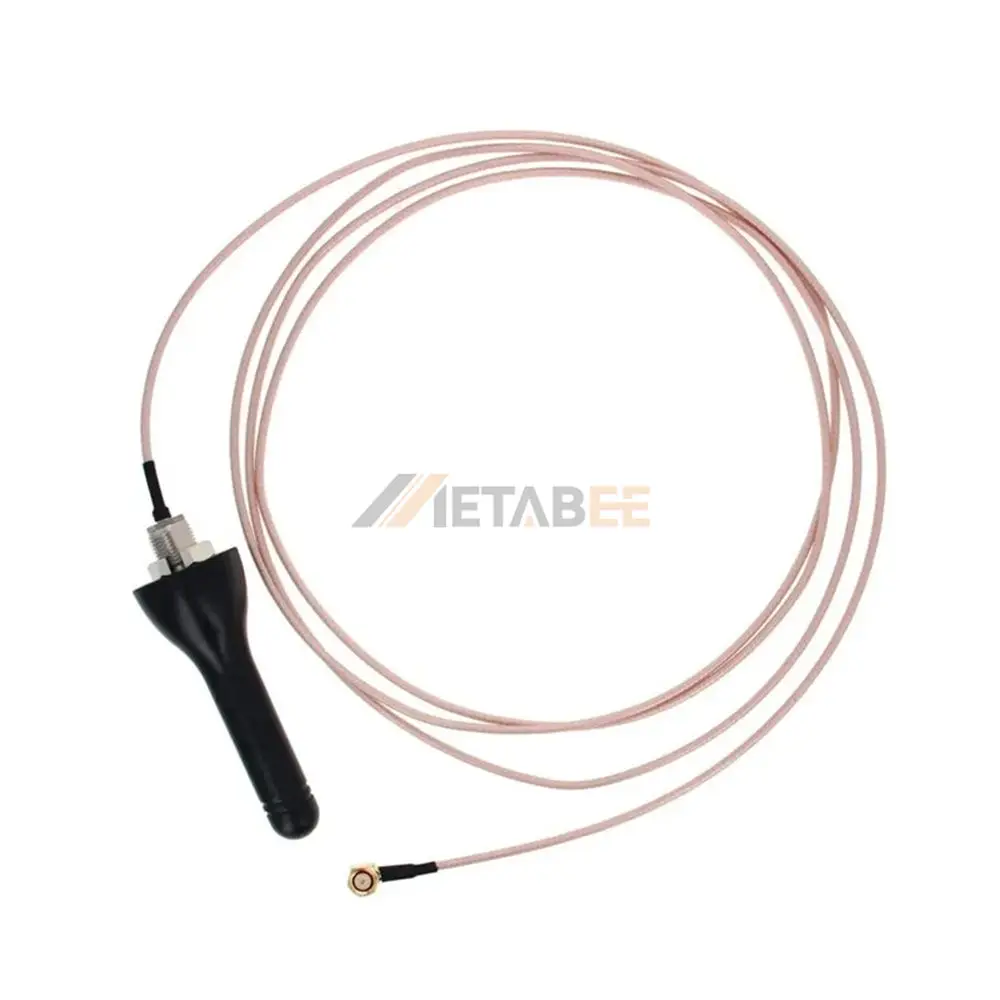

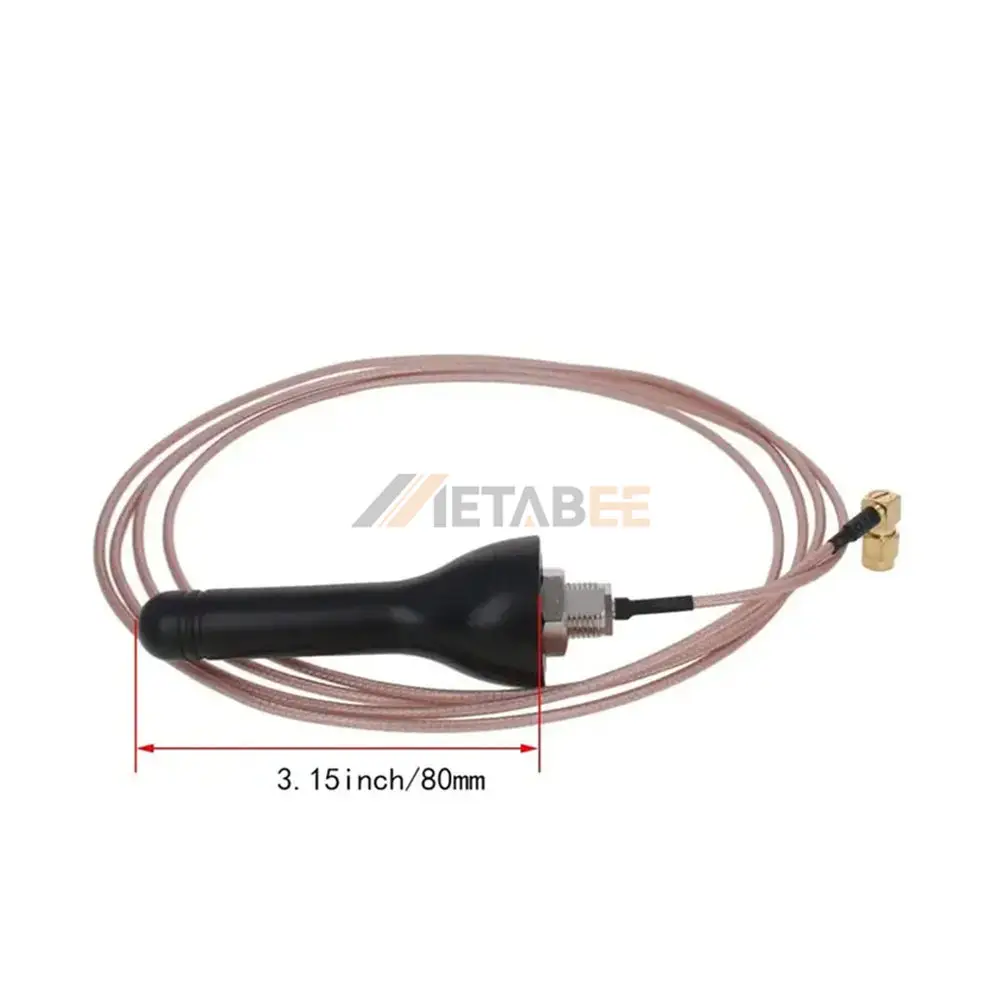

Active GPS L1-Band Antenna, SMA Male with RG316 Cable, 1575.42 MHz, 4.5dBi, IP65
Introduction:
Enhance your GPS L1-Band system with our Active GPS L1-Band Antenna, meticulously engineered for superior signal acquisition and unwavering stability. This active antenna provides amplified and precise positioning data, crucial for demanding applications in various environmental conditions. Its omni-directional radiation pattern ensures comprehensive coverage, making it an optimal solution for critical navigation and tracking systems where consistent and accurate connectivity is paramount.
Operating specifically at 1575.42 MHz, this antenna delivers a robust 4.5dBi gain, optimized for exceptional signal clarity and strength within the GPS L1 spectrum. With a Voltage Standing Wave Ratio (VSWR) of ≤1.92 and vertical polarization, it minimizes signal loss while maximizing operational efficiency. The design supports a maximum input power of 50W and maintains a standard 50 Ohm impedance, ensuring broad compatibility with a range of GPS devices. Connectivity is reliably managed via an SMA Male connector with a durable RG316 cable. The IP65 rating provides comprehensive protection against dust and water jets, ensuring consistent performance across an operating temperature range of -30 °C to 75 °C.
Key Features
- Active GPS L1-Band: Enhanced signal reception at 1575.42 MHz for superior accuracy.
- High 4.5dBi Gain: Provides robust signal amplification and stability.
- Omni-directional Coverage: Ensures consistent signal acquisition from all directions.
- Durable IP65 Rating: Protects against dust and water ingress for outdoor reliability.
- Wide Operating Temperature: Functions effectively from -30 °C to 75 °C.
- SMA Male with RG316 Cable: Offers secure and efficient connectivity.
General Information:
| Product No.: | YC-GP00028 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA or Customized | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP65 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 4.5dBi | |
| VSWR: | ≦1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this Active GPS L1-Band Antenna, SMA Male, 4.5dBi,:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
