A-type Heavy Duty Connector Contact for 5A HM Inserts, Male Terminal, Silver Plated Copper Alloy
Introduction:
This A-type heavy duty connector contact is designed for 5A HM inserts and uses a male terminal structure. The pin is made from copper alloy and finished with silver plating to support stable conductivity and low contact resistance. The crimp termination allows firm wire attachment and helps maintain steady electrical performance. The contact surface offers reliable mating and consistent insertion force. The silver layer helps control oxidation and keeps the interface stable during regular operation.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CAM-08 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Male | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 5A | |
| Contact resistance: | ≤3 mΩ | |
| Wire Gauge: | 0.08-0.21 mm² (AWG28-24) | |
| Stripping length: | 5 mm |

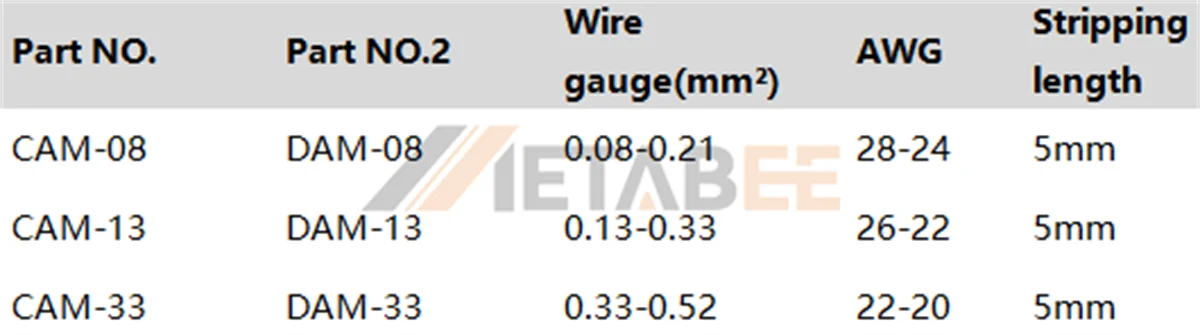

Wire Gauge Options

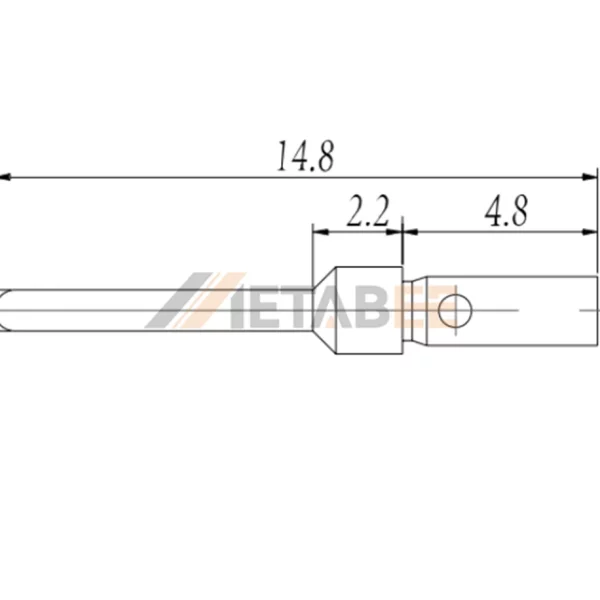

Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
