90 Degree RJ45 8P8C Shielded Modular Jack Connector, One Port, Shielded, Tab-Down, Through Hole, No LED
Introduction:
This is a single port 90 degree RJ45 8P8C shielded modular jack connector designed for stable through hole mounting on networking PCBs. It features a robust nickel-plated brass shell that provides full EMI shielding to safeguard signal integrity in busy data environments. The durable black PBT housing maintains high structural strength during soldering while offering a superior insulation resistance of 1000MΩ Min. Utilizing Phosphor Bronze contacts with Gold over Nickel plating, the unit ensures high conductivity and a consistent 1.5A current rating. The Tab-Down right angle configuration effectively optimizes vertical clearance across an industrial temperature range of -40°C to +85°C. Technicians utilize these 8p8c modular connector jacks for industrial automation and telecommunication hardware requiring secure shielded links.
Key Features
- Full EMI Shielding: Metallic brass shell effectively blocks external signal interference.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- High Insulation Resistance: Maintains 1000MΩ for enhanced electrical safety.
- Durable PBT Housing: Performs reliably between -40°C and +85°C.
- 8P8C Modular Interface: Provides standard shielded connectivity for various systems.
Main Specifications:
General Information:
| Product No.: | MTJ-88GX1-FSB | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 35mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

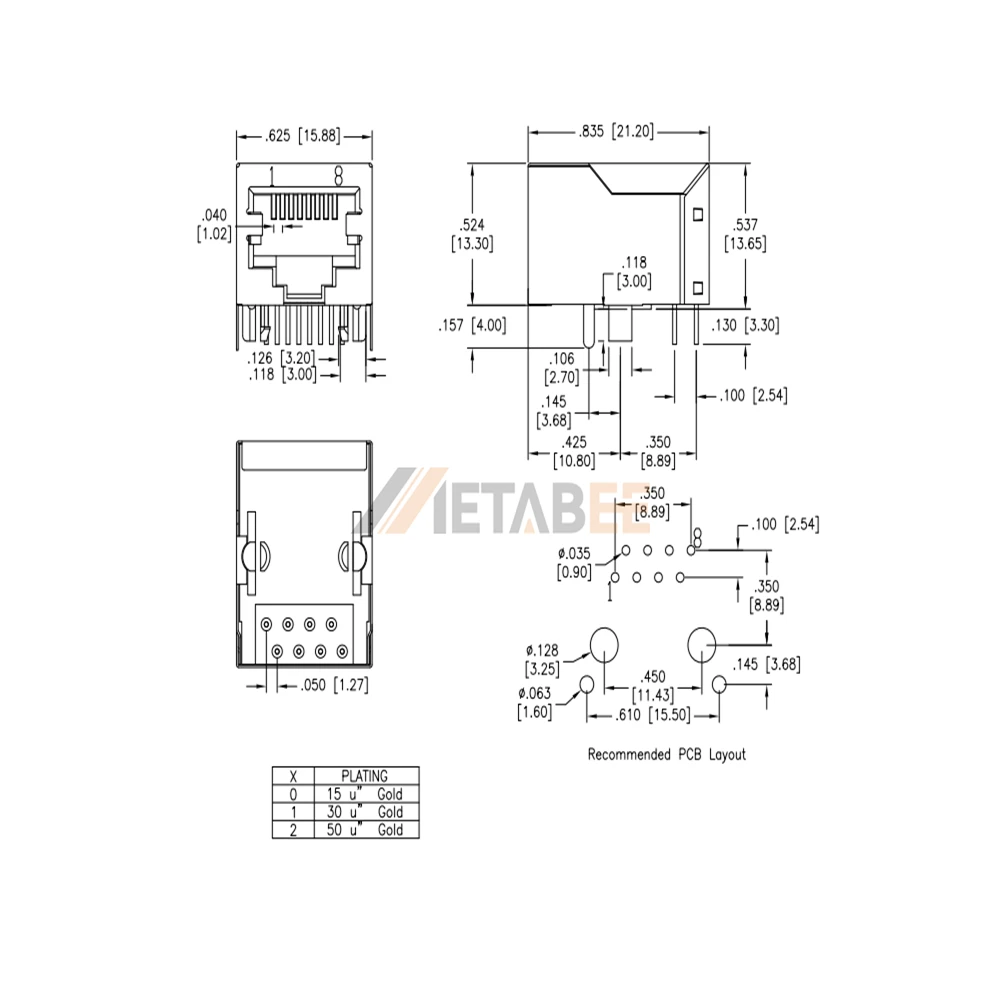

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
