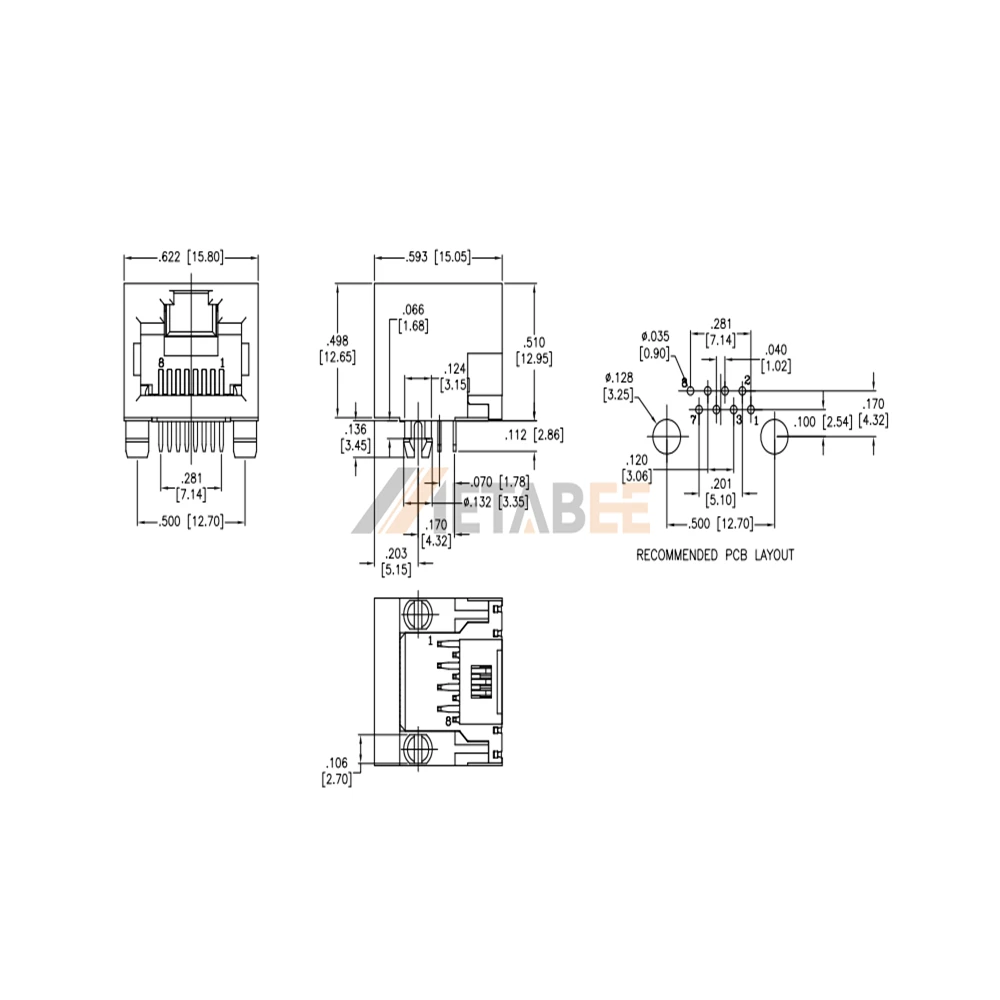

8P8C Unshielded Modular RJ45 Socket Jack, 1 Port, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port 8P8C unshielded modular RJ45 socket jack designed for reliable through hole mounting on printed circuit boards. It features a glass-reinforced PBT housing in a distinctive Yellow P114C Pantone color, helping installers distinguish specific signal ports during hardware assembly. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure superior conductivity and a 1.5 A current rating. Utilizing a Tab-Up right angle configuration, the component effectively saves vertical clearance while maintaining a high insulation resistance of 1000 MΩ. Technicians utilize this modular interface for data networking hardware and telecommunication gear requiring unshielded connectivity across a wide temperature range of -40°C to +85°C.
Key Features
- Yellow Pantone Housing: P114C color assists with easy port identification.
- 8P8C Modular Interface: Provides standard connectivity for various networking systems.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
- Glass Reinforced PBT: High strength housing withstands intense industrial assembly.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-P114C | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC/AC peak for 1 minute |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced | |
| Insulator Color: | Yellow, P114C Pantone | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
