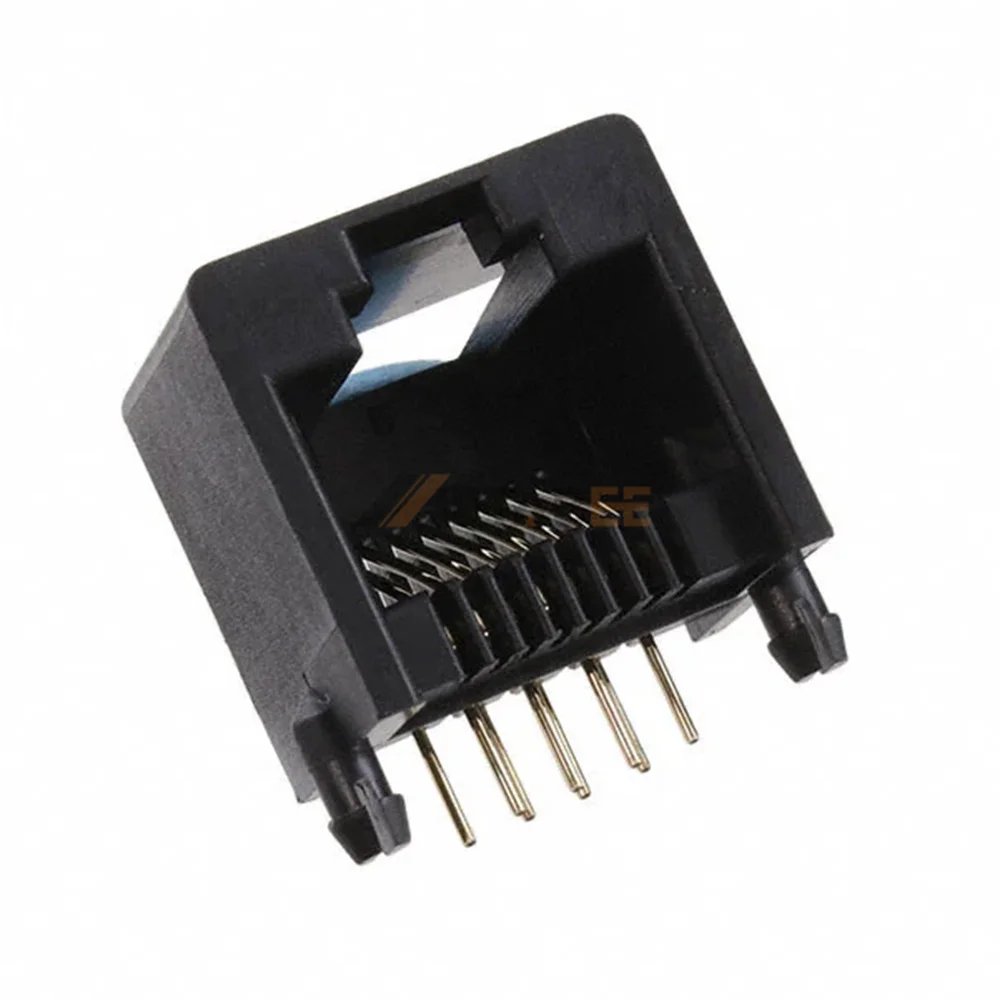

8P8C RJ45 PCB Mount Jack Ethernet Connector, Unshielded, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port 8P8C RJ45 PCB mount jack designed for efficient through hole soldering on networking boards. It features a black PBT housing that provides excellent thermal stability and a high insulation resistance of 1000MΩ Min. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure superior conductivity and a standard 1.5A current rating. By adopting a Tab-Up right angle configuration, this unshielded connector provides a secure mechanical fit while effectively saving vertical clearance on the circuit board. The unit effectively withstands a dielectric voltage up to 1500 VDC to maintain safe electrical links across a temperature range of -40°C to +85°C. Technicians utilize this modular interface for standard telecommunication gear and data networking hardware.
Key Features
- Tab-Up Configuration: Optimizes vertical space for specialized PCB layouts.
- 8P8C RJ45 Interface: Provides standard connectivity for various networking systems.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- High Insulation Resistance: Maintains 1000MΩ for enhanced electrical safety.
- Durable PBT Housing: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-882BX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
