Introduction:
The china 8 port rj45 connector is a high-density 1×8 ganged network interface used for large-scale data communication. Eight side-by-side ports facilitate extensive connectivity within a compact right angle footprint. Consistent performance is maintained throughout the industrial -40C ~ +85C temperature range for severe environments. A robust nickel plated brass shield encloses the black PBT insulator to reject electromagnetic interference effectively. Every port supports up to 1.5A current and 150VAC RMS voltage for demanding systems. Furthermore, gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms to ensure signal clarity. Stable mechanical alignment on the PCB depends on the right angle through hole termination design. Network switches, telecom servers, and industrial automation hubs frequently utilize this component to optimize board space.
Key Features
- 1×8 Ganged Configuration: Facilitates eight side-by-side Ethernet network links.
- Industrial Temperature Range: Operates reliably from -40C up to +85C.
- Full Metal Shielding: Brass nickel plated housing blocks severe EMI.
- Stable THT Mounting: Right angle termination ensures secure PCB alignment.
- Low Resistance Contacts: Gold plating ensures conductivity below 20 miliohms.

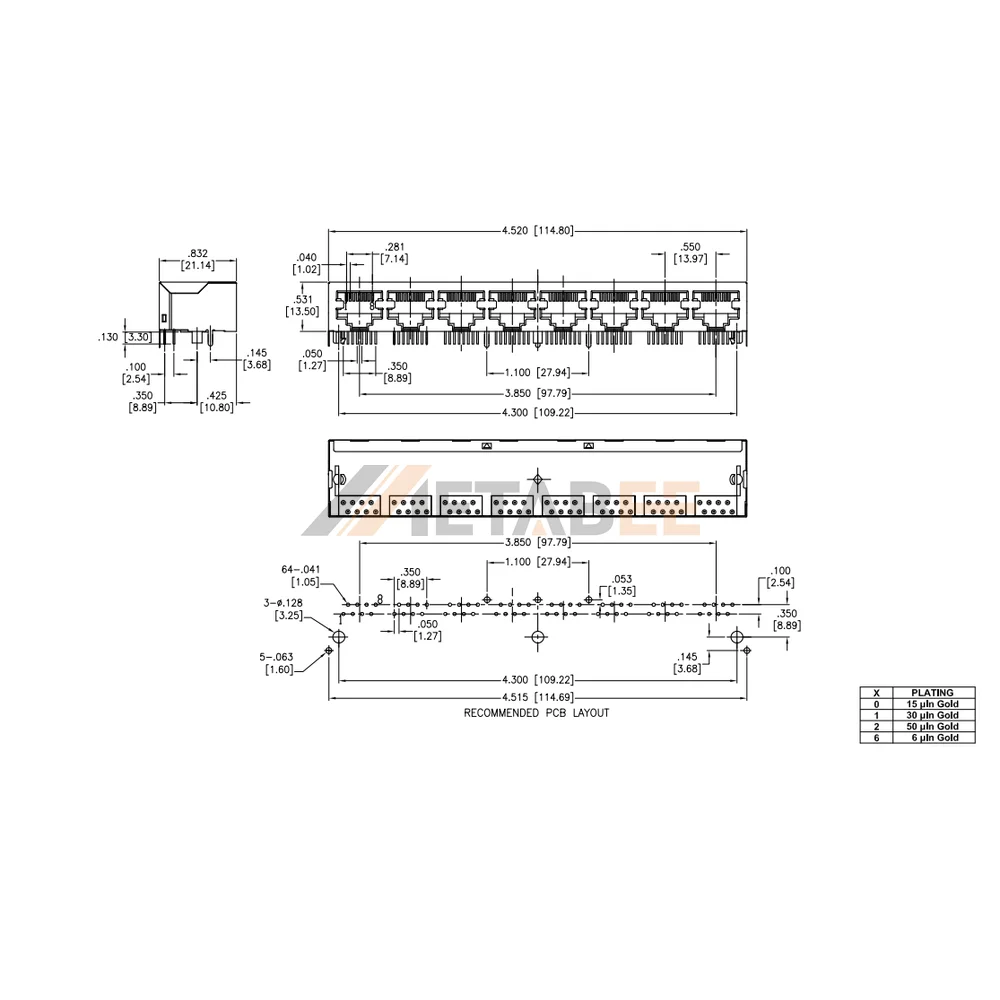

Main Specifications:
General Information:
| Product No.: | MTJG-8-88TX1-FSB | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×8 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
