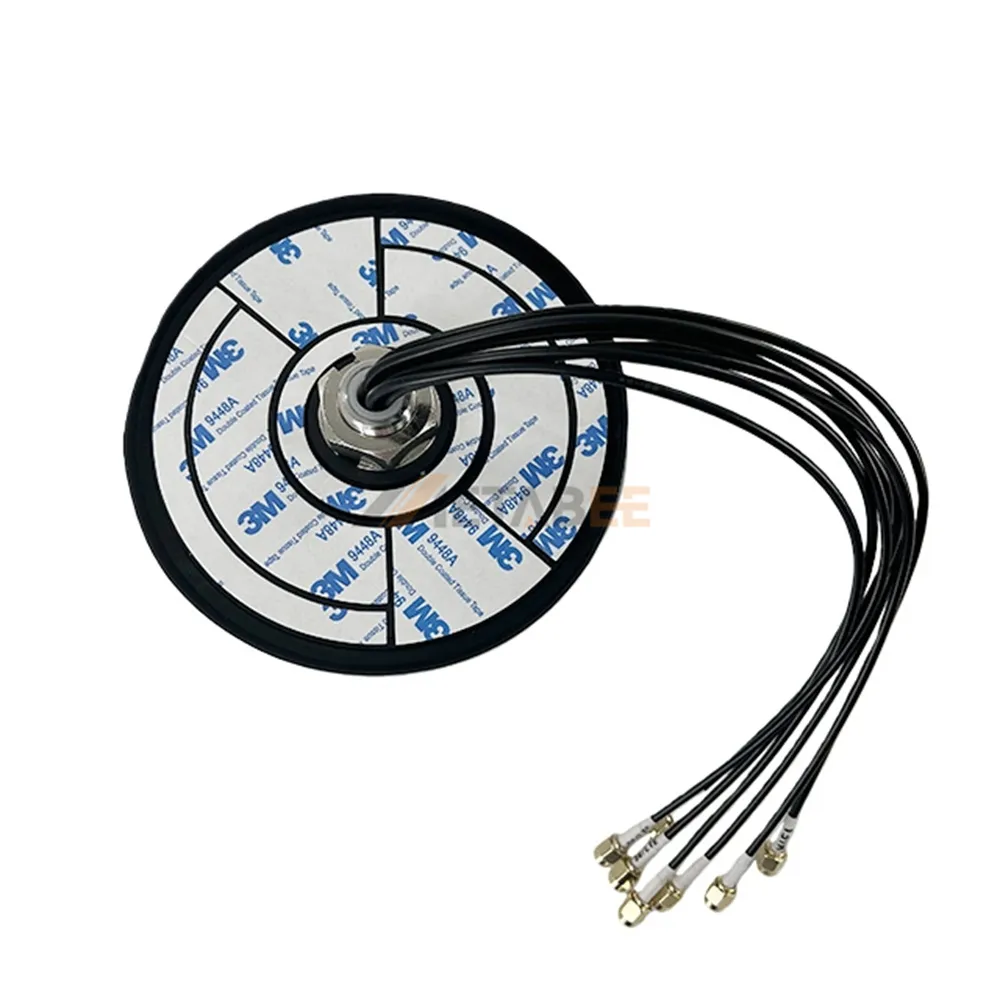

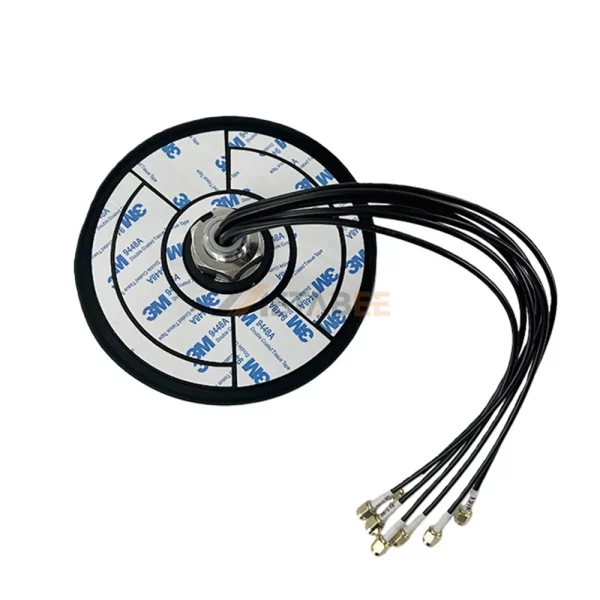

7-in-1 LTE 5G/WiFi/GPS/GSM Combo Antenna, 3/5dBi, 600-6000 MHz, SMA Male, IP67
Introduction:
The 7-in-1 Combo Antenna is a high-performance, multi-functional solution designed for seamless connectivity in the most demanding environments. Engineered to support 5G, LTE, WiFi, GPS, and GSM networks, this versatile antenna covers a wide frequency range from 600-6000 MHz. Its ultra-wideband capability makes it the ideal choice for IoT gateways, fleet management, and smart city infrastructure, where multiple signals must be integrated into a single, compact housing.
Built for durability and precision, the antenna features an IP67-rated waterproof design, ensuring reliable operation in harsh outdoor conditions between -30°C and 70°C. With a 3/5dBi gain and an omni-directional radiation pattern, it provides consistent, 360-degree vertical coverage. The low VSWR (≤1.5) and 50 Ohm impedance guarantee maximum signal efficiency and minimal interference for high-speed data transmission.
Key Features
- 7-in-1 Versatility: Combined 5G, LTE, WiFi, and GPS support in one unit.
- Ultra-Wideband: Covers a broad spectrum from 600 MHz to 6000 MHz.
- Rugged Protection: IP67 rated for complete dust and water resistance.
- High Efficiency: Low VSWR ≤1.5 ensures stable signal integrity.
- Omni-Directional: Provides consistent 360° Vertical Polarization coverage.

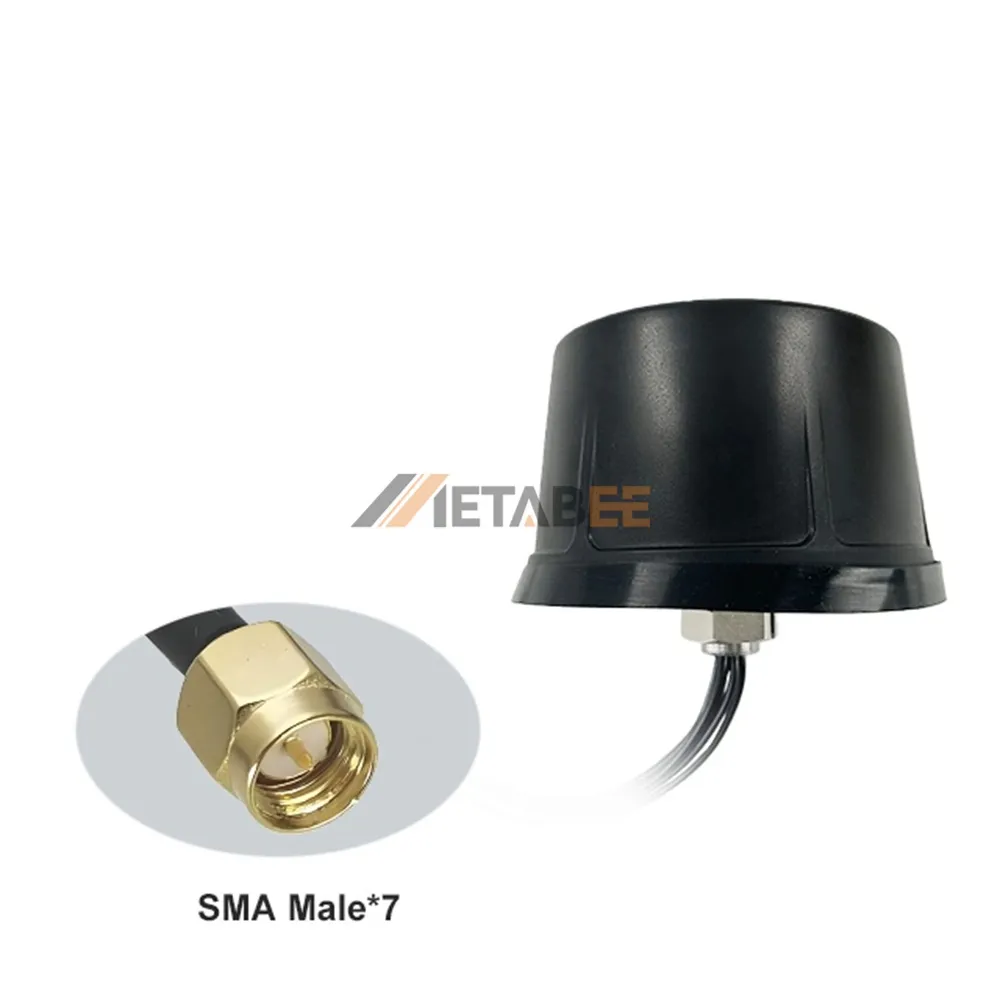

- Universal Interface: Equipped with a standard SMA Male connector for easy setup.
General Information:
| Product No.: | YC-GP00068 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Casing Material | PC | |
| Size: | 140mm x 84mm | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 600-6000 MHz | |
| Gain: | 3/5dBi | |
| VSWR: | ≤1.5 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this 7-in-1 LTE 5G/WiFi/GPS/GSM Combo Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
