5A Right Angle DIP Pogo Pin for PCB Connection, 12V DC, Gold Plated, Through Hole
Introduction:
This DIP pogo pin is a spring-loaded terminal designed to facilitate vertical or horizontal electrical contact on a PCB. It is distinguished by a right angle through-hole design, which allows the connector to be mounted on the side of a board to save vertical clearance while maintaining high mechanical stability. The 5A current capacity is a core attribute, enabling the pin to handle fast charging and power delivery without excessive heat buildup. By utilizing gold-plated brass components, the connector ensures low contact resistance across its 1,000,000 cycle lifespan. This component acts as a reliable interface for power modules and docking stations where space-saving and durability are essential requirements.
Key Features
- Right Angle: Right angle orientation optimizes space for compact boards.
- Long Life: Tested for 1,000,000 cycles ensuring extended service life.
- Gold Plated: Gold plated finish ensures low resistance and conductivity.
- Secure Mounting: Through hole design provides high mechanical retention force.
- Wide Temperature: Reliable performance across -55 to +125 degree range.

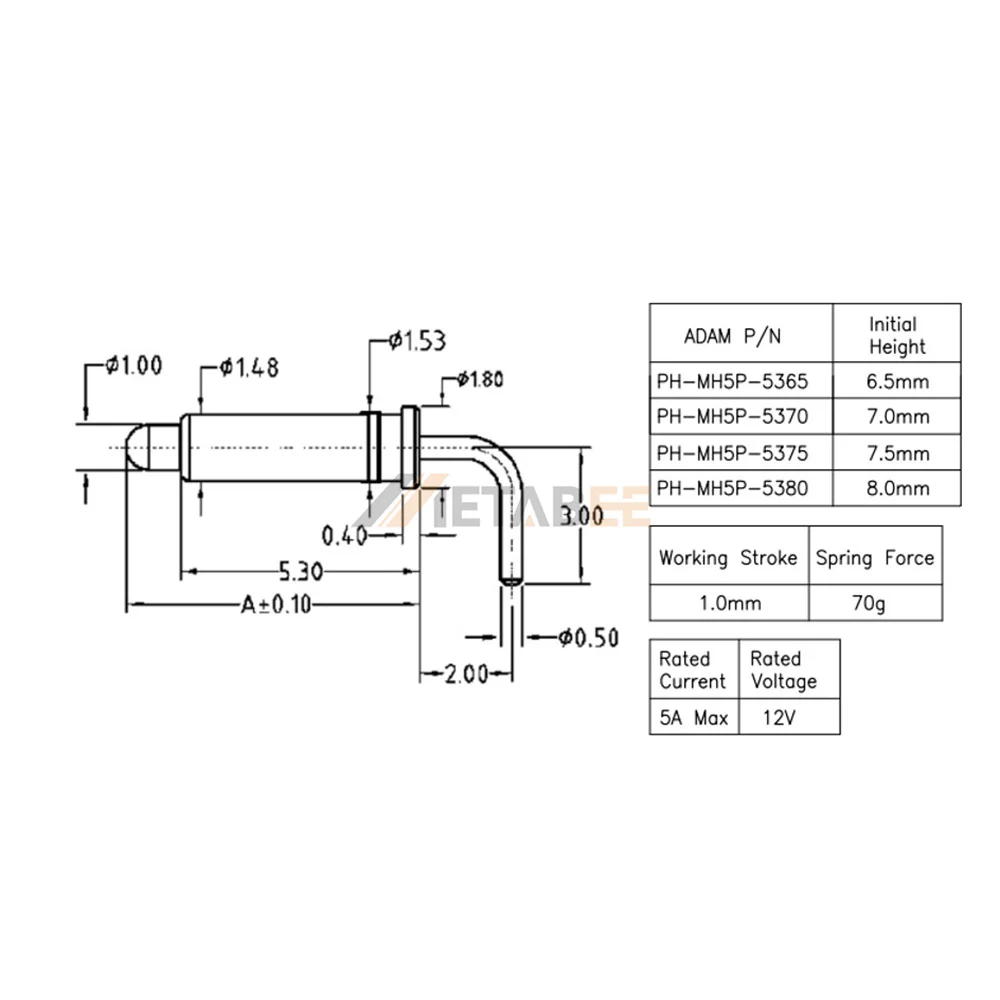

Main Specifications:
General Information:
| Product No.: | PH-MH5P-XXXX | |
| Product Family: | Spring loaded pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Initial Height (mm): | 6.5mm/7mm/7.5mm/8mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70gf |
Electrical:
| Rated Current: | 5A Max | |
| Rated Voltage: | 12V | |
| Contact Resistance: | 20mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, Gold plated | |
| Barrel Material: | Brass, Gold plated | |
| Spring Material: | SUS Surface treatment |
Environmental:
| Operating Temperature: | -55°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
