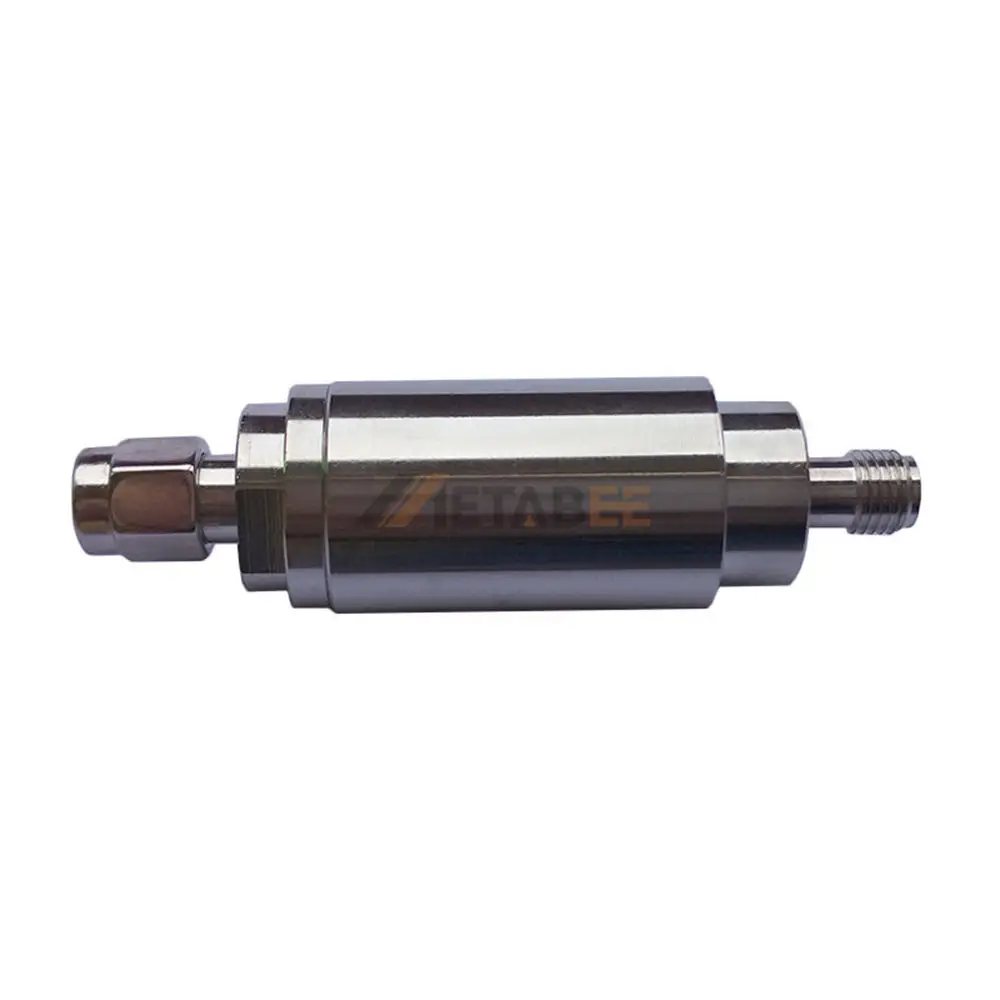

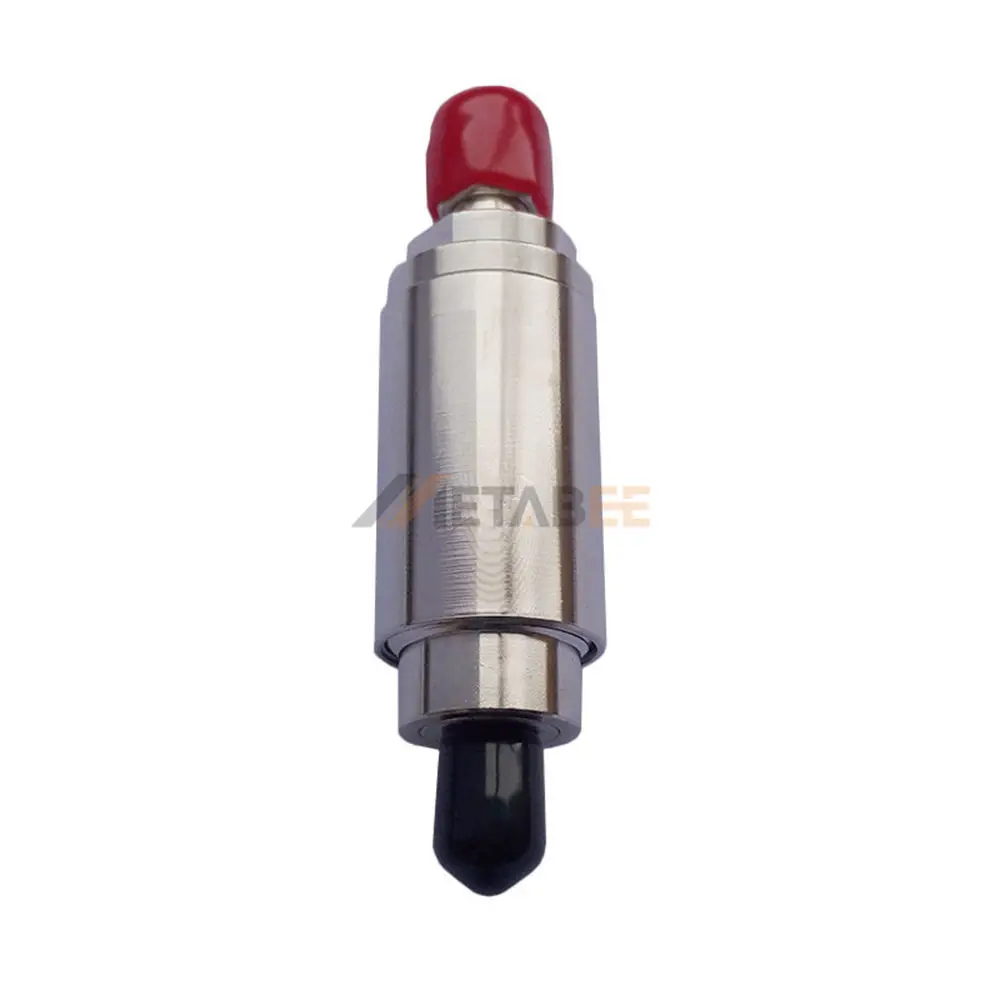

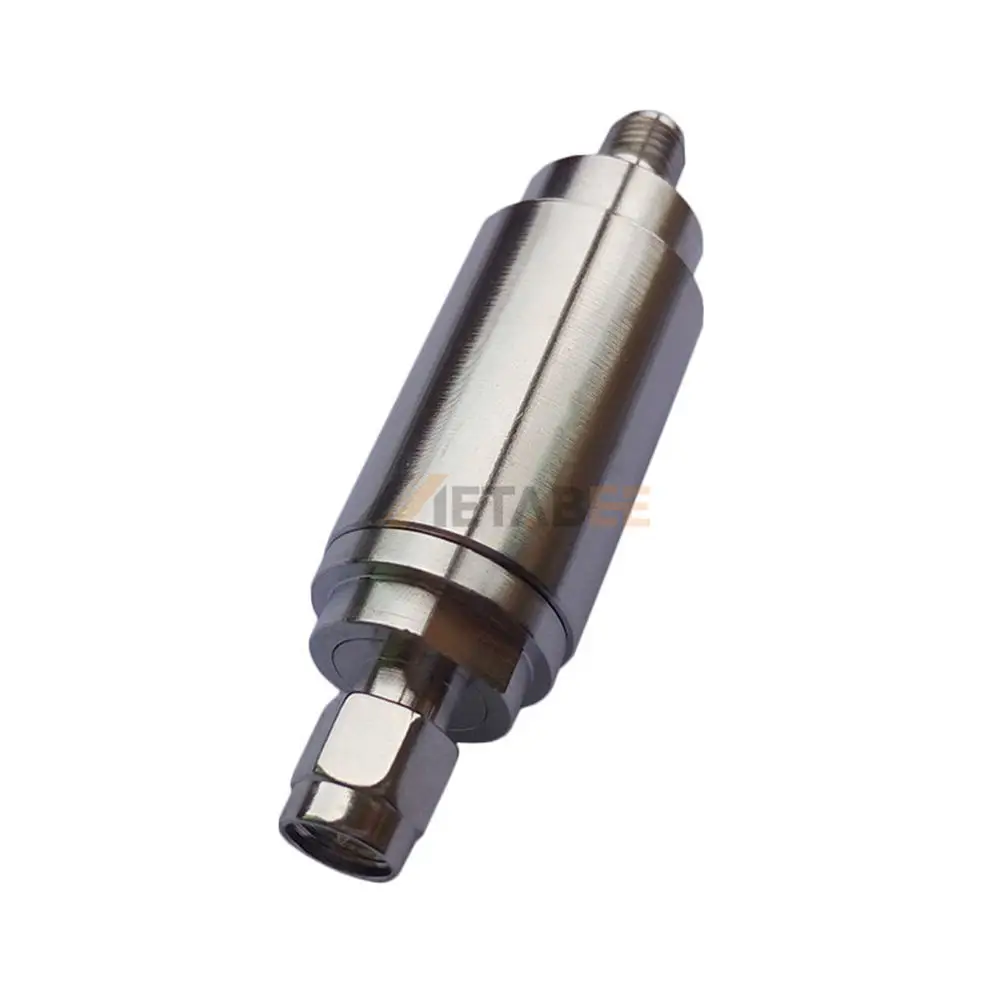

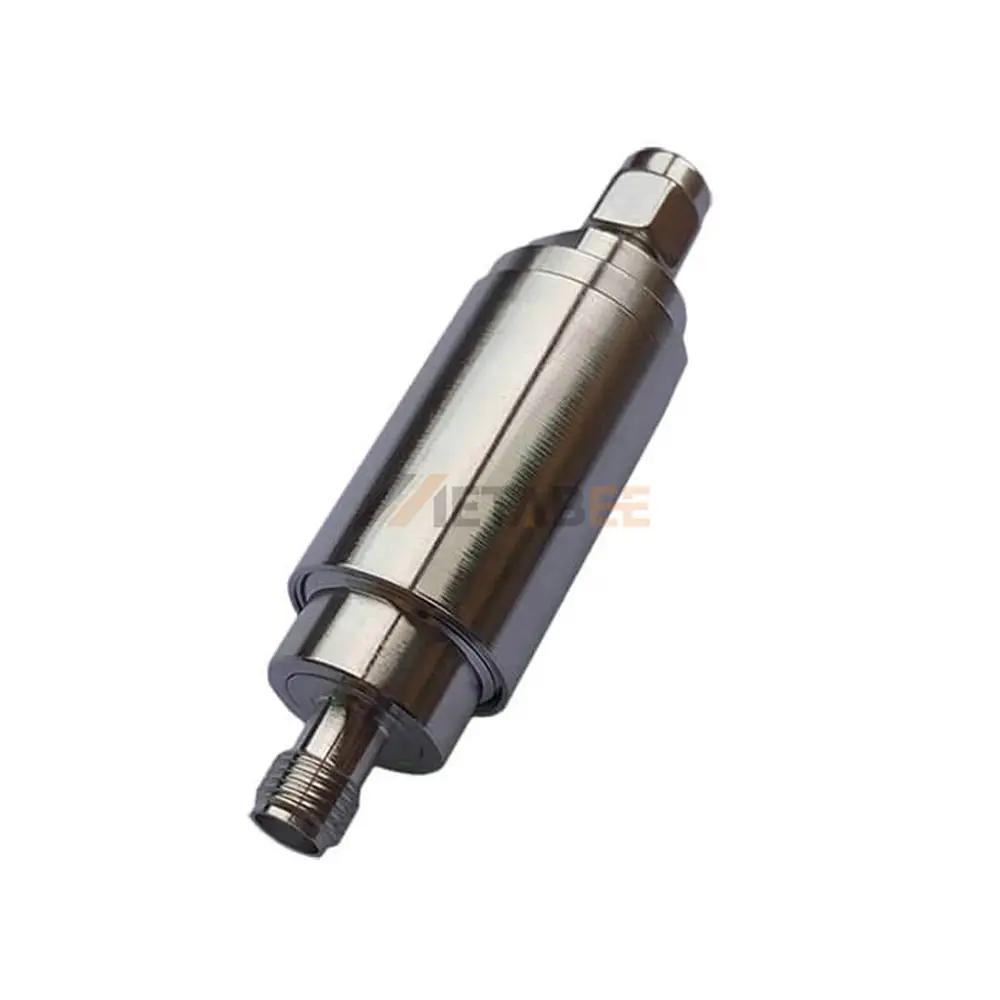

5 Watt SMA Male to SMA Female RF Fixed Attenuator, DC to 4GHz

5 Watt SMA Male to SMA Female RF Fixed Attenuator, DC to 4GHz

Introduction

The 5-Watt SMA attenuator is a high-performance solution designed to deliver consistent signal attenuation in RF and microwave systems. With a frequency range of DC to 4 GHz and a power handling capacity of up to 5 watts, this attenuator is ideal for signal calibration, impedance matching, and protecting sensitive components from excess power. It’s 50-ohm impedance ensures seamless integration into standard RF circuits.

Built with precision-engineered stainless steel SMA male and female connectors, this attenuator provides exceptional durability and corrosion resistance for long-term reliability. The low VSWR of 1.20:1 guarantees minimal signal reflection, maintaining signal integrity across the operating frequency range. With an IP20 protection rating and a wide operating temperature range from -55°C to +125°C, it’s suitable for demanding indoor RF environments.

Key Features:

• Power Handling: Supports up to 5W continuous input power.
• Frequency Range: Operates from DC to 4 GHz.Low VSWR:
• Ensures stable signal performance with 1.20:1 max.
• Rugged Construction: Stainless steel SMA connectors for durability.
• Temperature Resilience: Performs reliably from -55°C to +125°C.

Main Specifications:

Applications of this 5-Watt SMA Male to SMA Female RF Fixed Attenuator:

• Wireless Communication Systems;
• Laboratory Testing;
• Satellite Communication;
• Radar Systems;
• Medical Devices;
• Military/Aerospace;
• Wi-Fi Networks;
• Broadcast Equipment;
• RFID Systems;

We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
