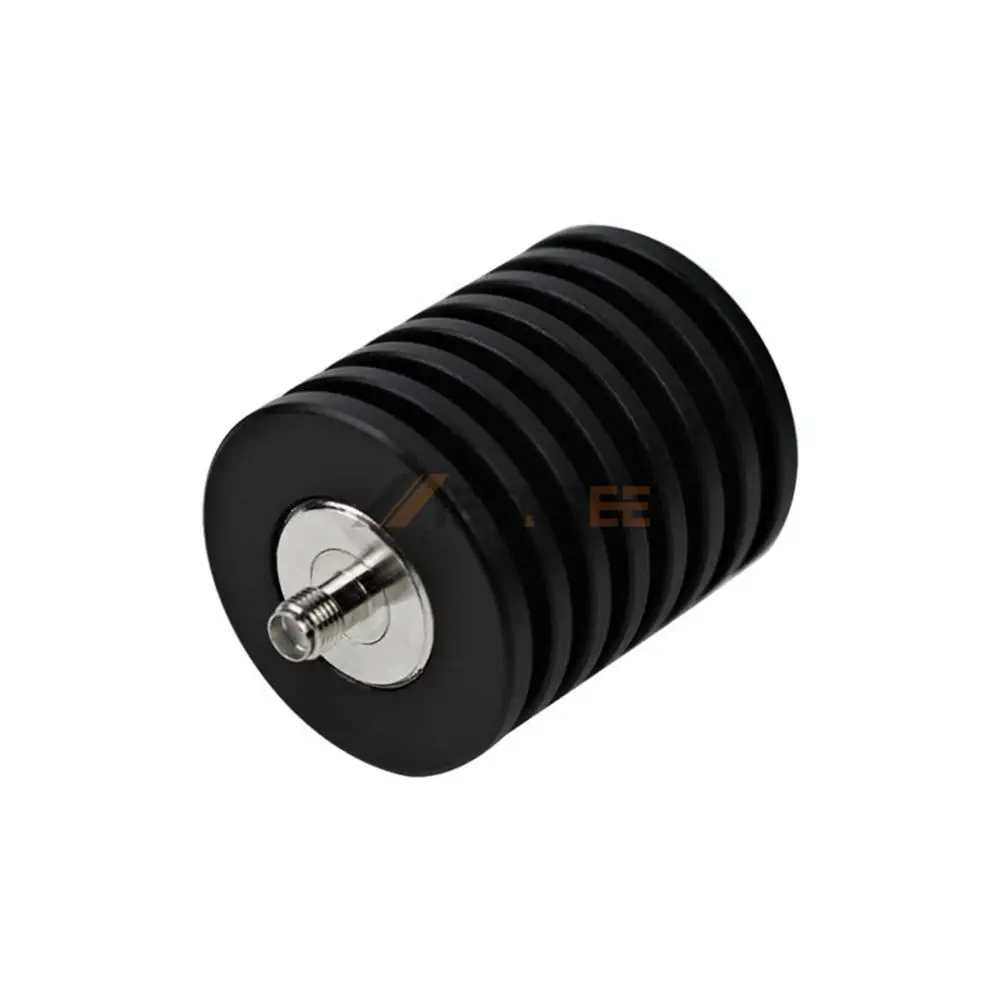

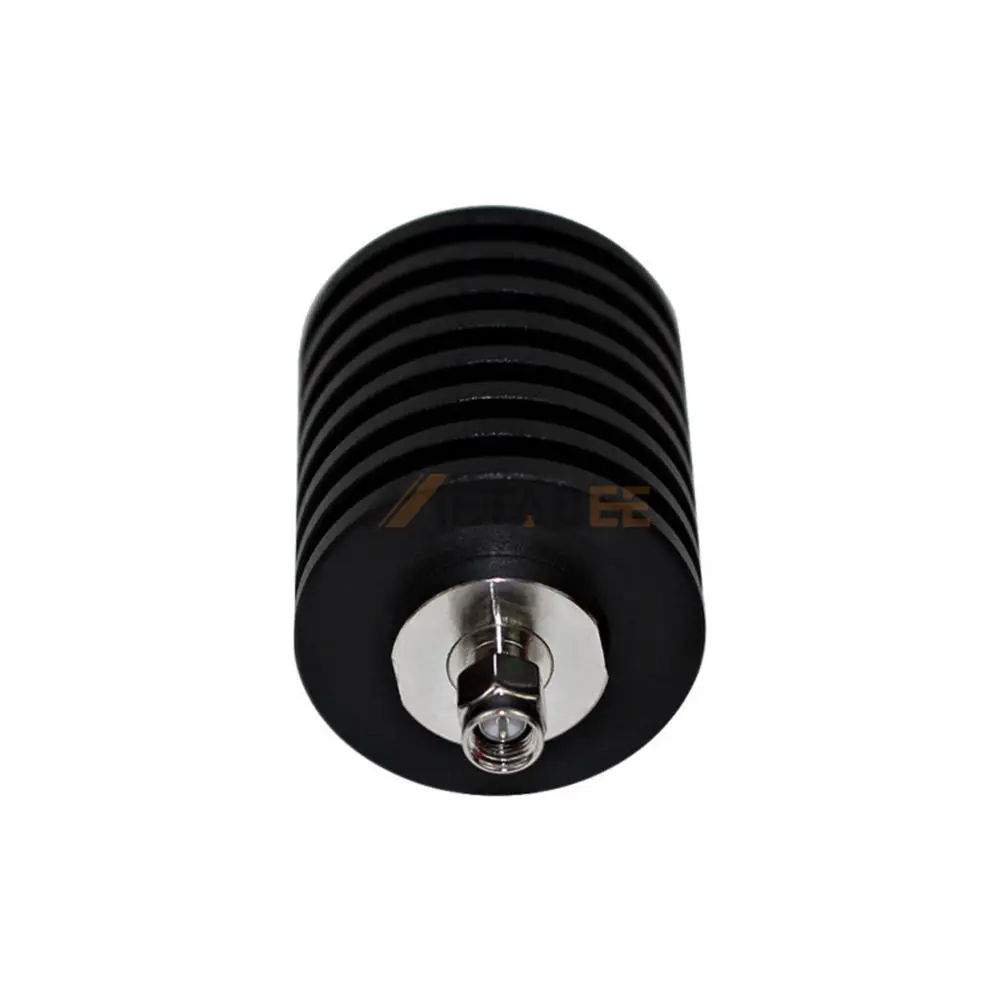

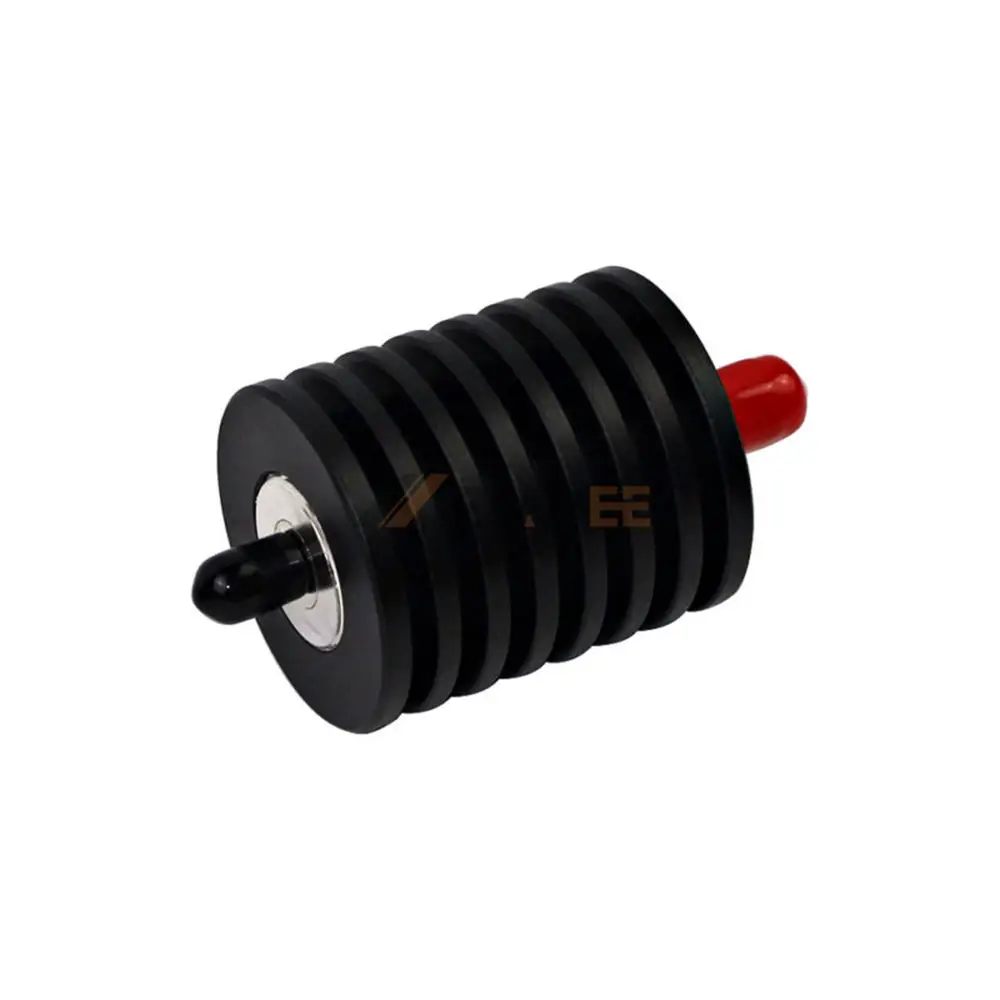

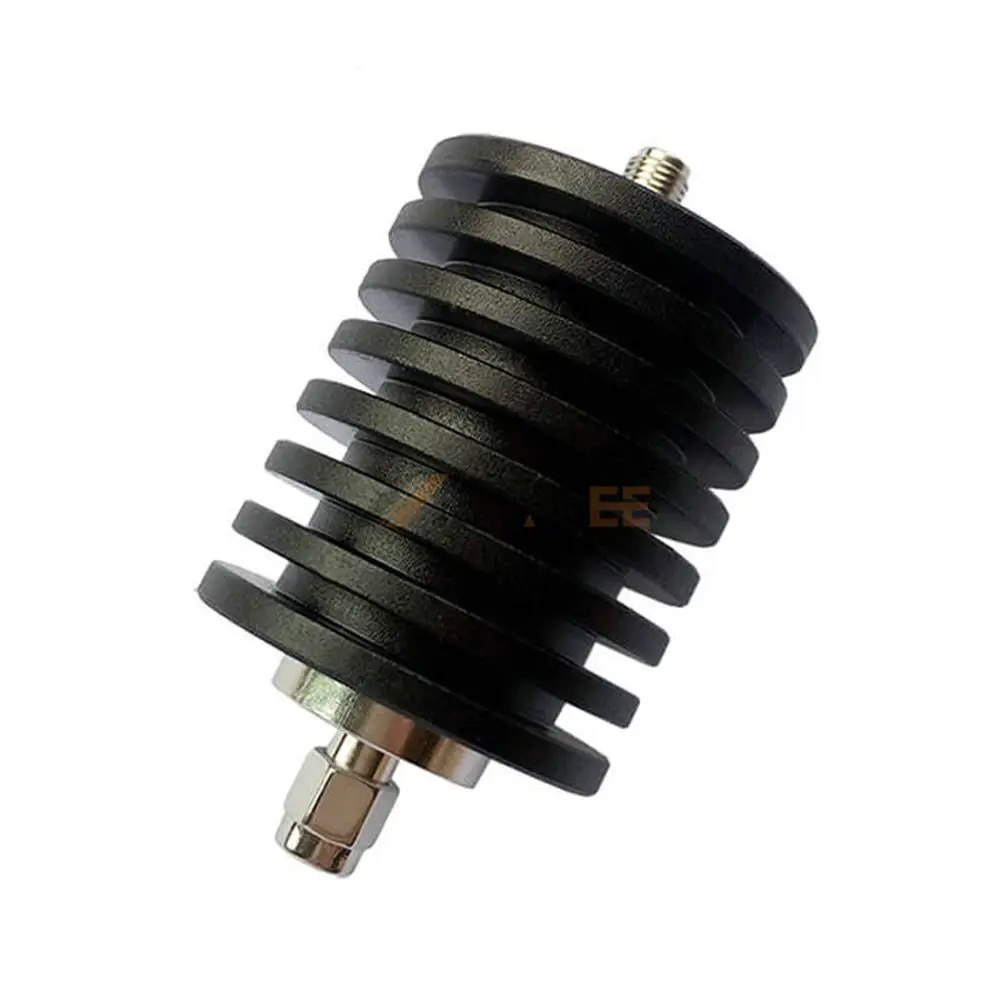

25W SMA Male to SMA Female RF Commercial Attenuator, DC to 3GHz
Introduction
The SMA attenuator is engineered for high-power RF signal attenuation applications across a broad frequency range of DC to 3 GHz. Designed to maintain signal integrity while minimizing reflection, this fixed attenuator offers a 50-ohm impedance and a low VSWR of 1.20:1, ensuring optimal performance in demanding commercial RF systems.
Both connectors—SMA male and SMA female—are constructed with high-grade stainless steel for durability and corrosion resistance. Housed in a robust stainless steel enclosure, the attenuator is rated for up to 25 watts of continuous power. With an ingress protection rating of IP20, it provides reliable performance in indoor environments, even under extreme temperatures from -55°C to +125°C.
Key Features:
- 25W power handling for high-power RF applications;
- Frequency range: DC to 3 GHz;
- 50-ohm impedance ensures compatibility with standard RF systems;
- Low VSWR of 1.20:1 for minimal signal reflection;
- SMA male to SMA female connectors;
- Durable stainless steel housing;
- Operating temperature: -55°C to +125°C; IP20 protection rating.
Main Specifications:
| Part No.: | 25W-SMA-JK-3G | |
| Product Series: | SMA Attenuators | |
| Brand: | Metabee | |
| Connector 1: | SMA Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | SMA Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 25W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 25W SMA Male to SMA Female RF Commercial Attenuator:
- Wireless Communication Systems;
- Laboratory Testing;
- Satellite Communication;
- Radar Systems;
- Medical Devices;
- Military/Aerospace;
- Wi-Fi Networks;
- Broadcast Equipment;
- RFID Systems;
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
