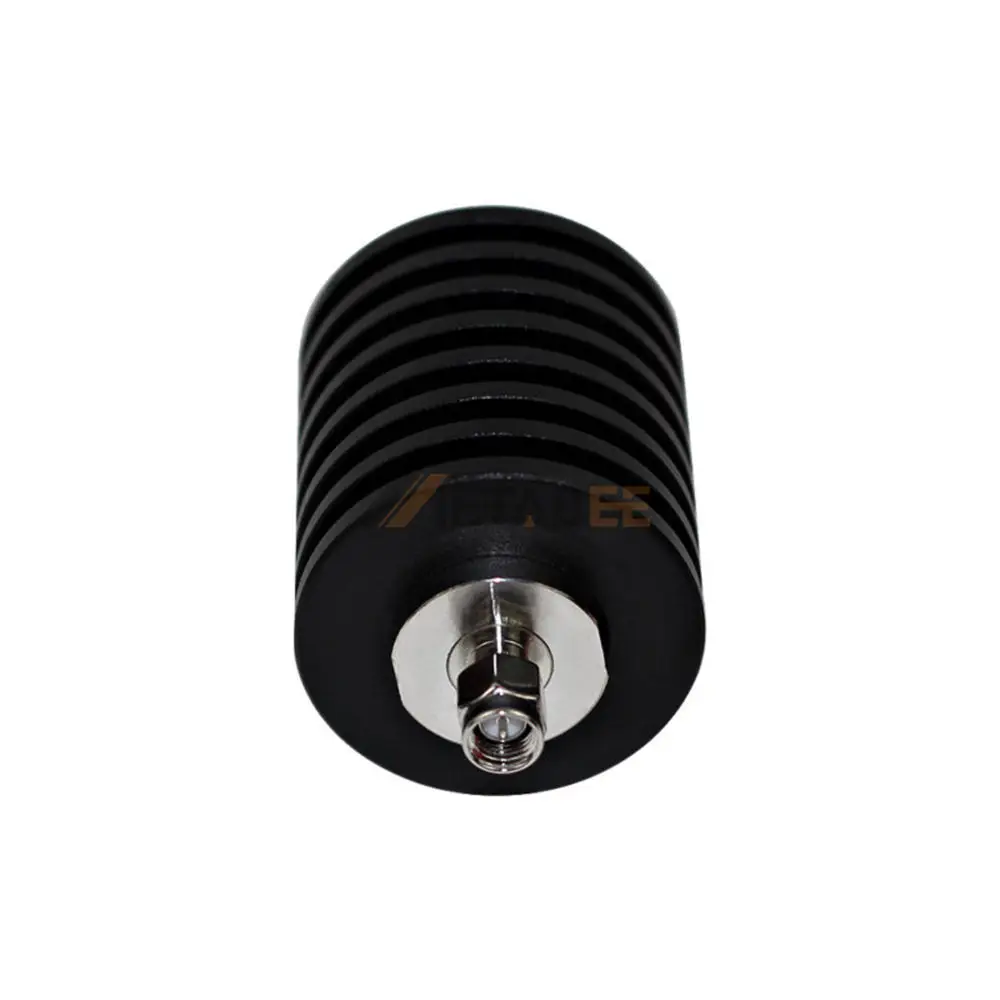

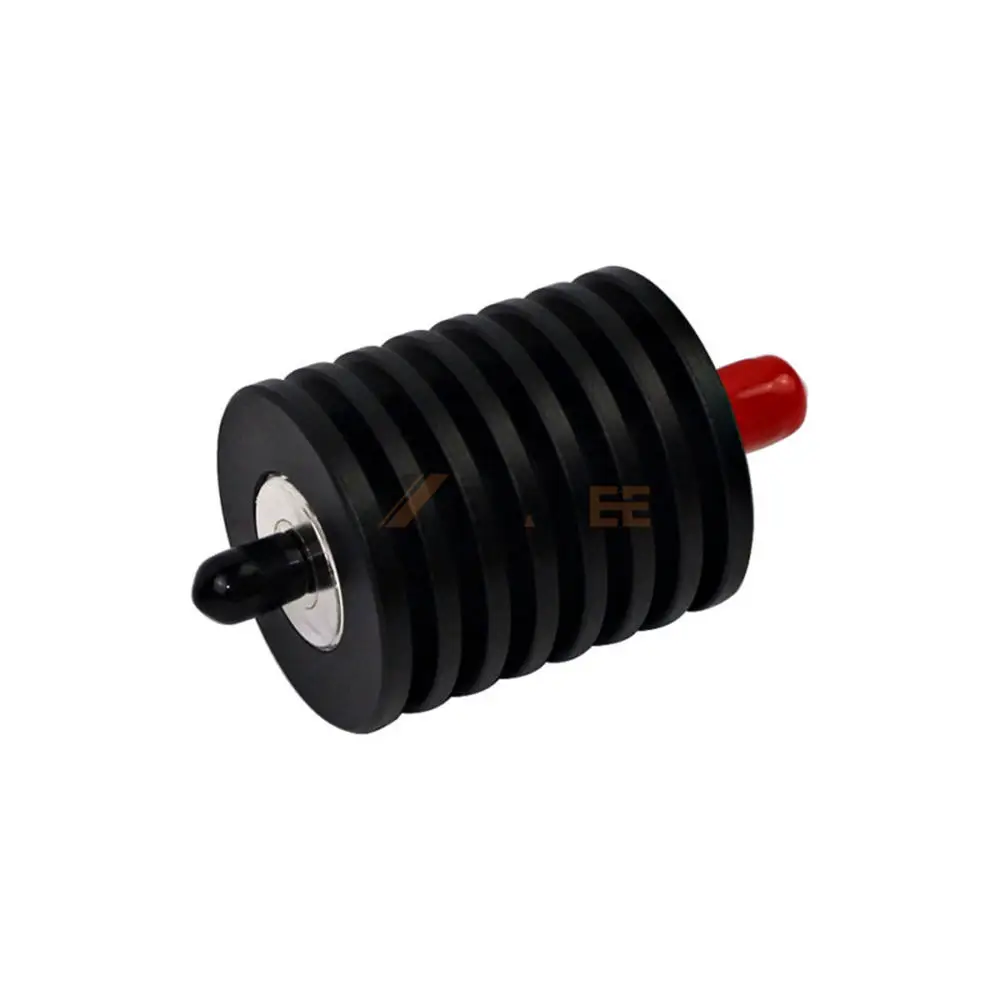

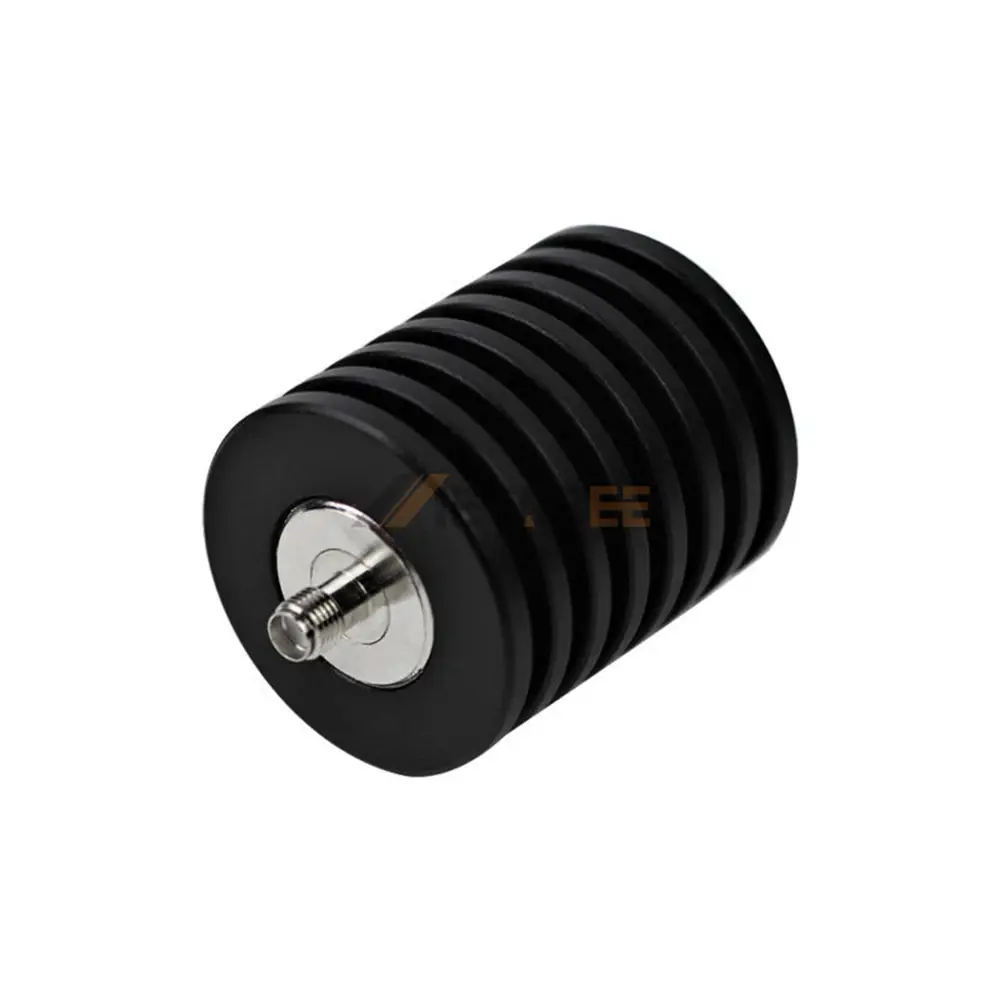

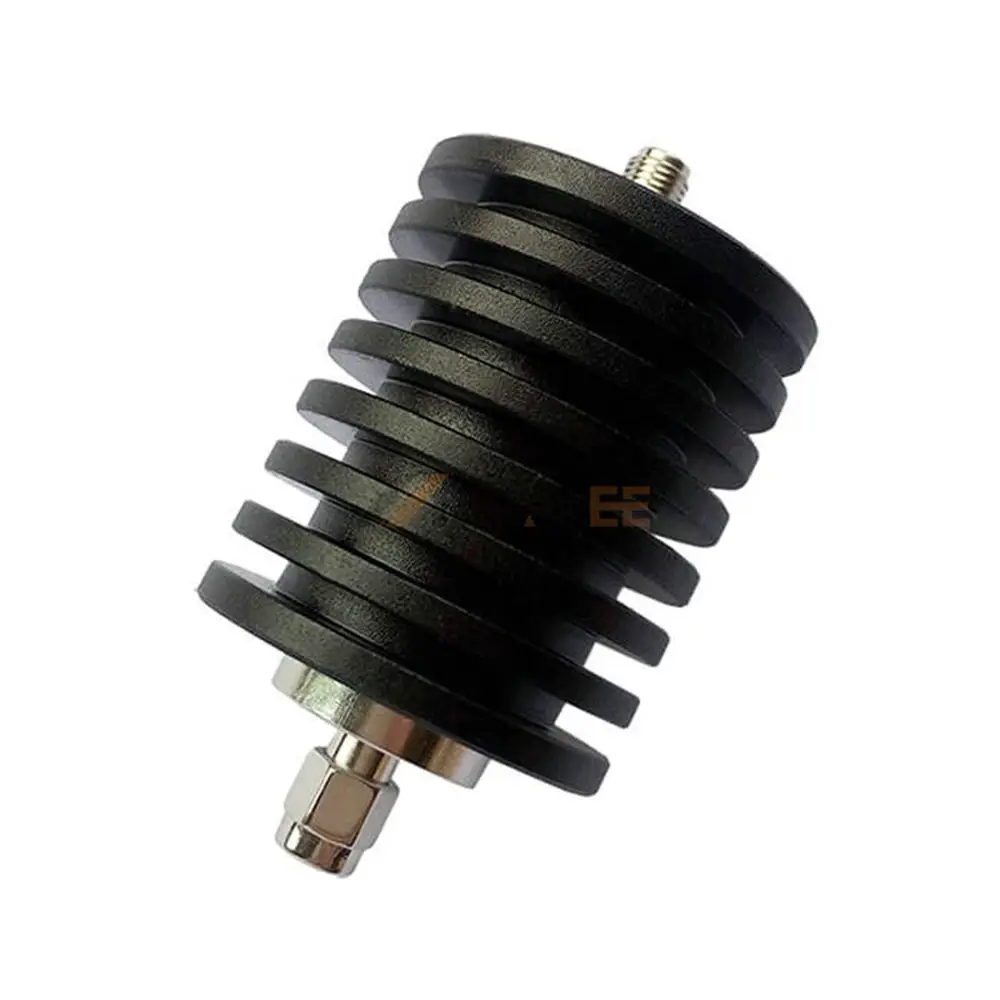

30W SMA Male to SMA Female Fixed Attenuator, DC to 3GHz
Introduction
The 30W SMA attenuator is a high-performance RF solution designed for power management and signal conditioning in demanding microwave systems. With a robust stainless steel housing and precision 50-ohm impedance matching, this attenuator ensures reliable connectivity and minimal signal reflection across a wide frequency range.
Engineered to operate from DC to 3GHz, it supports up to 30 watts of continuous power with a low VSWR of 1.20:1, optimizing signal integrity in RF chains. The SMA male-to-female interface provides easy integration into existing systems, while its IP20 rating offers essential protection in indoor environments. Built to endure harsh conditions, this attenuator performs reliably within a broad operating temperature range from -55°C to +125°C.
Key Features:
- Frequency range: DC to 3GHz;
- Power handling: 30 Watts;
- Impedance: 50 Ohms;
- VSWR: 1.20:1 max;
- Connectors: SMA Male to SMA Female;
- Housing: Durable stainless steel;
- Perating temperature: -55°C to +125°C, IP20 protection rating.
Main Specifications:
| Part No.: | 30W-SMA-JK-3G | |
| Product Series: | SMA Attenuators | |
| Brand: | Metabee | |
| Connector 1: | SMA Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | SMA Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 30W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 30W SMA Male to SMA Female Fixed Attenuator:
- Wireless Communication Systems;
- Laboratory Testing;
- Satellite Communication;
- Radar Systems;
- Medical Devices;
- Military/Aerospace;
- Wi-Fi Networks;
- Broadcast Equipment;
- RFID Systems;
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
