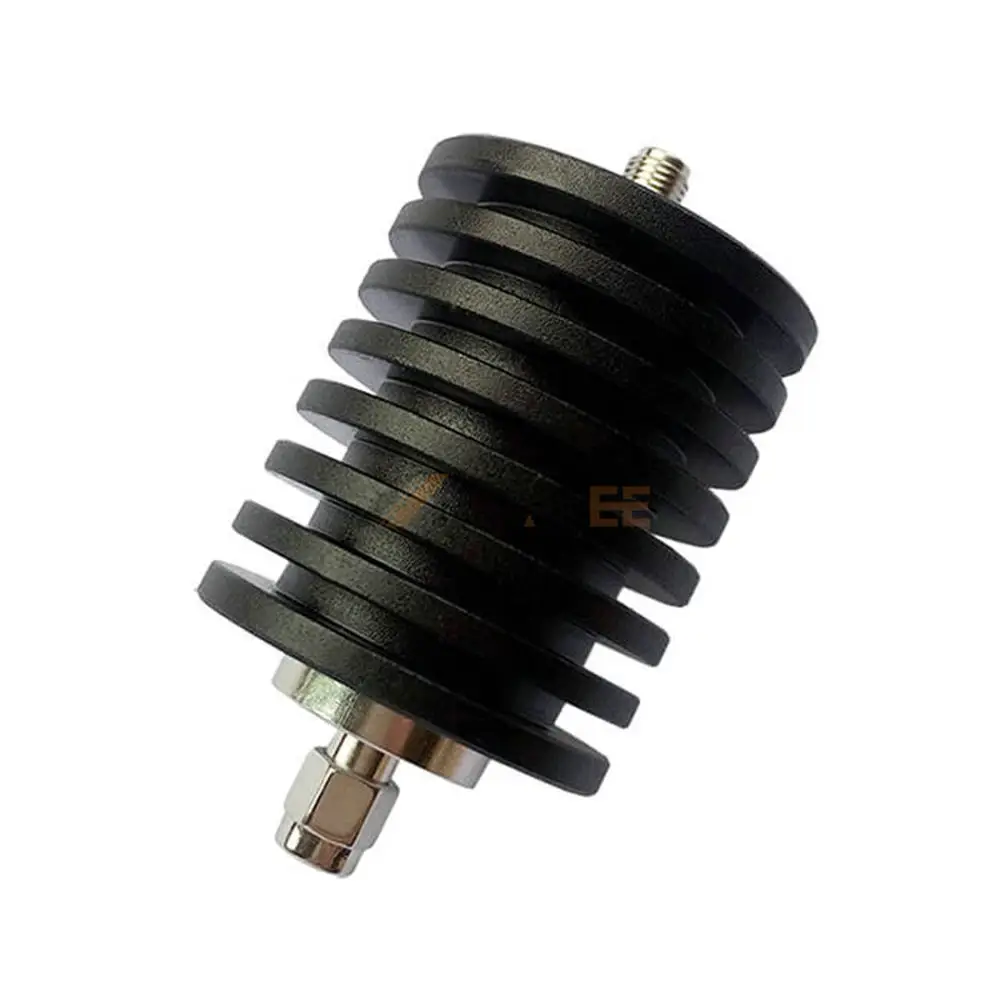

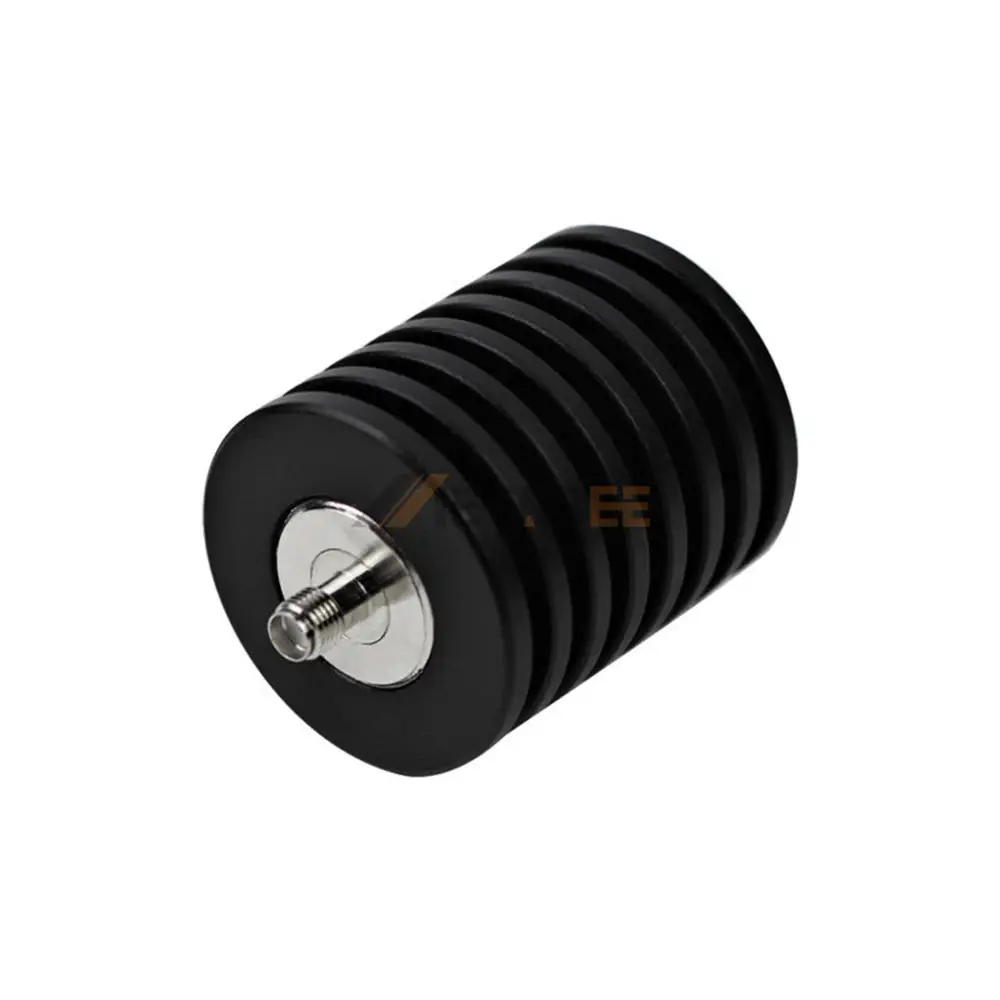

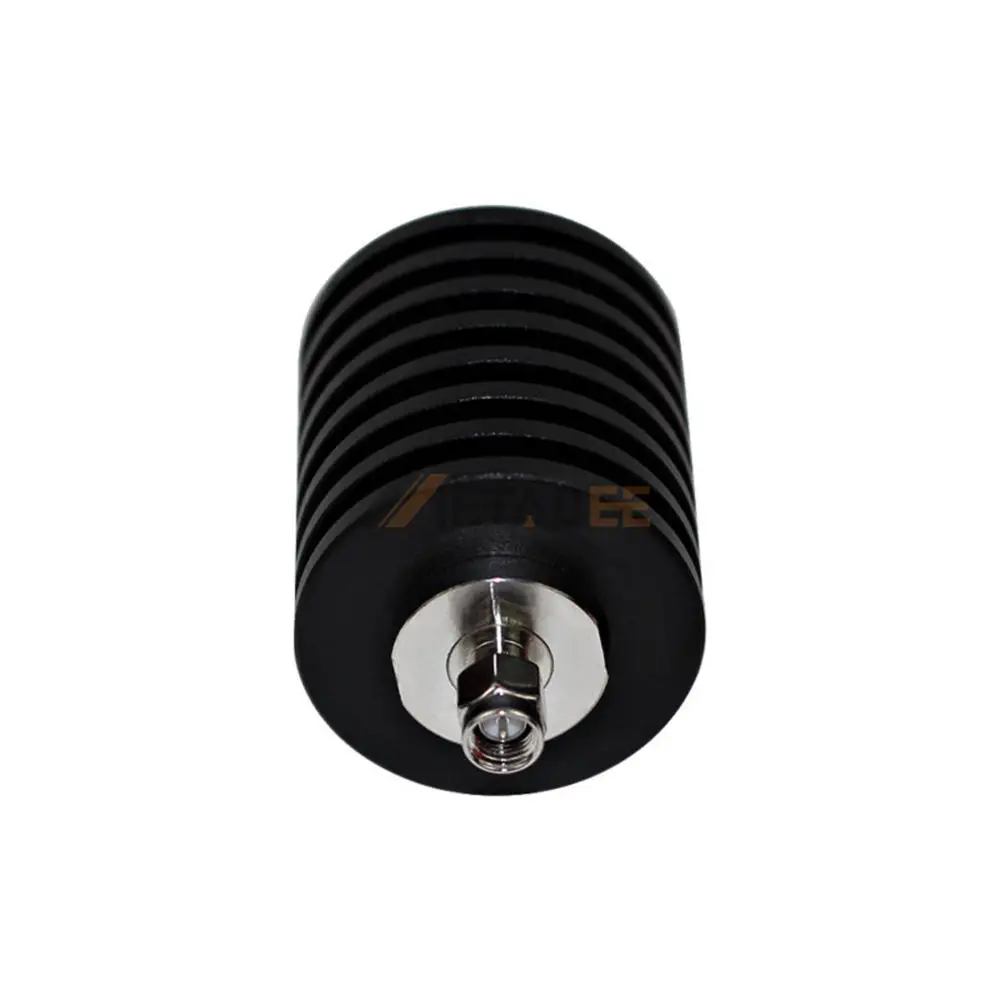

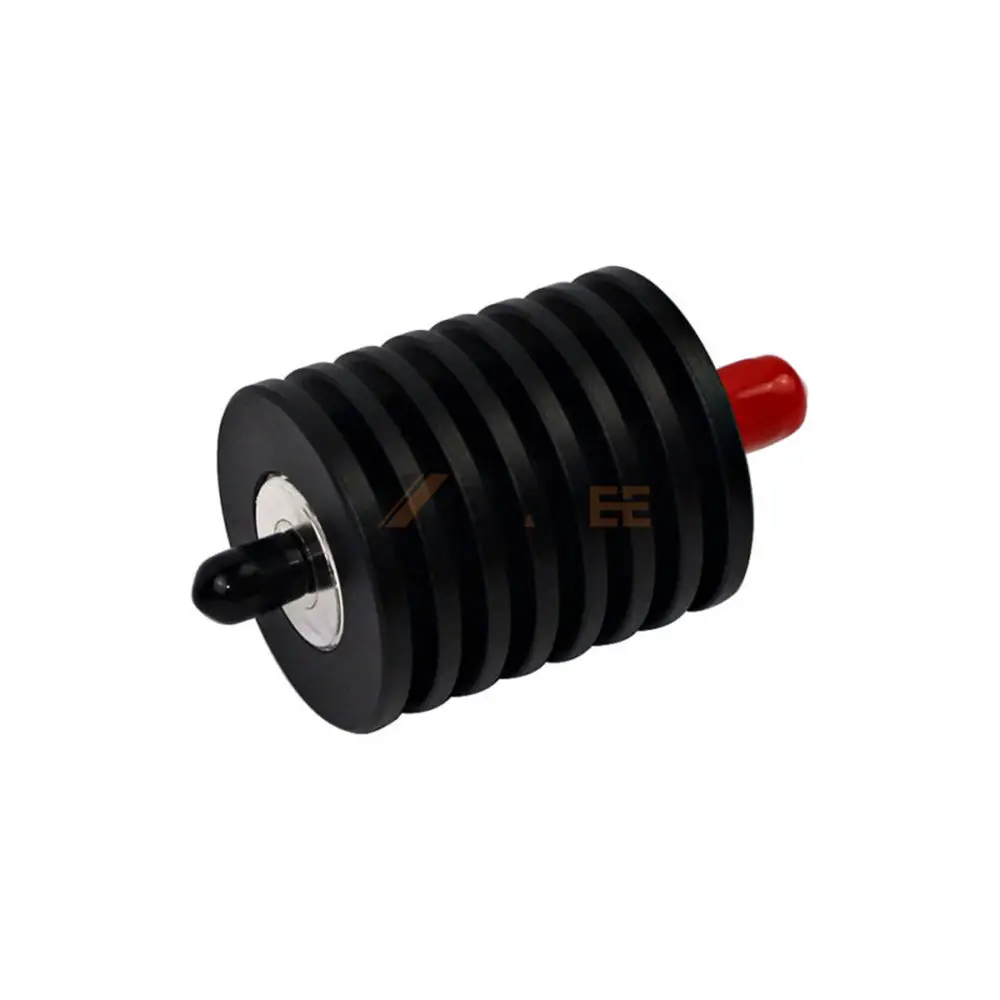

25W SMA Male to SMA Female Coaxial Attenuator, DC to 4GHz
Introduction
This high-quality SMA attenuator is engineered to provide precise signal attenuation from DC to 4 GHz. With a 50-ohm impedance, it ensures optimal signal integrity and minimal reflection in your RF systems. Both the SMA male and SMA female connectors are constructed from durable stainless steel, offering excellent longevity and corrosion resistance in demanding environments. This attenuator is an essential component for various applications requiring power reduction without compromising signal quality.
Designed for robust performance, this attenuator boasts a low Voltage Standing Wave Ratio (VSWR) of 1.20:1, ensuring efficient power transfer and minimal signal loss. It’s built to withstand a wide range of operational conditions, with a working temperature range of -55°C to 125°C. While it has an IP20 protection rating, it’s ideal for indoor or protected outdoor use where dust and touch protection are sufficient.
Key Features:
- High Power Handling: 25W maximum input power.
- Wide Frequency Range: DC to 4 GHz operation.
- Optimal Impedance: 50 Ohm for seamless integration.
- Low VSWR: 1.20:1 for minimal signal reflection.
- Durable Construction: Stainless steel SMA male and female connectors.
- Broad Temperature Range: -55°C to 125°C operating temperature.
- Reliable Connectivity: SMA male to SMA female configuration.
Main Specifications:
| Part No.: | 25W-SMA-JK-4G | |
| Product Series: | SMA Attenuators | |
| Brand: | Metabee | |
| Connector 1: | SMA Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | SMA Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 25W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 25W SMA Male to SMA Female Coaxial Attenuator:
- Wireless Communication Systems;
- Laboratory Testing;
- Satellite Communication;
- Radar Systems;
- Medical Devices;
- Military/Aerospace;
- Wi-Fi Networks;
- Broadcast Equipment;
- RFID Systems;
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
