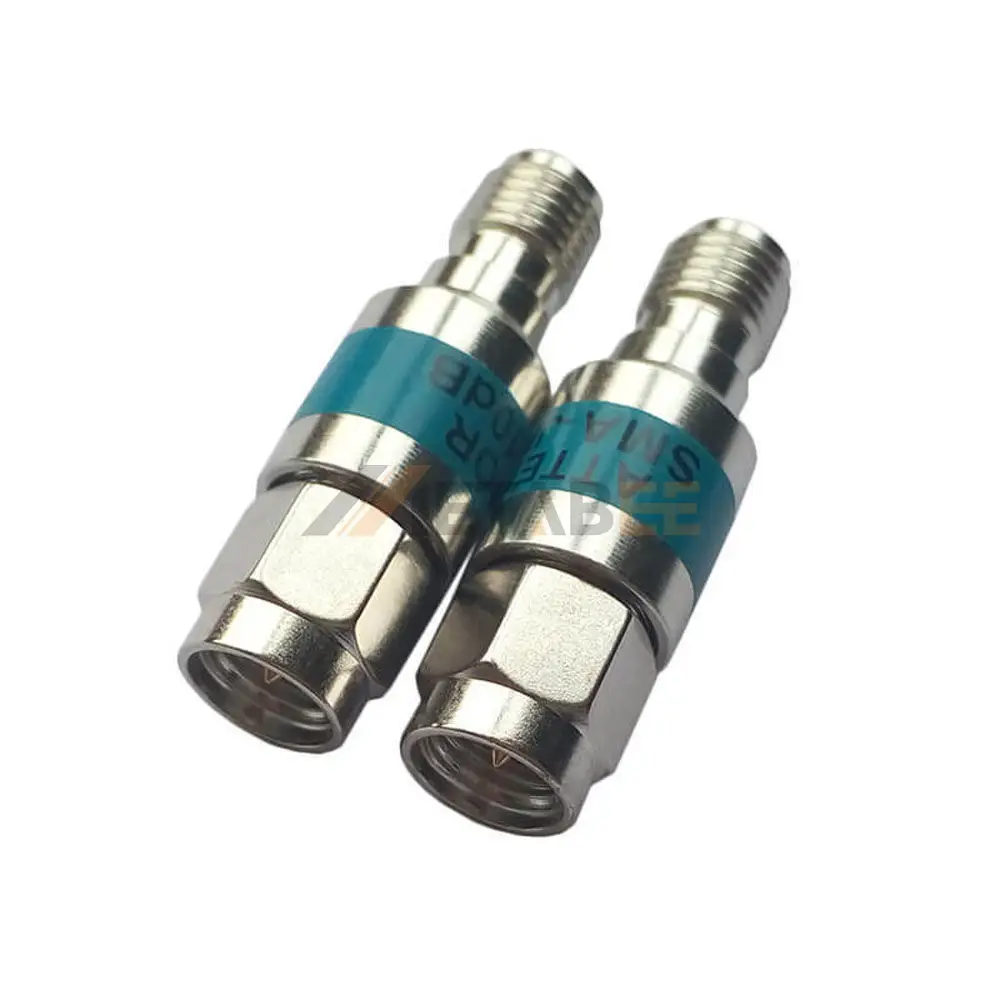

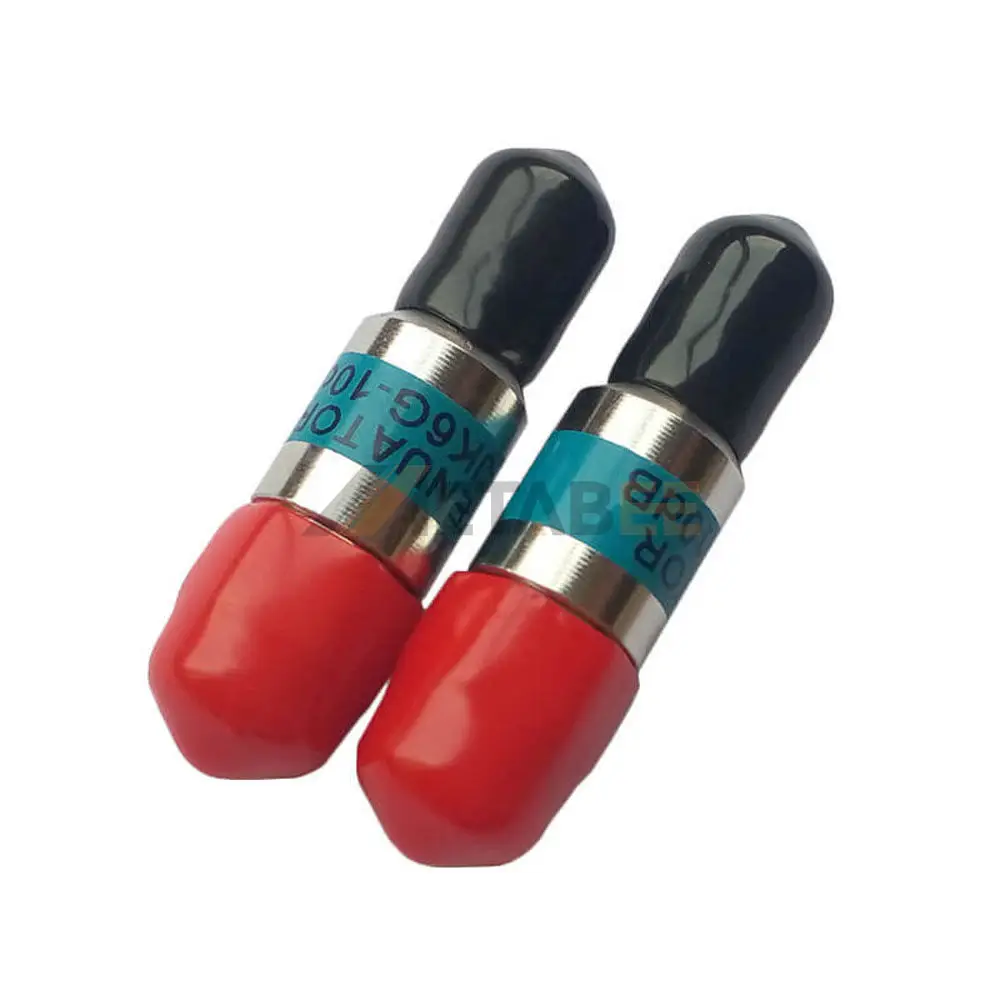

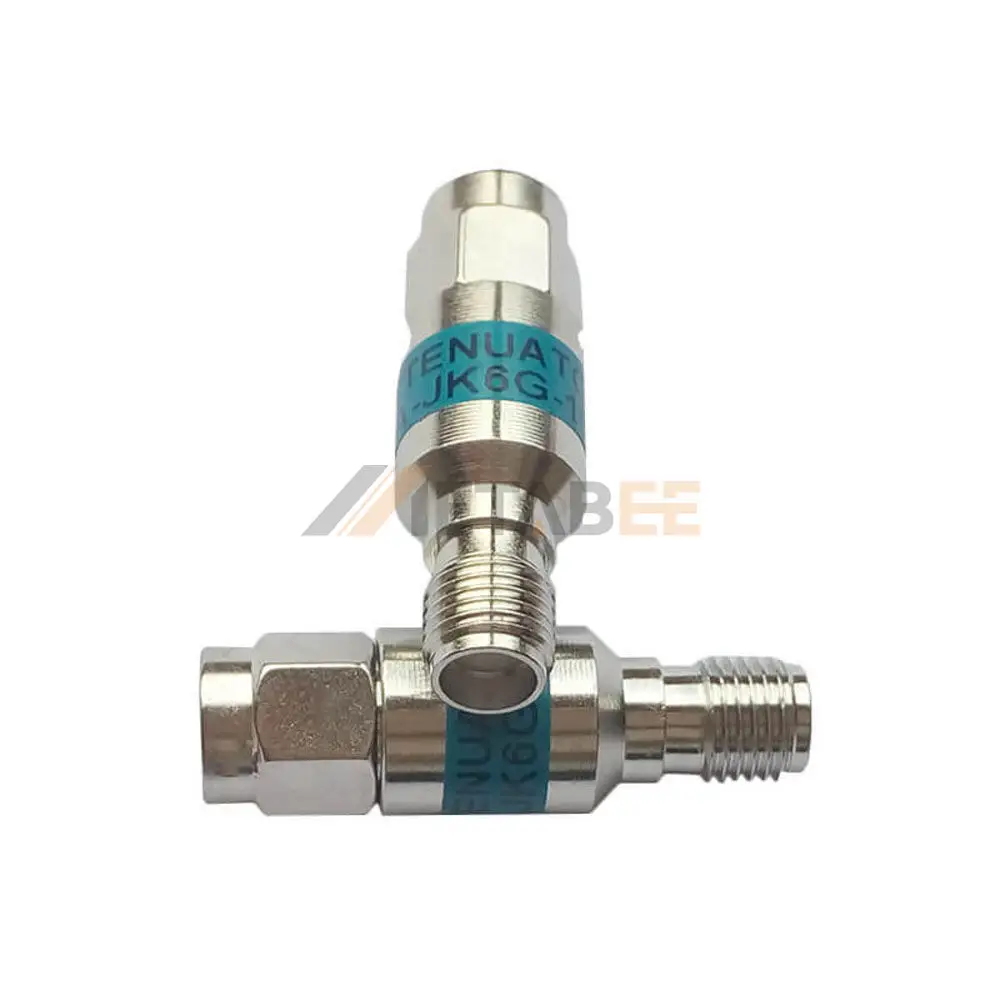

2W SMA Male to SMA Female Fixed Attenuator, DC to 6GHz, 50 Ohm
Introduction
The 2W SMA attenuator is engineered for precision RF signal management in demanding environments. Operating across a wide frequency range from DC to 6GHz, this attenuator is part of the high-performance SMA Attenuator series. It features a 50-ohm impedance and supports a power rating of 2 Watts, making it ideal for testing, signal balancing, and protecting sensitive components in RF systems.
Constructed with stainless steel housing and connectors (SMA male input, SMA female output), this attenuator ensures long-lasting durability and stable performance. It delivers a low VSWR of 1.20:1, ensuring minimal signal reflection. Rated IP20 for protection and capable of operating in extreme temperatures from -55°C to +125°C, it meets the demands of both indoor labs and outdoor deployments.
Key Features:
- Frequency range: DC to 6GHz
- Rated power: 2 Watts
- Impedance: 50 Ohms
- Connectors: SMA male to SMA female
- Low VSWR: 1.20:1 for minimal signal loss
- Durable stainless steel construction
- Wide operating temperature: -55°C to +125°C
Main Specifications:
| Part No.: | 2W-SMA-JK-6G | |
| Product Series: | SMA Attenuators | |
| Brand: | Metabee | |
| Connector 1: | SMA Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | SMA Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 2W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 6 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 2W SMA Male to SMA Female Fixed Attenuator:
- Wireless Communication Systems;
- Laboratory Testing;
- Satellite Communication;
- Radar Systems;
- Medical Devices;
- Military/Aerospace;
- Wi-Fi Networks;
- Broadcast Equipment;
- RFID Systems;
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
