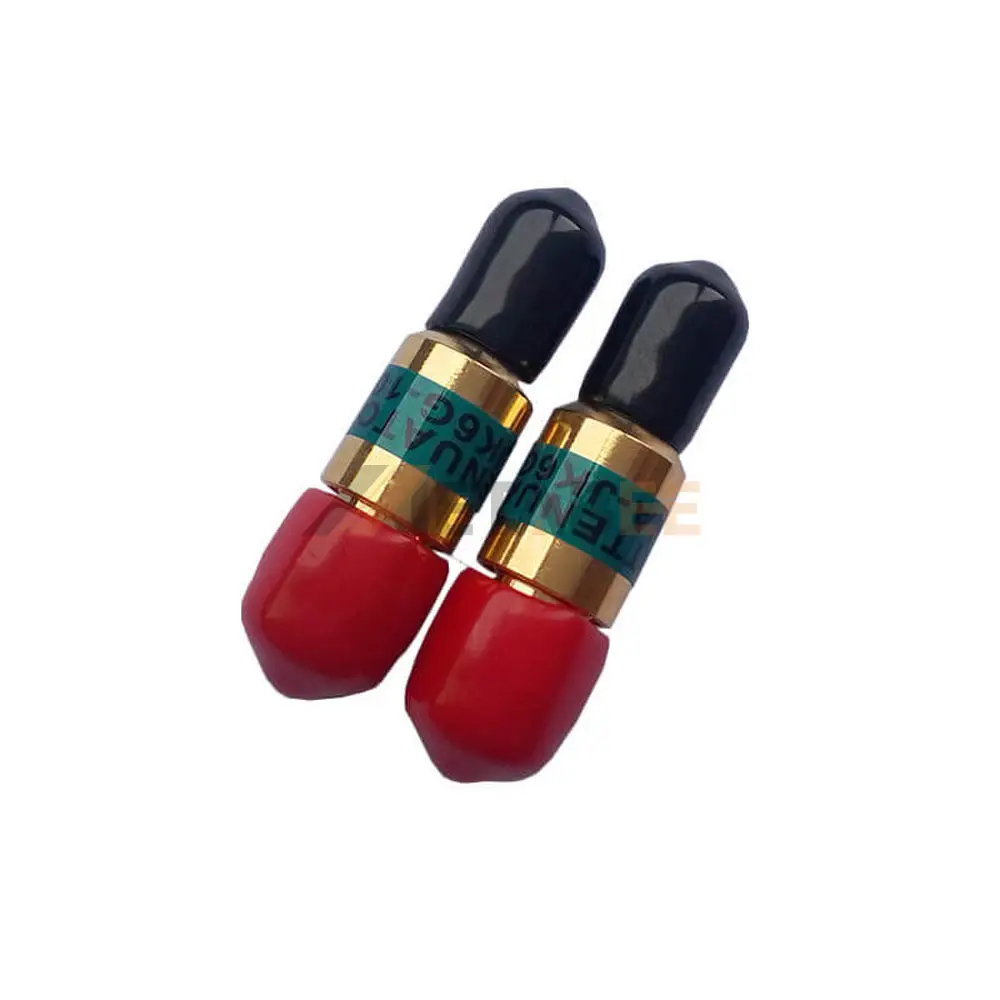

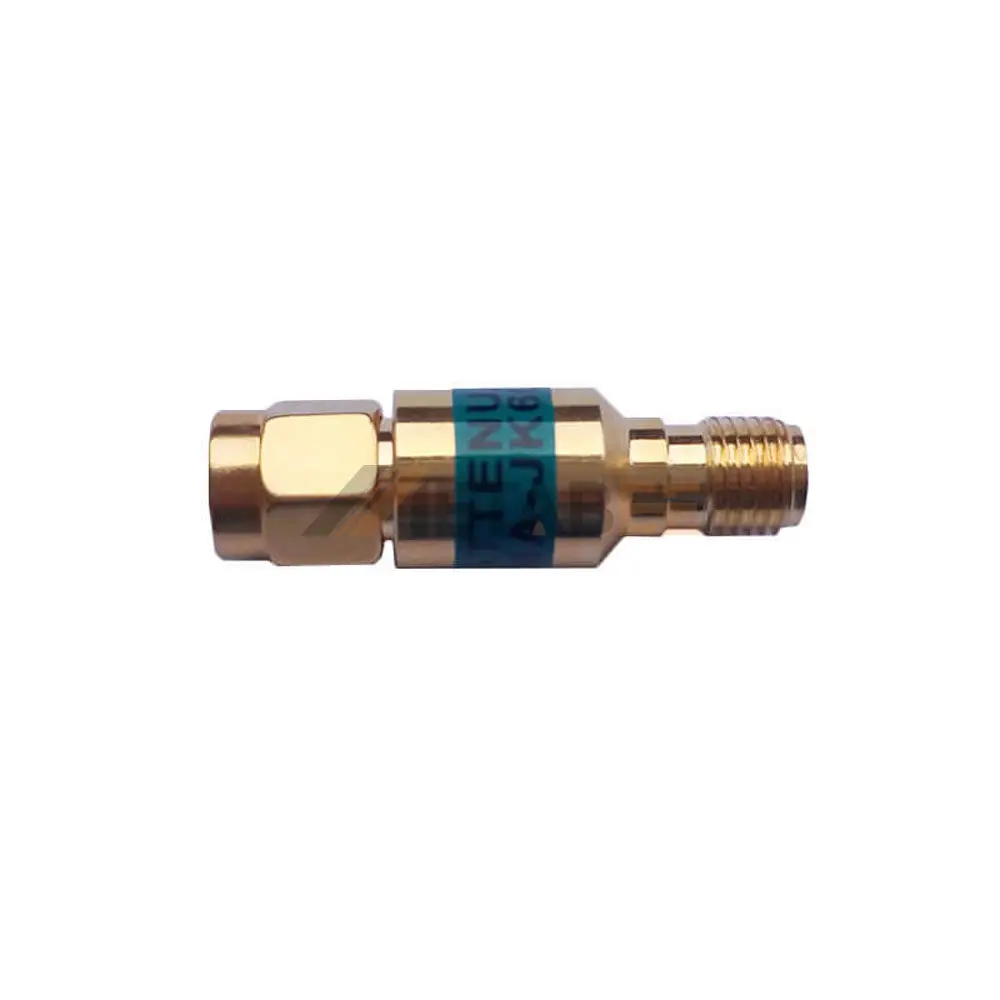

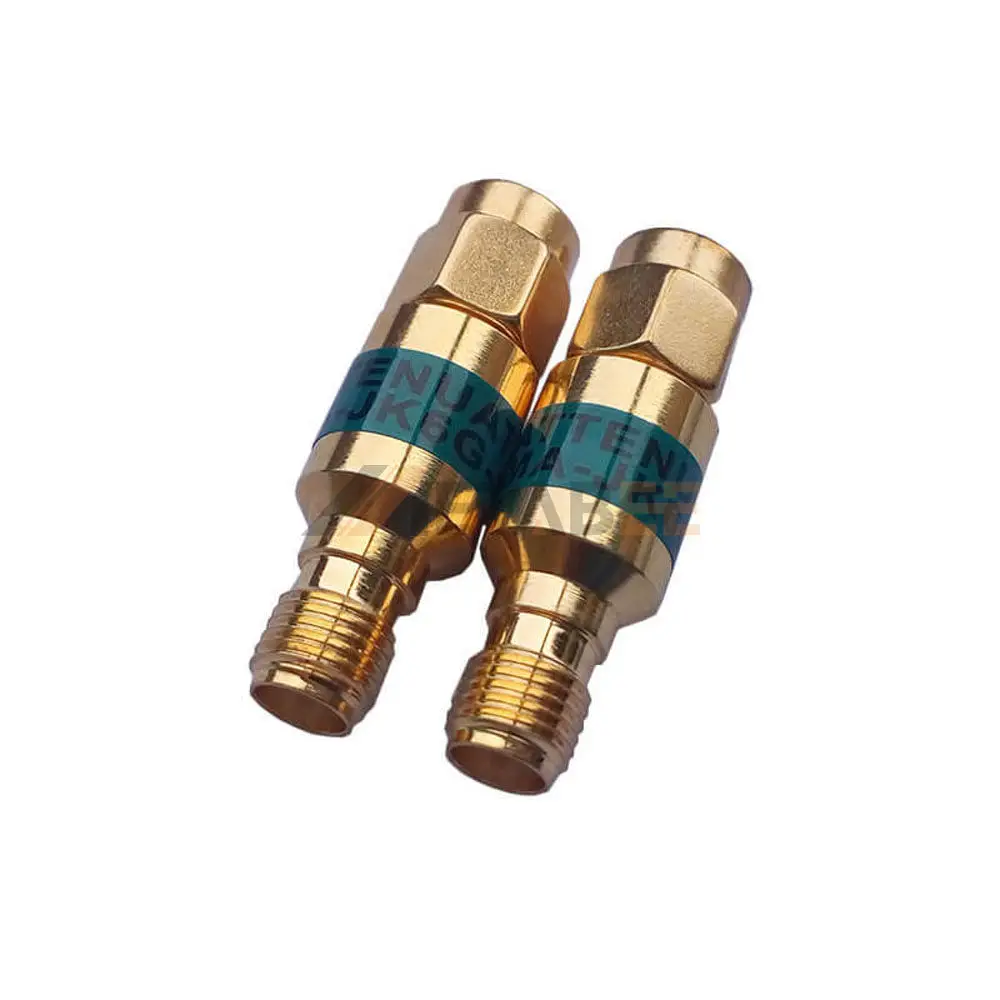

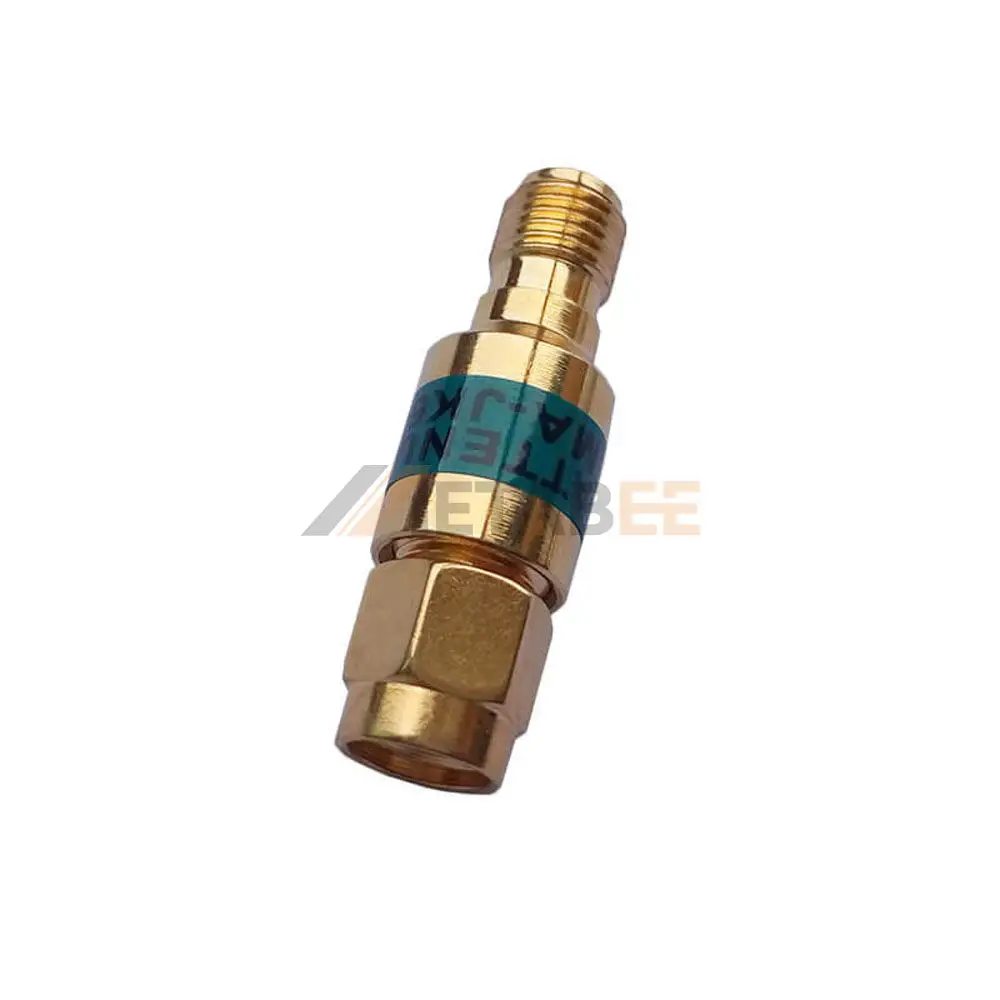

2W SMA Male to SMA Female Fixed RF Attenuator, DC to 6GHz
Introduction
The SMA attenuator is a high-performance passive component designed for precise signal reduction in RF and microwave applications. Operating from DC to 6GHz, this attenuator ensures minimal signal loss while maintaining excellent impedance matching with a 50-ohm contact resistance. Featuring a durable gold-plated copper housing, it offers superior conductivity and corrosion resistance. The SMA male to SMA female configuration provides secure connections, making it ideal for test equipment, communication systems, and RF circuits.
With a 2W power handling capability and a low VSWR of 1.20:1, this SMA attenuator guarantees stable performance under demanding conditions. Its wide operating temperature range (-55°C to +125°C) and IP20 protection ensure reliability in various environments. Whether for laboratory use or industrial applications, this fixed attenuator delivers consistent attenuation with high precision.
Key Features:
- Frequency Range: DC – 6 GHz
- Impedance: 50 Ohms
- Power Handling: 2W
- Connectors: SMA Male to SMA Female (Gold-Plated Copper)
- VSWR: 1.20:1
- Operating Temperature: -55°C to +125°C
- Protection Rating: IP20
Main Specifications:
| Part No.: | 2W-SMA-JK-6G | |
| Product Series: | SMA Attenuators | |
| Brand: | Metabee | |
| Connector 1: | SMA Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Copper | |
| Connector 1 – Body Plating: | Gold-Plated | |
| Connector 2: | SMA Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Copper | |
| Connector 2 – Body Plating: | Gold-Plated | |
| Power Maximum: | 2W | |
| Attenuation: | 1DB, 2DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 6 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 2W SMA Male to SMA Female Fixed RF Attenuator:
- Wireless Communication Systems;
- Laboratory Testing;
- Satellite Communication;
- Radar Systems;
- Medical Devices;
- Military/Aerospace;
- Wi-Fi Networks;
- Broadcast Equipment;
- RFID Systems;
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
