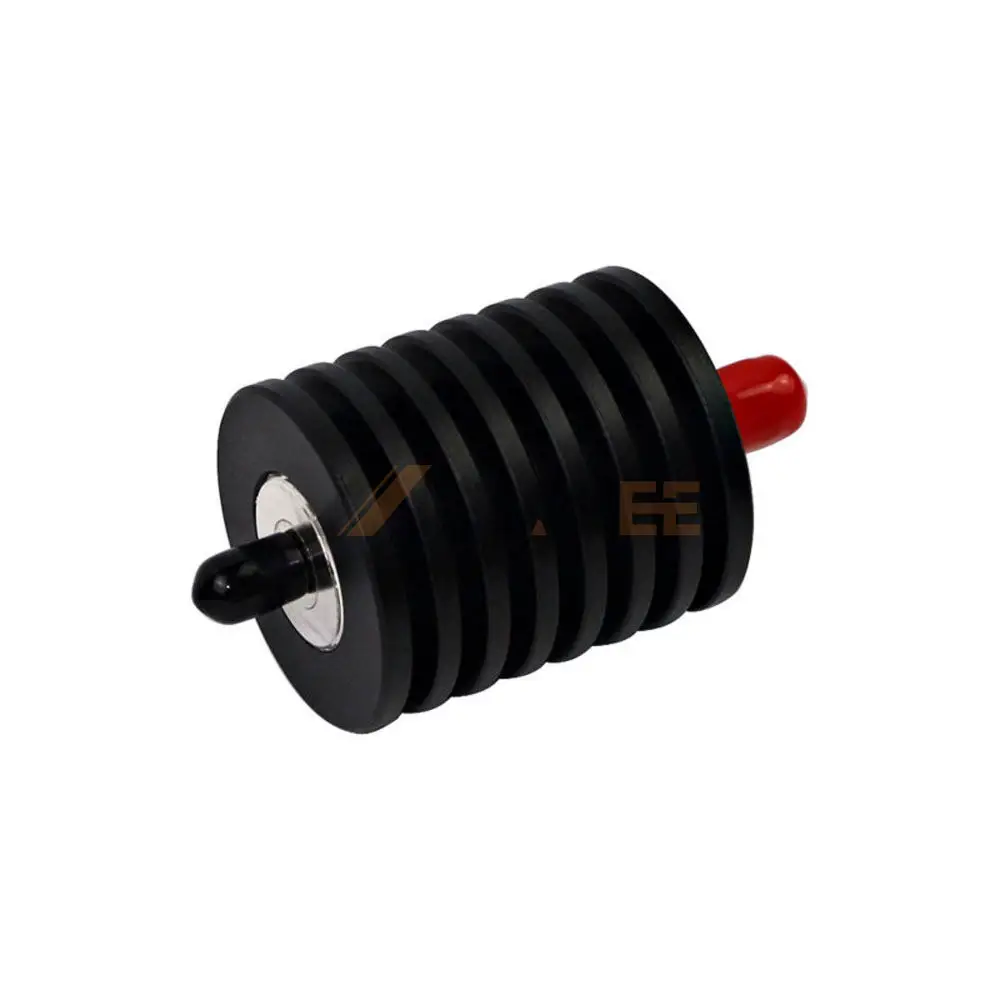

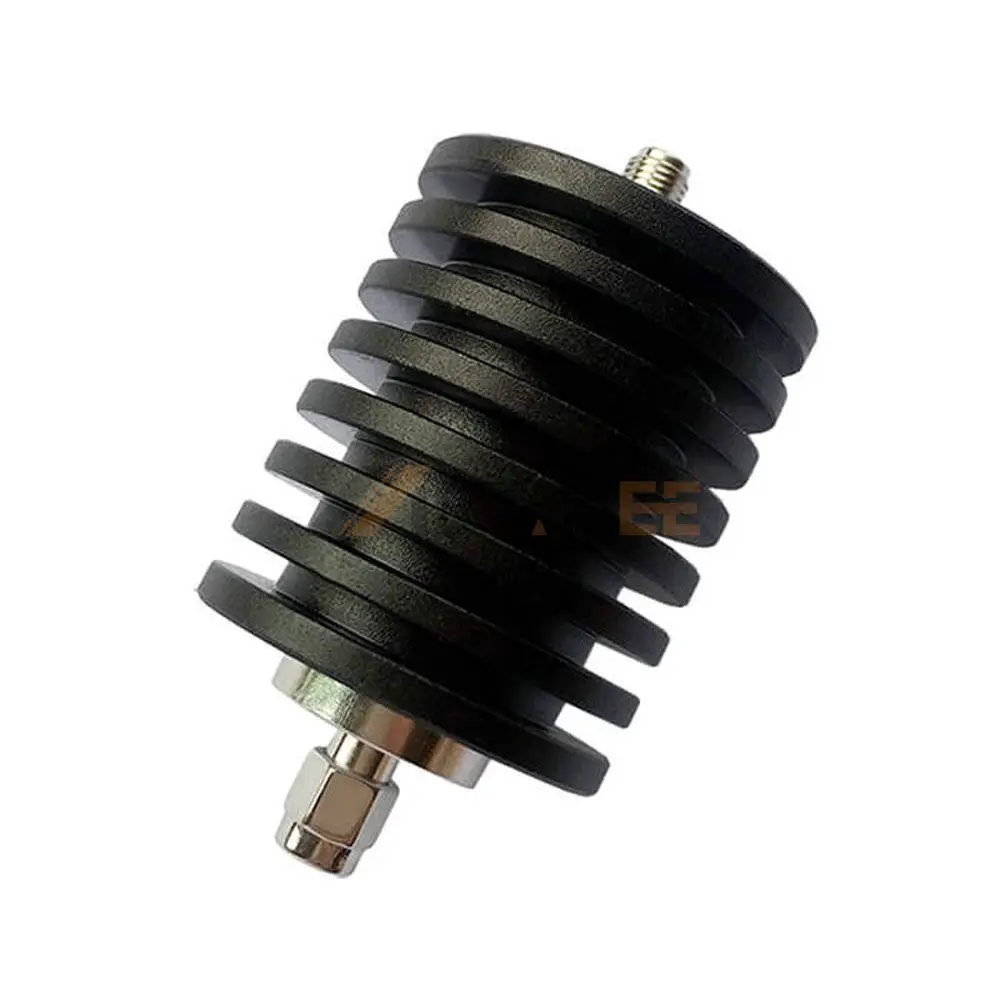

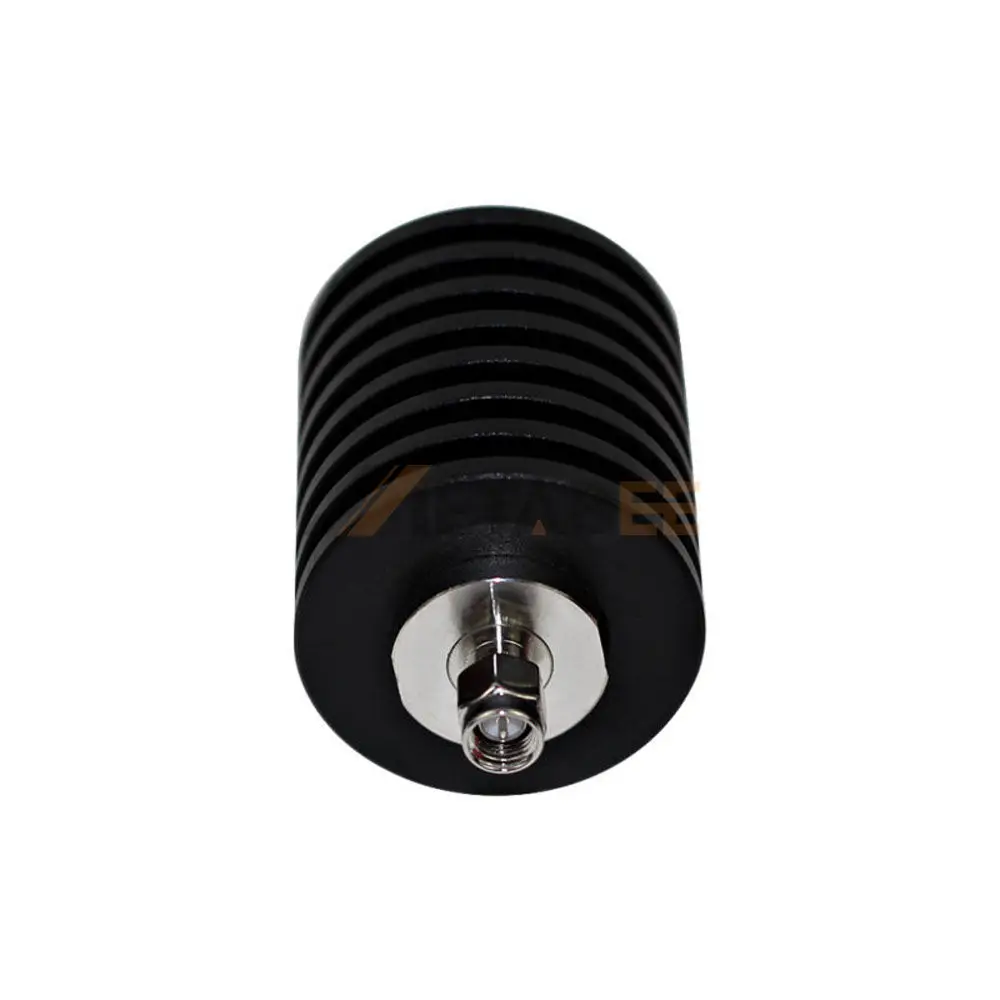

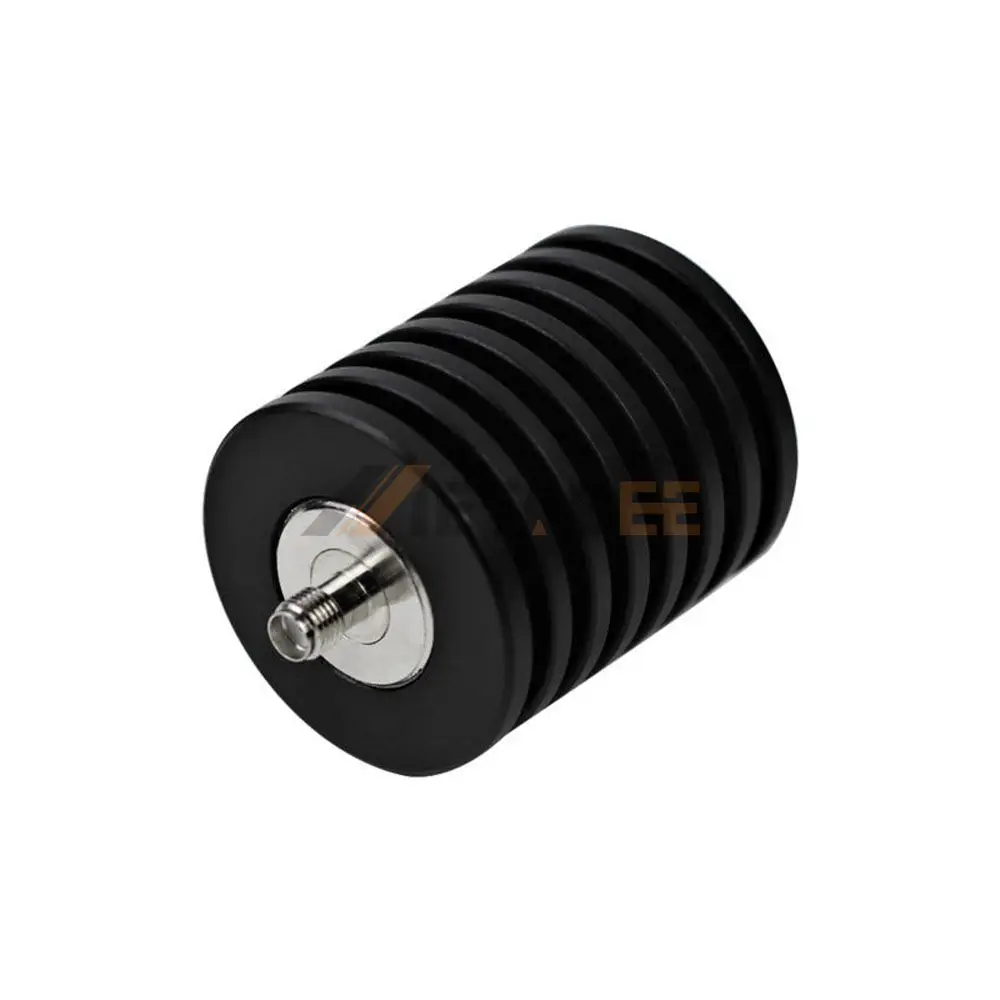

30W SMA Male to SMA Female Fixed RF Attenuator, DC to 4GHz
Introduction
The SMA attenuator is a high-performance passive component designed for precise signal reduction in RF applications. Operating from DC to 4GHz, this attenuator ensures minimal signal distortion with a low VSWR of 1.20:1 and a 50-ohm impedance match for optimal performance. Its rugged stainless steel housing provides durability, while the SMA male to SMA female configuration offers secure connectivity in various setups. With a 30W power handling capability, it is ideal for high-power systems requiring reliable attenuation.
Engineered for stability across a wide temperature range (-55°C to +125°C), this SMA attenuator is suitable for demanding environments, though its IP20 rating suggests indoor use.
Key Features:
- 30W power handling for high-power RF systems;
- DC to 4GHz frequency range for broad compatibility;
- 50Ω impedance ensures minimal signal reflection;
- Low VSWR (1.20:1) for improved signal integrity;
- Stainless steel housing for durability and shielding;
- SMA male to SMA female connectors for secure connections;
- Wide operating temperature (-55°C to +125°C) for versatile use.
Main Specifications:
| Part No.: | 30W-SMA-JK-4G | |
| Product Series: | SMA Attenuators | |
| Brand: | Metabee | |
| Connector 1: | SMA Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | SMA Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 30W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 30W SMA Male to SMA Female Fixed RF Attenuator:
- Wireless Communication Systems;
- Laboratory Testing;
- Satellite Communication;
- Radar Systems;
- Medical Devices;
- Military/Aerospace;
- Wi-Fi Networks;
- Broadcast Equipment;
- RFID Systems;
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
