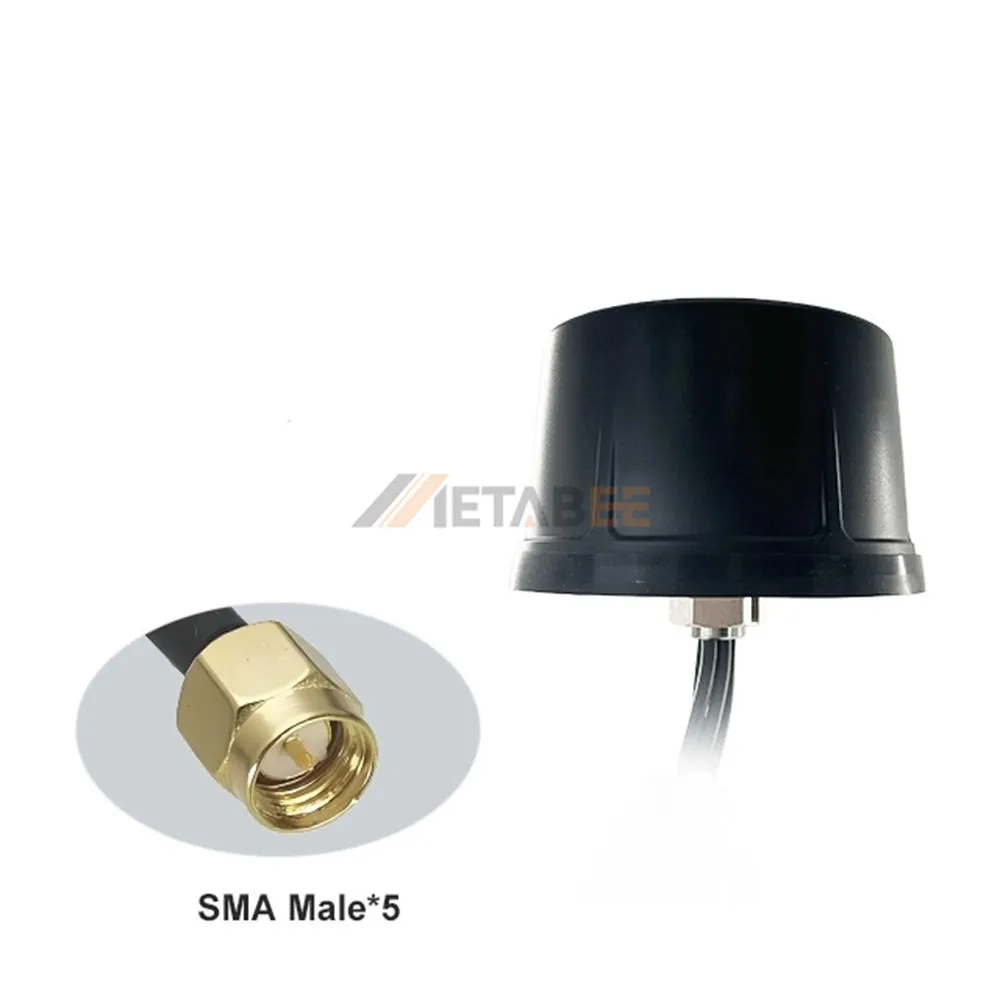

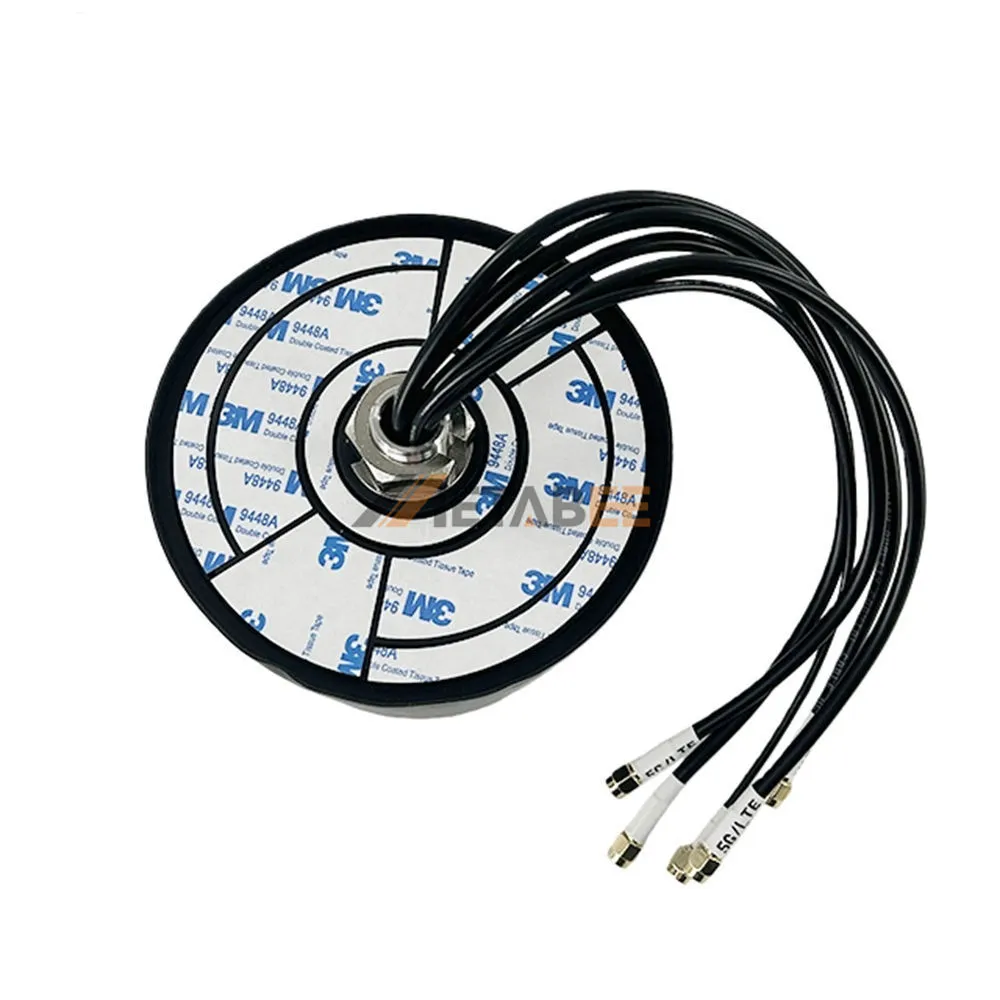

5-in-1 LTE 5G/WiFi/GPS/GNSS Multi-Band Combined Dome Antenna, 3/5dBi, 600-6000 MHz, SMA Male, IP67
Introduction:
The 5-in-1 LTE 5G/WiFi/GPS/GNSS Multi-Band Combined Dome Antenna is engineered for reliable high-performance wireless and positioning applications. Covering an ultra-wide frequency range of 600–6000 MHz, this antenna supports LTE, 5G, WiFi, GPS, and GNSS systems in a single compact solution. Its omni-directional radiation pattern and vertical polarization ensure stable 360-degree signal coverage for vehicles, industrial equipment, IoT terminals, and smart communication systems.
Designed for demanding outdoor and mobile environments, the antenna delivers 3/5dBi gain with excellent signal efficiency and a low VSWR of ≤1.5 for optimized transmission performance. The rugged IP67-rated housing protects against dust, water, and harsh weather conditions, while the SMA male connector enables secure and stable RF connectivity. Operating temperatures from -30°C to +70°C ensure dependable performance in extreme environments.
Key Features
- 5-in-1 combined LTE/5G/WiFi/GPS/GNSS antenna
- Wideband frequency coverage: 600–6000 MHz
- 3/5dBi gain for enhanced signal performance
- Omni-directional radiation pattern for 360° coverage
- IP67 waterproof and dustproof outdoor design
- SMA male connector with 50 Ohm impedance
General Information:
| Product No.: | YC-GP00067 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Casing Material | PC | |
| Size: | 140mm x 84mm | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 600-6000 MHz | |
| Gain: | 3/5dBi | |
| VSWR: | ≤1.5 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this 5-in-1 LTE 5G/WiFi/GPS/GNSS Combined Dome Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
