Introduction:
The RJ45 Magnetics Jack is a shielded 1×4 multi-port network interface designed for standard Ethernet applications. Reliable Fast Ethernet performance at 10/100 Base-T speeds remains consistent across the 0°C ~ +70°C operating temperature range. A robust nickel-plated brass shield encloses the black PA66 insulator to block electromagnetic interference effectively. Precise component alignment on the PCB depends on the integrated board guide during the THT soldering process. Visual link status is tracked through built-in green and orange LED indicators in this RJ45 magnetic jack. Furthermore, gold-plated phosphor bronze contacts maintain electrical resistance below 20 milliohms for flawless signal integrity. Secure mechanical termination uses a right-angle configuration for high-density layouts.
Key Features
- 1×4 Multi-port Profile: Connects four Ethernet devices using a single module.
- 10/100 Base-T Speed: Supports reliable Fast Ethernet data transmission rates.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Stable THT Mounting: Integrated board guide ensures secure PCB alignment.
- Low Resistance Contacts: Gold finish ensures conductivity below 20 milliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-4-88TX1-FSD-PG-L5-M36C-NRSP | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Orange |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

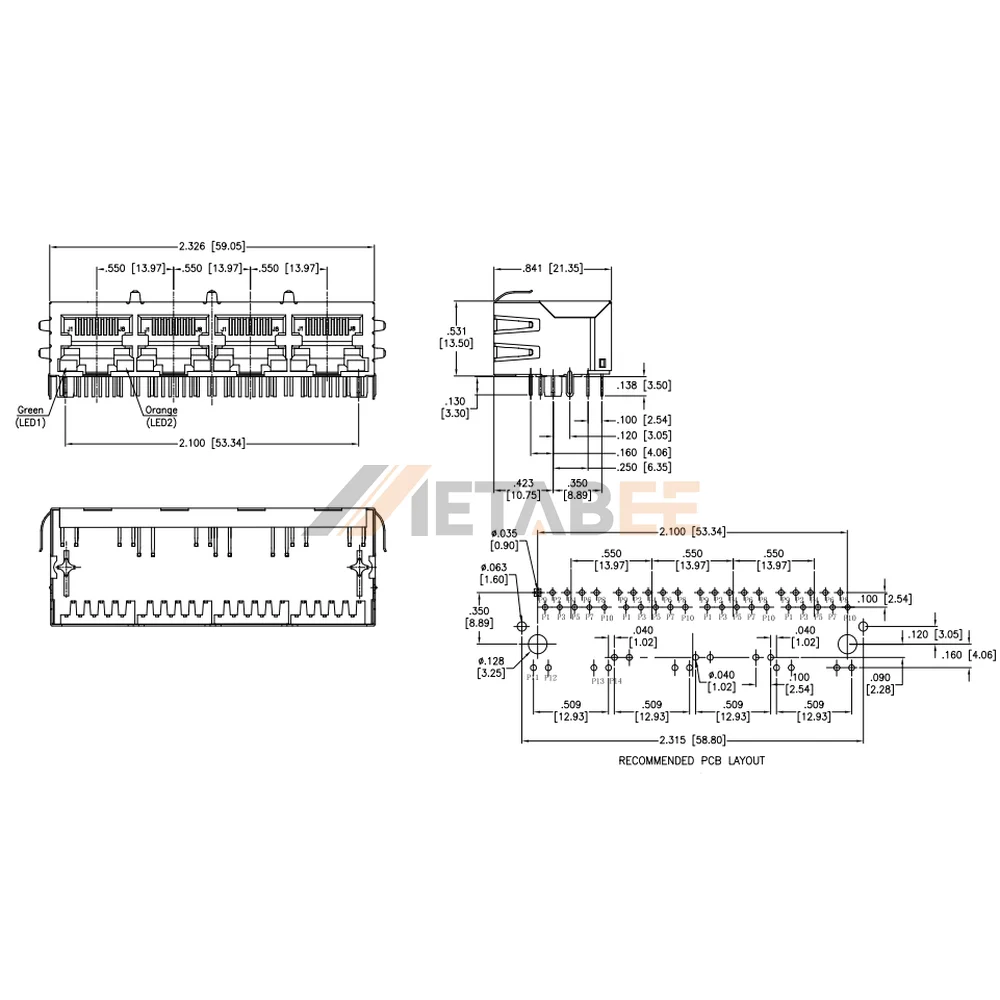

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
