Introduction:
This 3A smt spring contact pogo pin is a vertical surface mount connector designed for secure board-to-board electrical interfaces. It features gold plated brass components that provide a low contact resistance of 20 mohms while ensuring lasting protection against corrosion. The terminal supports a 12V DC rating and accommodates current up to 3A, depending on the specific model configuration. With a 1mm working stroke and 70g spring force, it maintains stable conductivity over a tested lifespan of 1,000,000 cycles. This pogo pin serves as a reliable power or signal link in compact automated assembly systems and portable electronic devices operating from -55°C to +125°C.
Key Features
- Ultra Durable: Tested for 1,000,000 cycles ensuring long mechanical life.
- SMT Assembly: Surface mount design enables efficient automated PCB production.
- High Current: Supports 3A current for efficient power delivery.
- Gold Plated: Gold finish prevents oxidation and maintains low resistance.
- Stable Contact: 70g force maintains consistent pressure over 1mm stroke.
Main Specifications:
General Information:

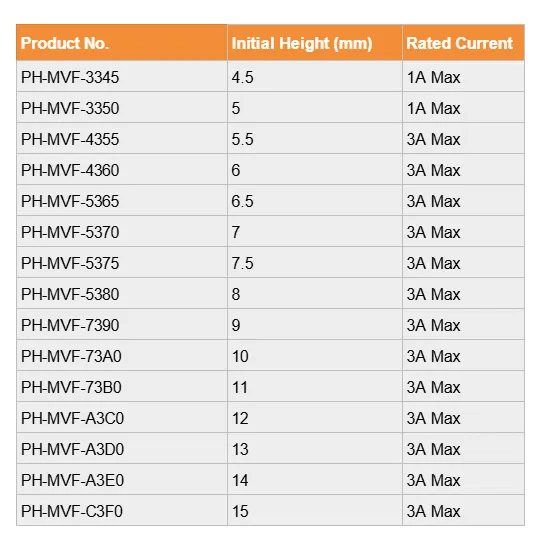

| Product No.: | PH-MVF-XXXX | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | Optional | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70gf | |
| Life Test: | 1,000,000 Cycles |
Electrical:
| Rated Current: | 1A Max/3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 20mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, 5u” Gold plated | |
| Barrel Material: | Brass, 5u” Gold plated | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -55°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
