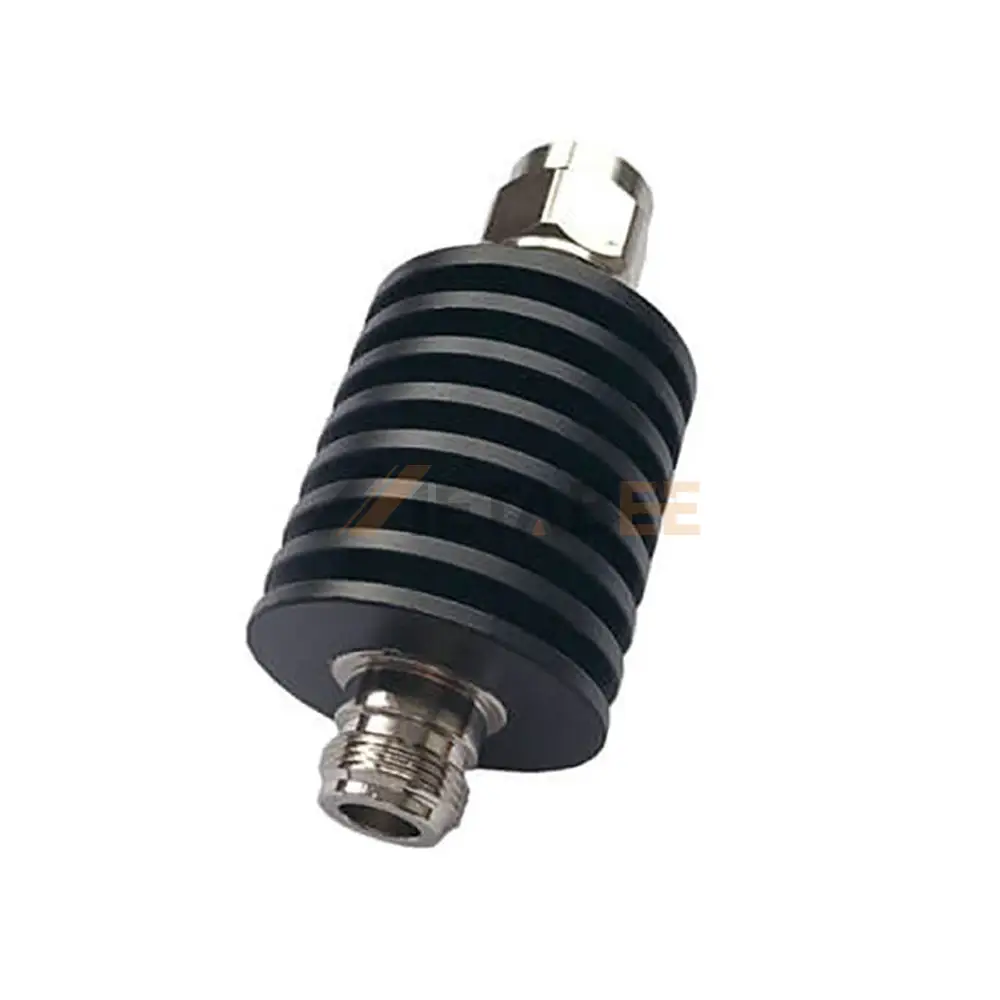

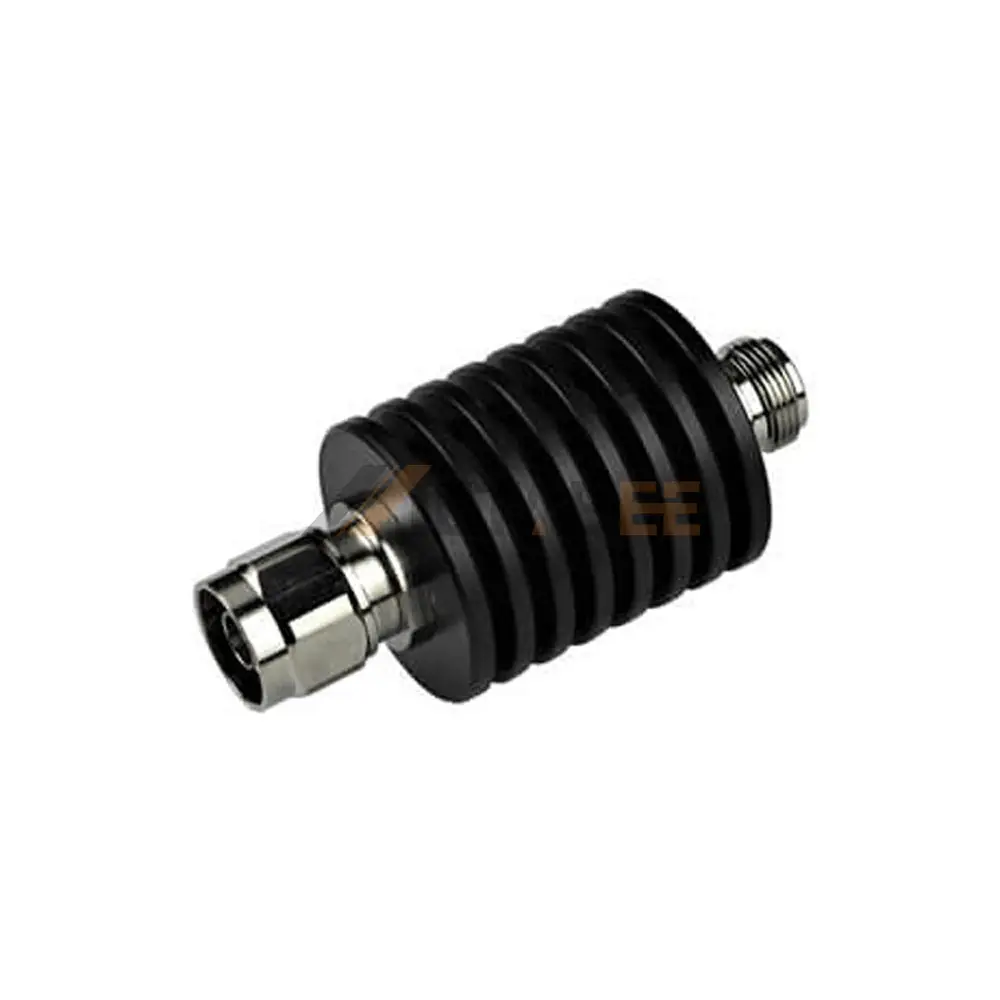

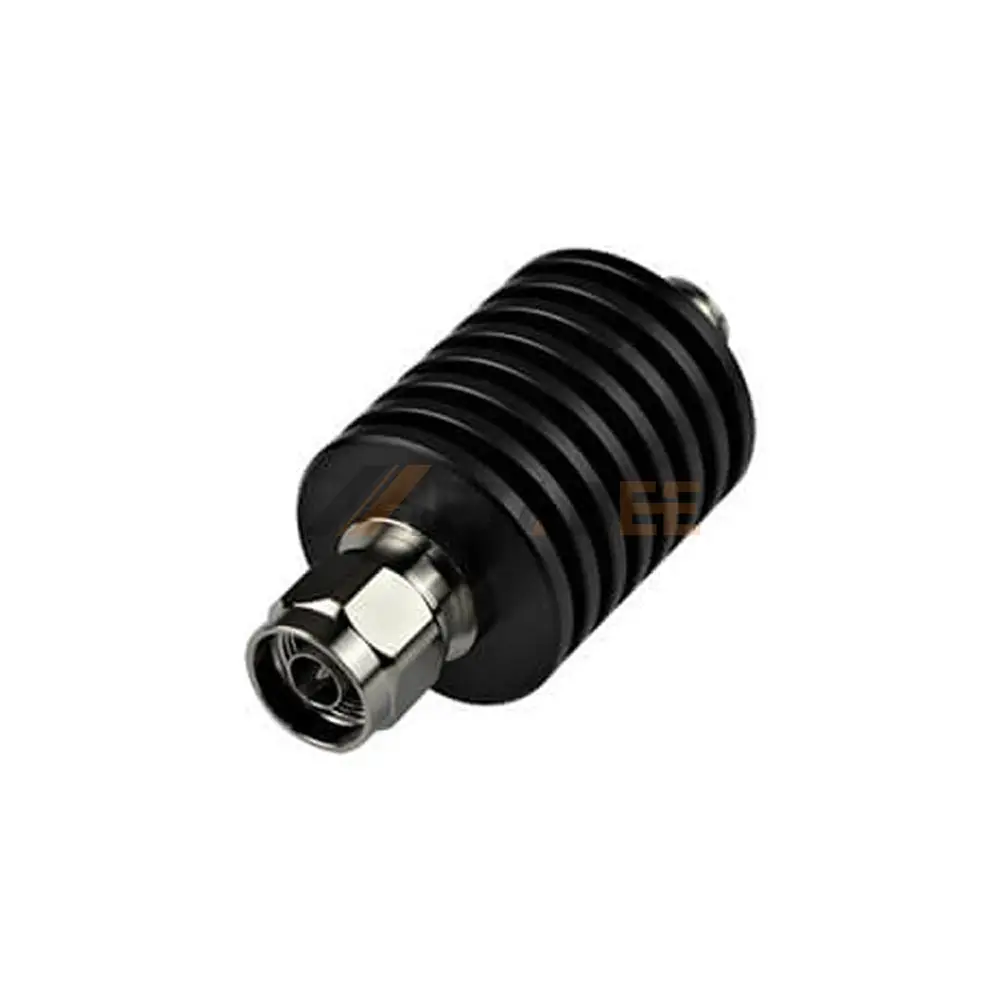

30W N-type Male to N-type Female RF Fixed Attenuator, DC to 4GHz
Introduction
The 30W N-type attenuator is a high-performance component designed for precise signal reduction in RF applications. With a frequency range of DC to 4GHz and a power handling capacity of 30W, this attenuator ensures minimal signal distortion while maintaining excellent impedance matching at 50 ohms. Its rugged stainless steel housing provides durability and reliable shielding, making it suitable for demanding environments. The N-type male to N-type female configuration offers seamless integration into coaxial systems, while the low VSWR of 1.20:1 guarantees optimal signal integrity.
Engineered for versatility, this attenuator operates across a wide temperature range of -55°C to +125°C, ensuring stable performance in extreme conditions. The IP20 protection rating safeguards against light environmental exposure, making it ideal for both indoor and controlled outdoor use. Whether for telecommunications, test equipment, or military applications, this fixed attenuator delivers consistent attenuation with high power efficiency.
Key Features:
- 30W power handling for robust performance.
- DC to 4GHz frequency range for broad compatibility.
- 50-ohm impedance ensures minimal signal reflection.
- N-type male to N-type female connectors for easy integration.
- Stainless steel housing for durability and shielding.
- Low VSWR (1.20:1) for superior signal integrity.
- Wide operating temperature (-55°C to +125°C) for extreme conditions.
Main Specifications:
| Part No.: | 30W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 30W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 30W N-type Male to N-type Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
