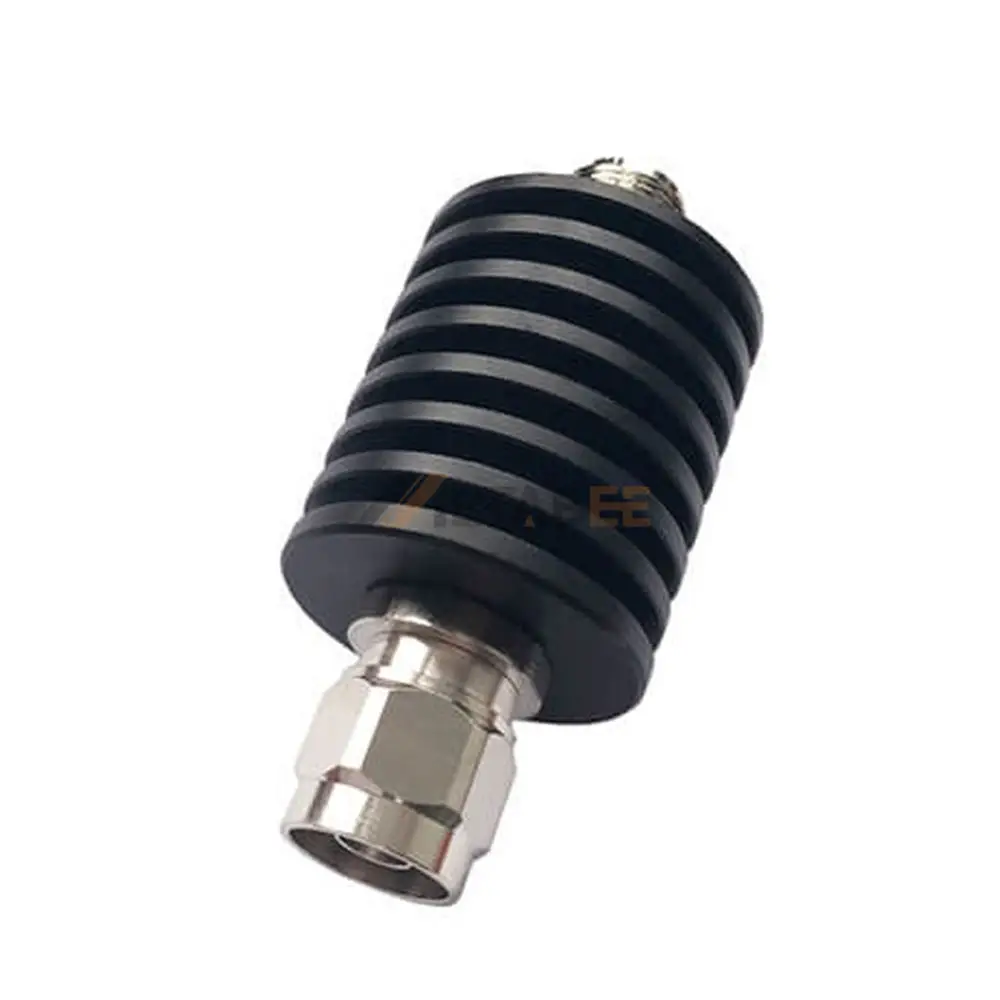

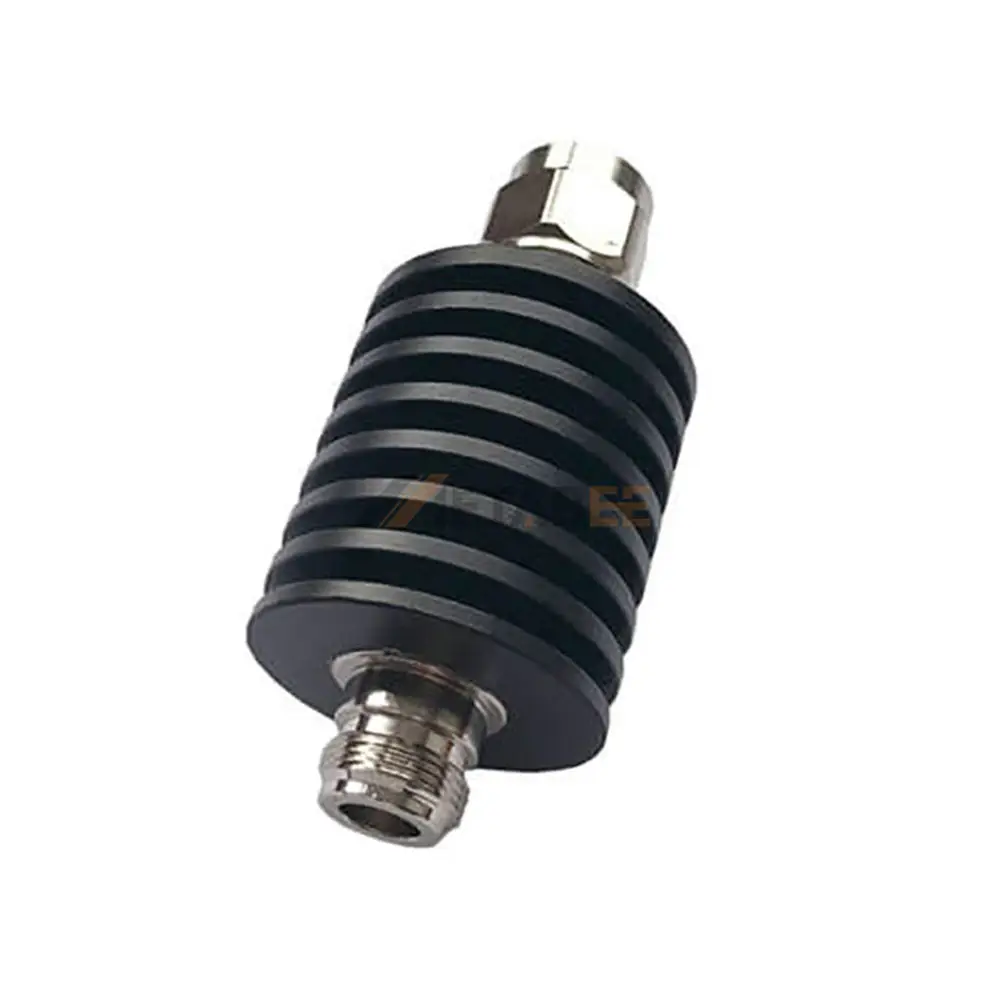

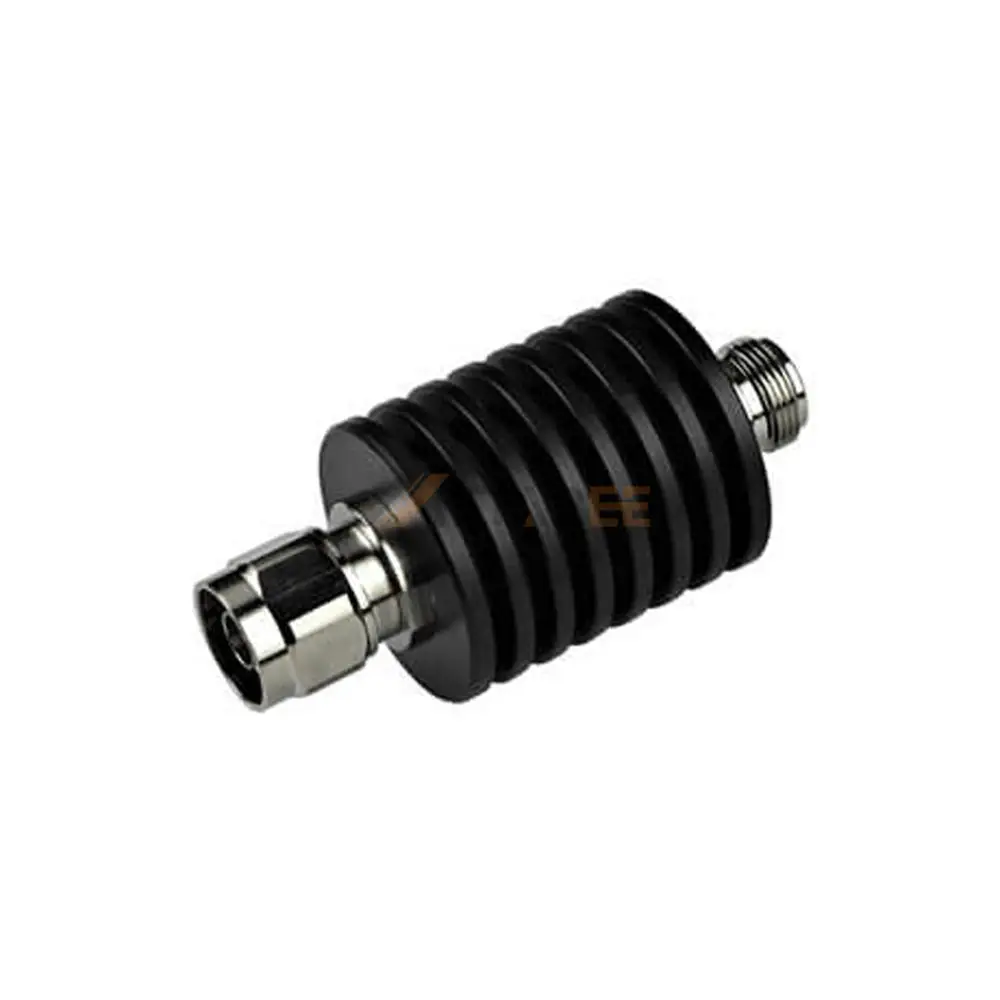

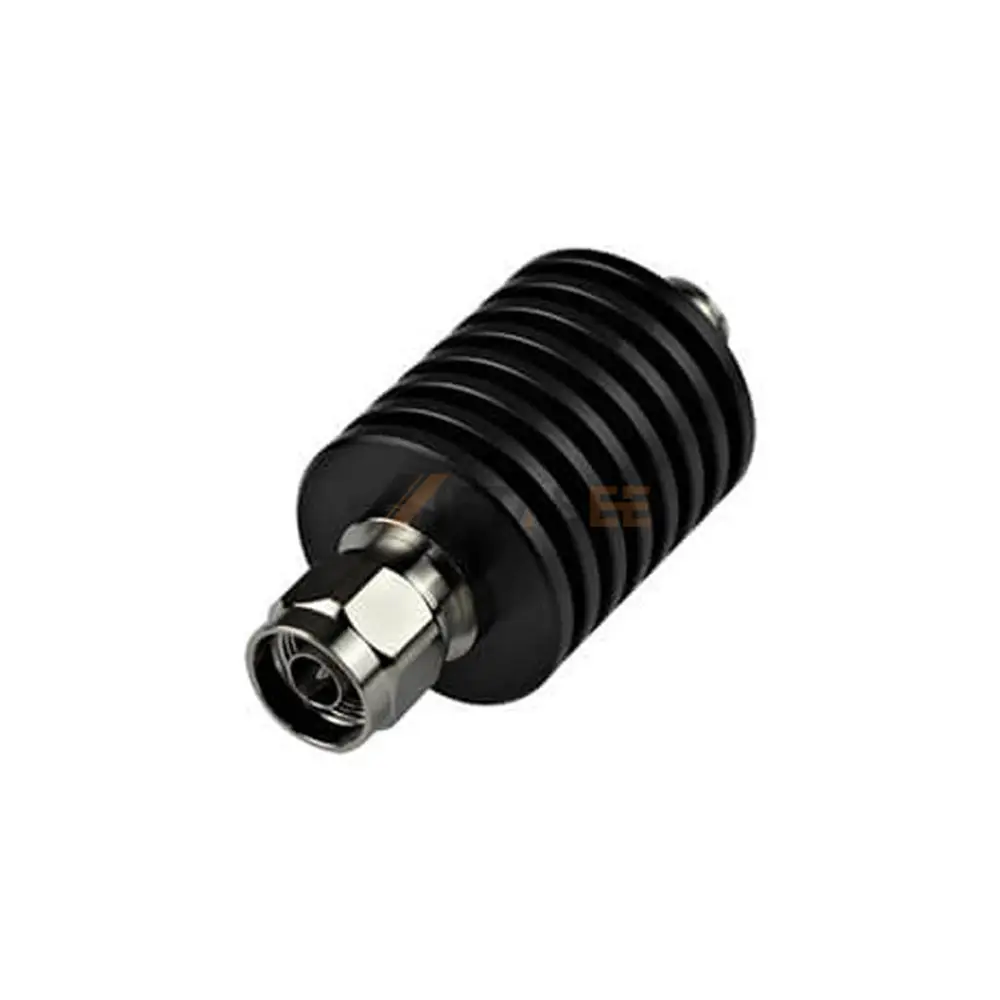

30W N-type Male to N-type Female RF Attenuator, DC to 3GHz
Introduction
The 30W N-type attenuator is a high-performance passive component designed for precise signal reduction in RF applications. With a frequency range of DC to 3 GHz and a power handling capacity of 30W, this attenuator ensures minimal signal distortion while maintaining a low VSWR of 1.20:1. Its 50-ohm impedance guarantees seamless integration into coaxial systems, providing reliable performance in test setups, telecommunications, and wireless infrastructure.
Constructed with stainless steel housing, this N-type attenuator offers superior durability and shielding. The N-type male to N-type female configuration ensures secure connections, while the IP20 rating provides basic protection against dust and moisture. Operating across a wide temperature range of -55°C to +125°C, it delivers stable performance in harsh environments.
Key Features:
- 30W Power Handling – Ideal for high-power RF applications.
- DC to 3 GHz Frequency Range – Broadband compatibility.
- 50-Ohm Impedance – Ensures minimal signal reflection.
- Low VSWR (1.20:1) – Enhances signal integrity.
- Stainless Steel Housing – Durable and corrosion-resistant.
- N-type Male to Female Connectors – Secure and reliable connections.
- Wide Operating Temperature (-55°C to +125°C) – Suitable for extreme conditions.
Main Specifications:
| Part No.: | 30W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 30W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 30W N-type Male to N-type Female RF Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
