Introduction:
The China-stacked RJ45 connector is a high-density 2×2 multi-port network interface designed for standard Ethernet applications. Reliable 10/100 Base-T data transmission remains consistent throughout the industrial temperature range from -40 to +85 degrees Celsius. A robust nickel-plated copper alloy shield encloses the hi-temp thermoplastic housing to block electromagnetic interference effectively. Precise component positioning on the PCB relies on the integrated board guide and solder retention features. Streamlined visuals are achieved through a no LED configuration in this China-stacked RJ45 connector. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20 milliohms. Secure mechanical termination uses a right-angle through hole configuration.
Key Features
- 2×2 Port Density: Connects four network devices using a single module.
- 10/100 Base-T Speed: Supports reliable Fast Ethernet data transmission rates.
- Industrial Temperature Range: Operates safely between -40 and 85 degrees Celsius.
- Full Metal Shielding: Blocks severe electromagnetic interference for clear signals.
- Secure THT Mounting: Board guides ensure precise and stable PCB alignment.

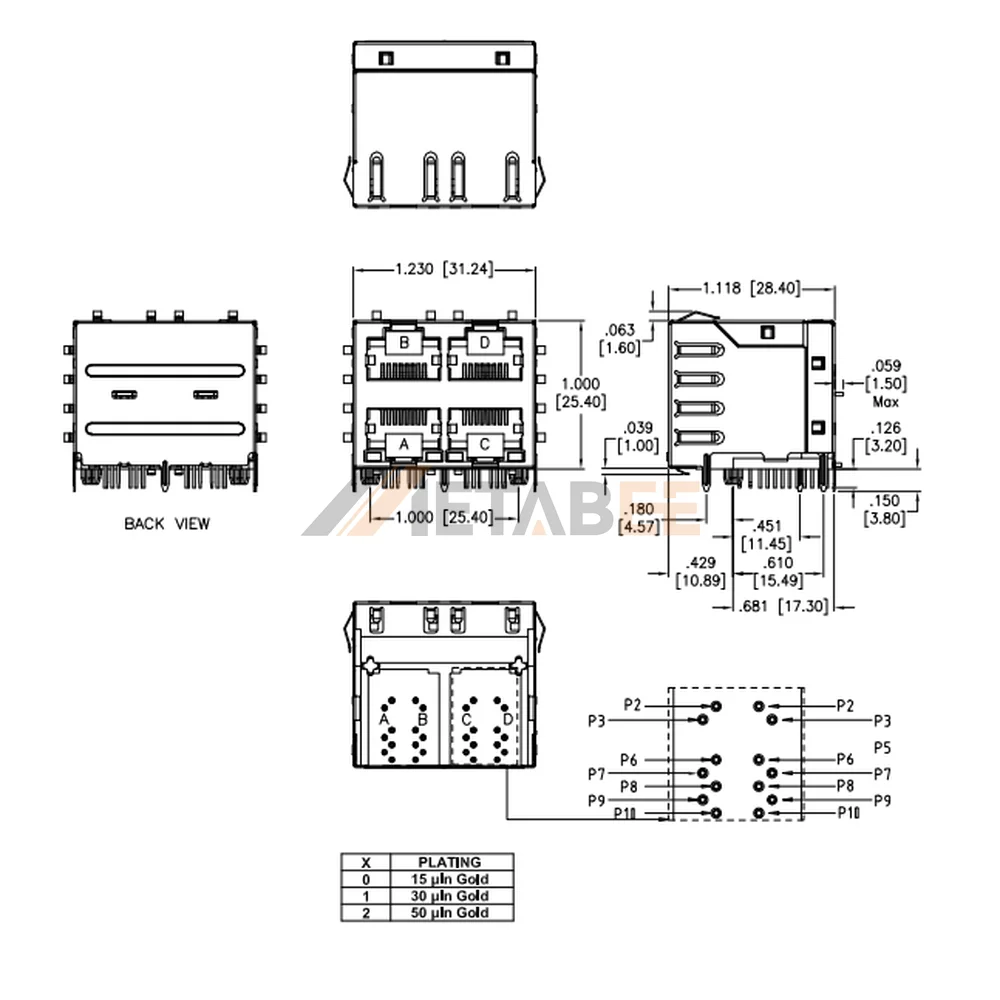

Main Specifications:
General Information:
| Product No.: | MTJG-4-88JX1-V-FS-PG-M200-HT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
