Introduction:

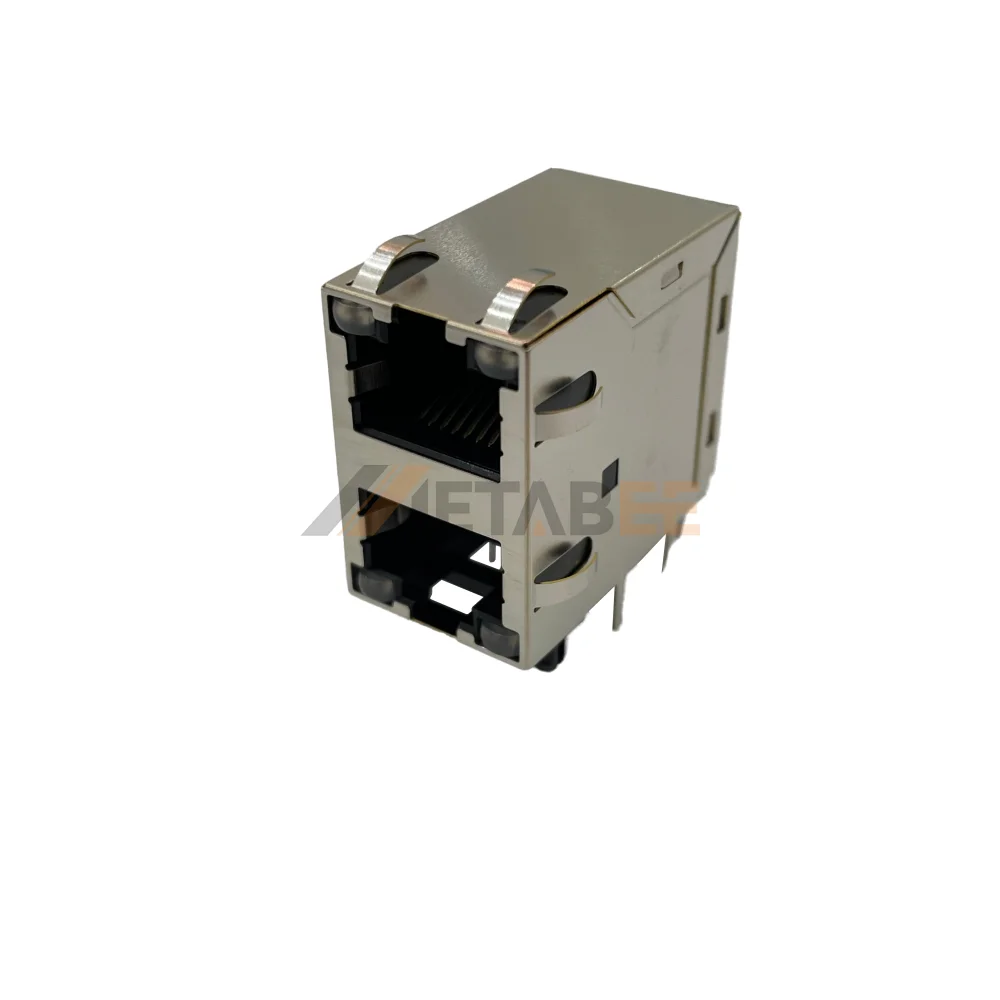

High-density networking systems rely on the stacked RJ45 connector, which provides two 8P8C ports in a compact vertical profile. Industrial applications benefit from the extreme resilience provided by the -40C to +85C temperature range. A robust nickel plated brass shield encloses the black PA66 insulator to block electromagnetic interference effectively during operation. Precise component positioning on the PCB depends on the right angle through hole termination design. Visual link feedback relies on dual green and yellow LED indicators positioned in the tab-up and down profile. Furthermore, gold flash over nickel phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms. These specialized modules frequently serve server hubs, industrial controllers, and network switches to optimize board space.
Key Features
- Stacked 2×1 Configuration: Facilitates two vertical network connections side-by-side.
- Industrial Temperature Range: Operates reliably between -40C and +85C.
- Full Brass Shielding: Blocks severe electromagnetic interference for signals.
- Integrated Status LEDs: Dual-color indicators track precise link activity.
- Stable THT Mounting: Ensures secure and precise mechanical board retention.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88JX1-FSG-PG-L16 | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Stacked | |
| Latch Direction: | Up & Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green/Yellow, Right: Green/Yellow |
Electrical:
| Rated Voltage: | 125VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
