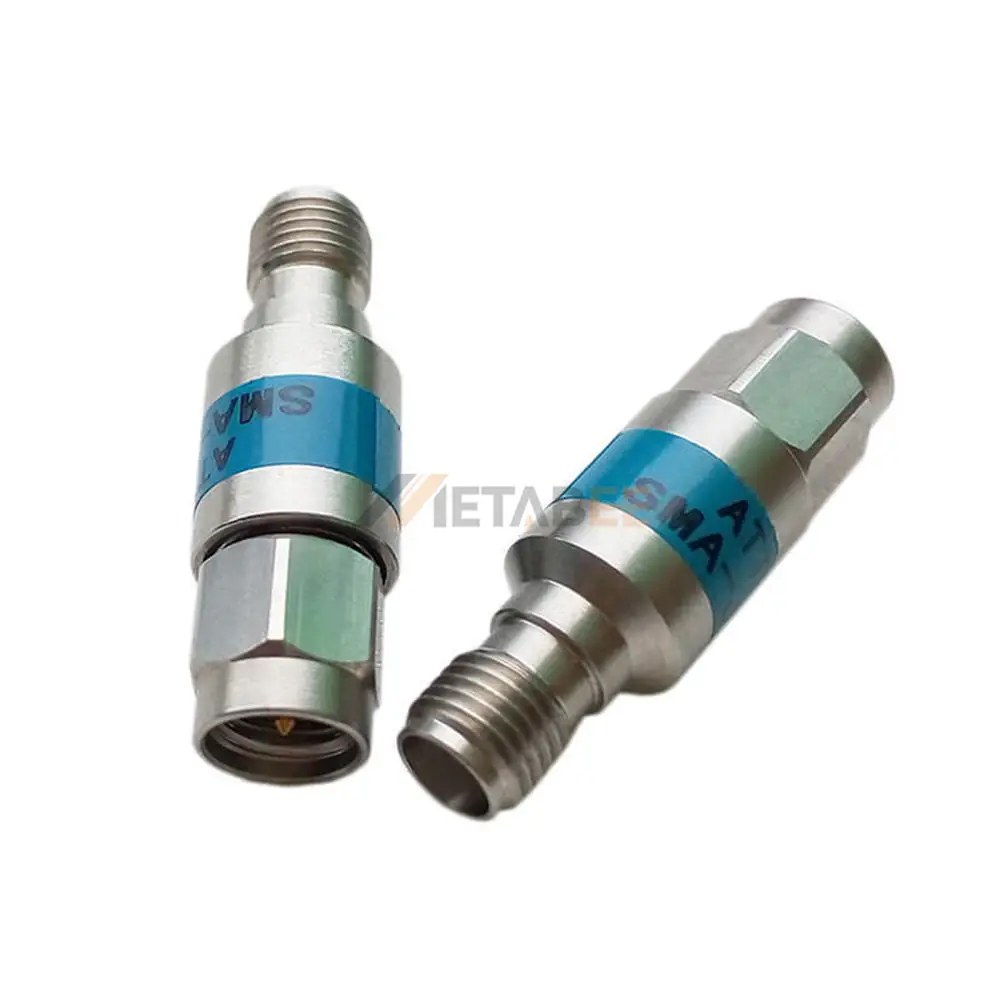

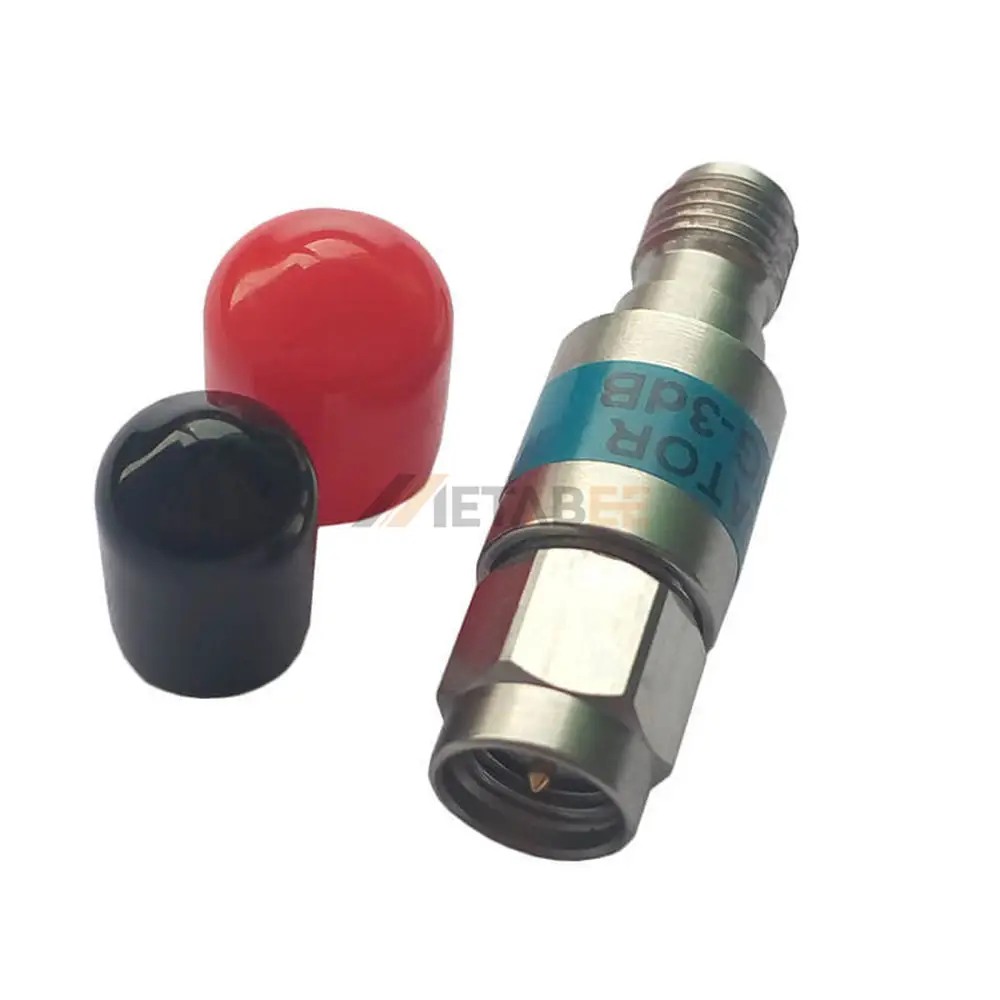

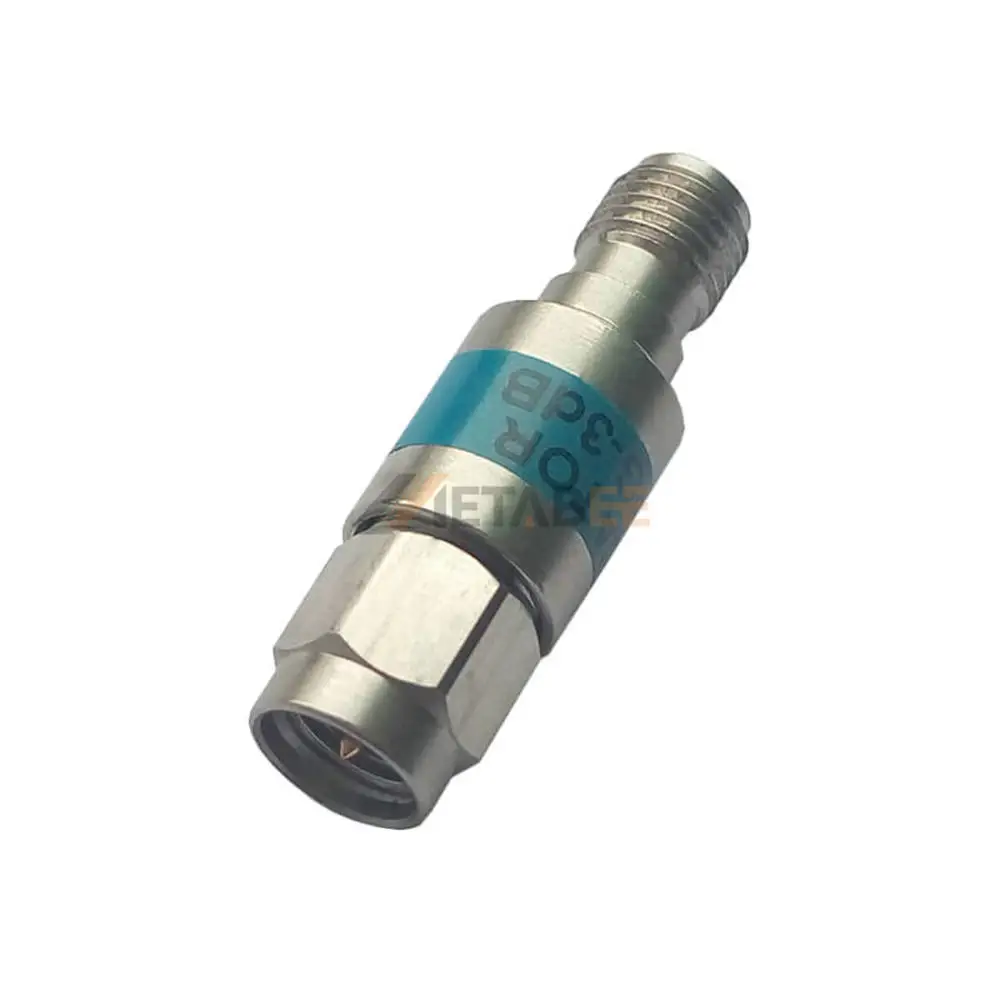

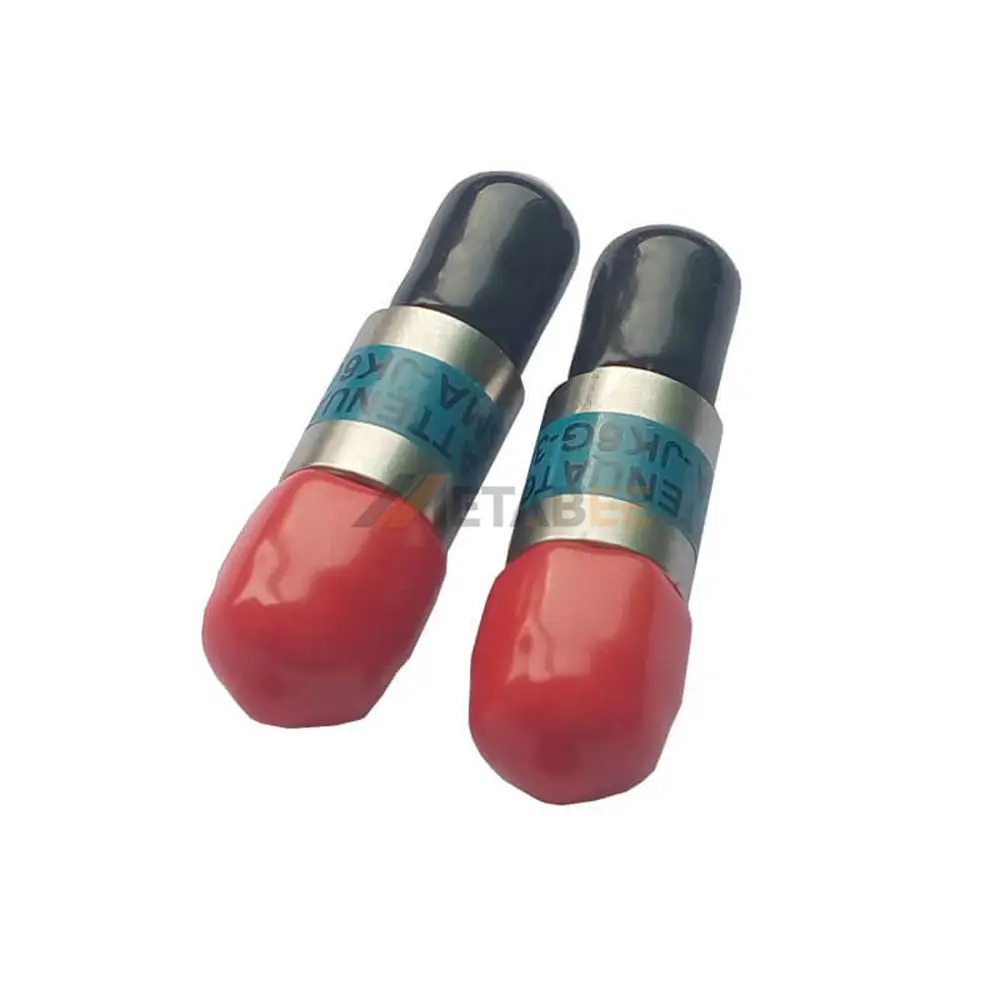

2W SMA Male to SMA Female RF Fixed Attenuator, DC to 6GHz

2W SMA Male to SMA Female RF Fixed Attenuator, DC to 6GHz

Introduction

The SMA attenuator is designed to provide precise signal attenuation in RF applications, offering reliable performance from DC to 6 GHz. Constructed with SMA male and SMA female connectors, both featuring stainless steel housing, this attenuator is built for durability and consistent signal quality. With a power rating of 2W and a low VSWR of 1.20:1, it ensures minimal signal loss and optimal performance in a wide range of RF systems.

Operating efficiently within a temperature range of -55°C to +125°C, the IP20-rated attenuator provides reliable operation in harsh environments, making it ideal for various industrial and communication applications. The 50-ohm impedance ensures compatibility with most RF devices, and its compact design allows for seamless integration into systems with limited space.

Key Features:

• Power rating of 2W for reliable signal attenuation.
• Frequency range of DC-6 GHz for versatile RF applications.
• SMA male to SMA female connectors with stainless steel housing for durability.
• Low VSWR of 1.20:1 for minimal signal reflection.
• Temperature range of -55°C to +125°C for reliable performance in extreme conditions.

Main Specifications:

Applications of this 2W SMA Male to SMA Female RF Fixed Attenuator:

• Wireless Communication Systems;
• Laboratory Testing;
• Satellite Communication;
• Radar Systems;
• Medical Devices;
• Military/Aerospace;
• Wi-Fi Networks;
• Broadcast Equipment;
• RFID Systems;

We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
