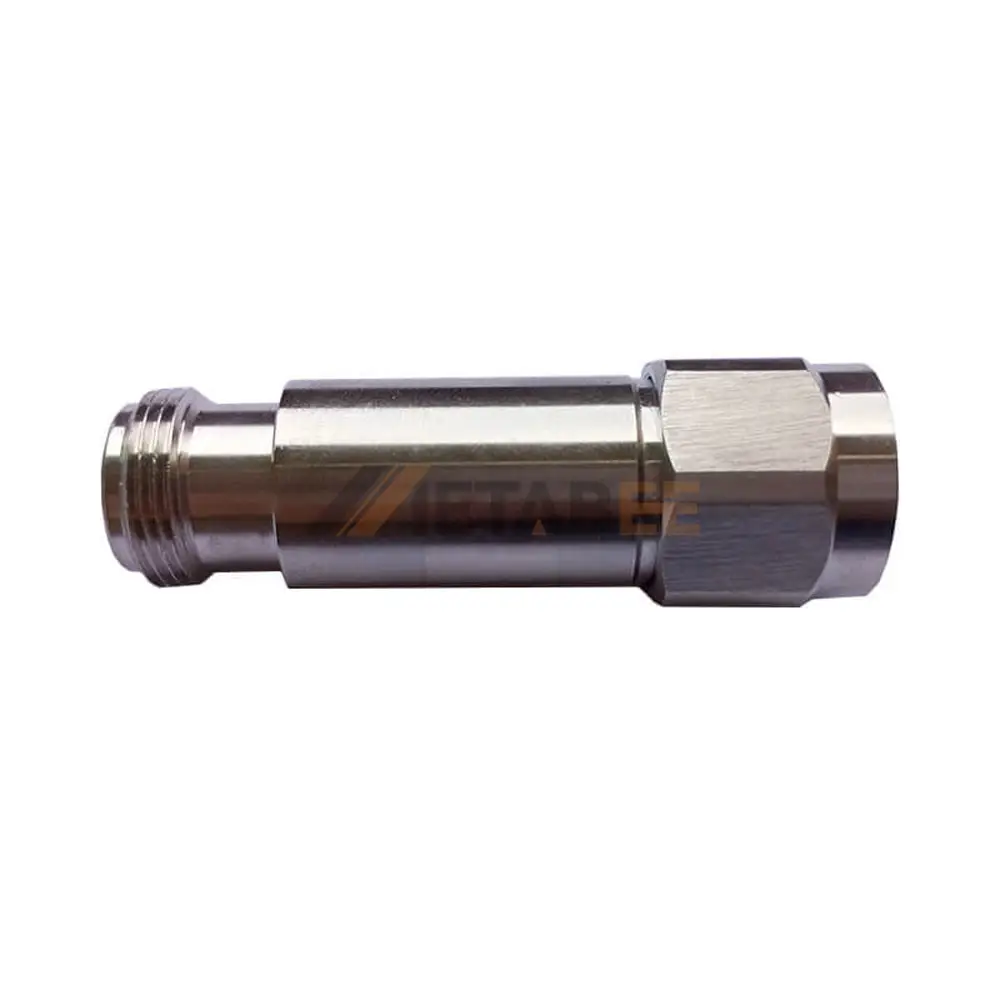

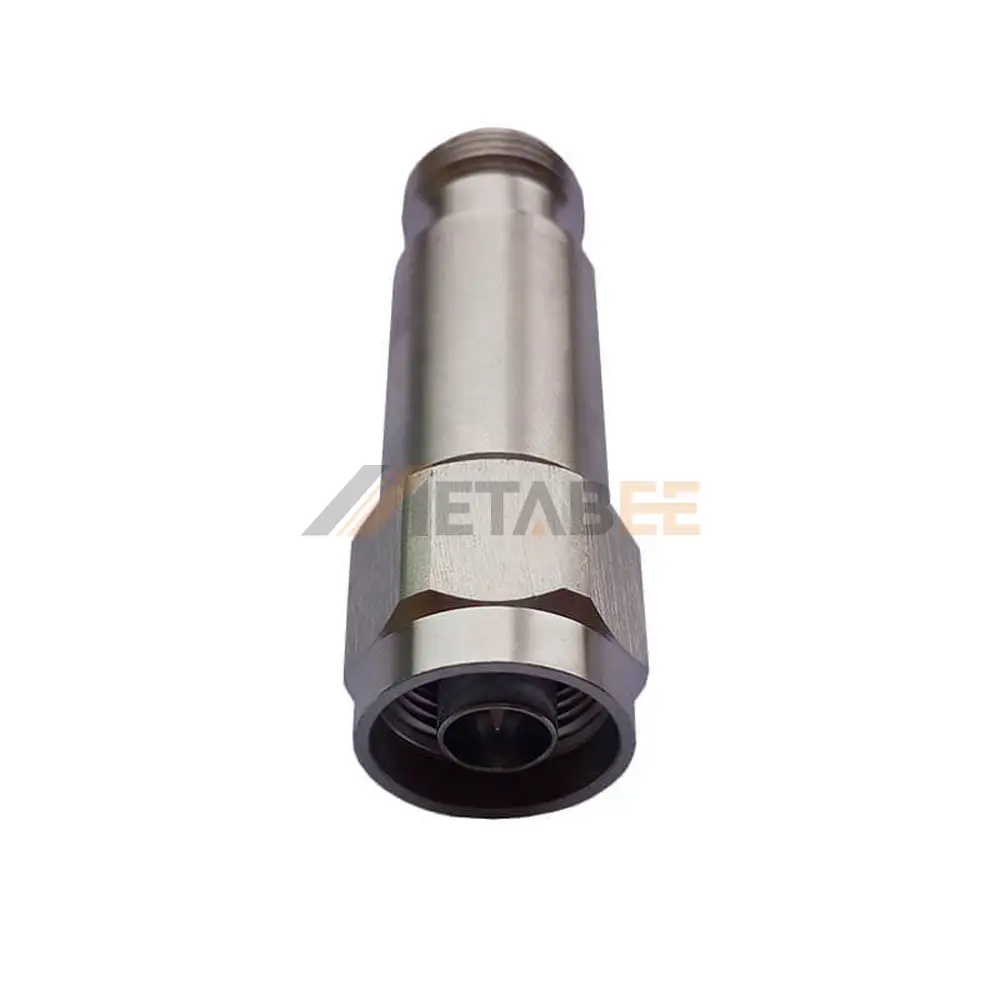

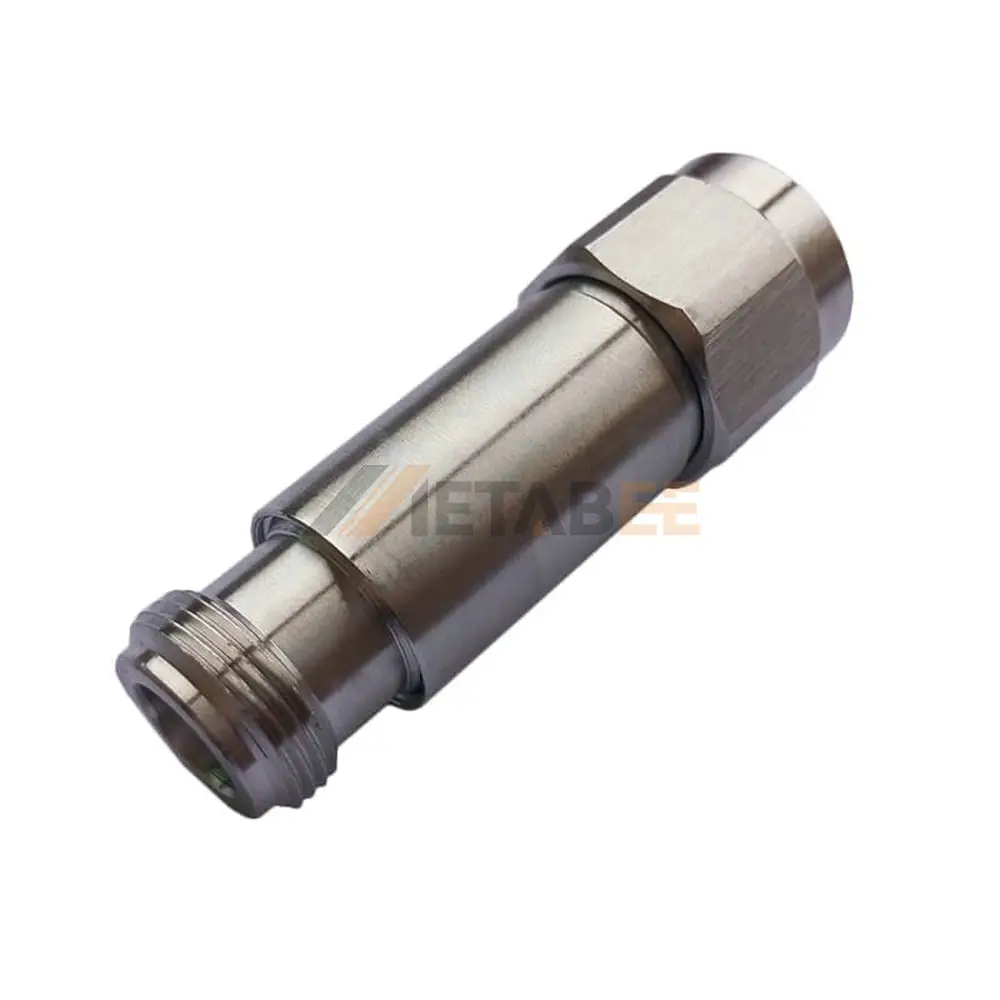

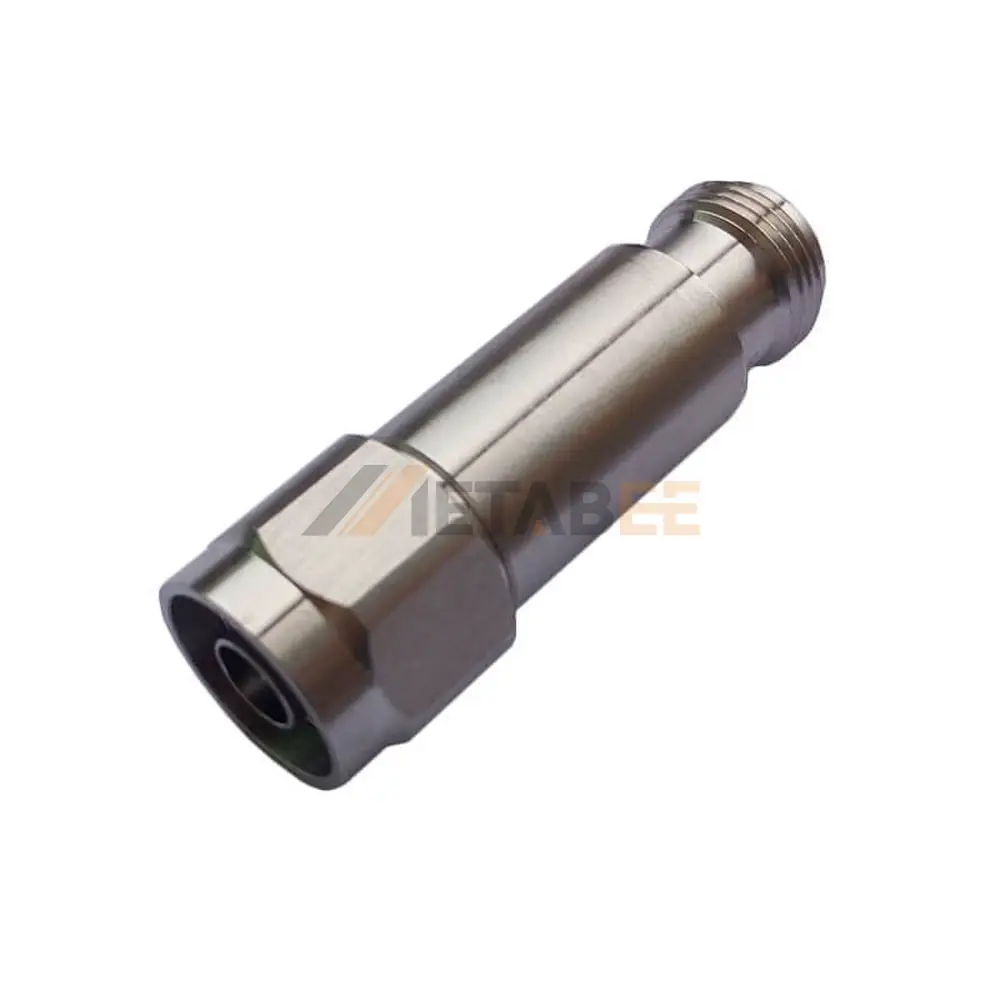

2W N-type Male to N-type Female Low Power Coaxial Fixed Attenuator, DC to 4GHz
Introduction
This N-type attenuator is designed to deliver reliable RF signal attenuation from DC to 4GHz. Engineered for precise power control in low-power RF systems, it features robust stainless steel housing and a 50-ohm impedance for consistent performance across broadband applications. Its compact, durable design ensures stability in demanding environments.
With a maximum VSWR of 1.20:1, this fixed attenuator ensures minimal signal reflection, making it ideal for lab testing, communication systems, and signal conditioning. The IP20 protection rating and a wide operating temperature range of -55°C to +125°C make it suitable for both indoor industrial and controlled-environment use.
Key Features:
- Rated power: 2 Watts.
- Frequency range: DC to 4GHz.
- Connector type: N-type male to N-type female.
- Stainless steel housing for enhanced durability.
- Impedance: 50 Ohm for standard RF compatibility.
- VSWR: Low reflection with 1.20:1 max.
- IP20 rated, operating from -55°C to +125°C.
Main Specifications:
| Part No.: | 2W-N-JK-4G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 2W | |
| Attenuation: | 1DB, 2DB, 3DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 2W N-type Male to N-type Female Low Power Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
