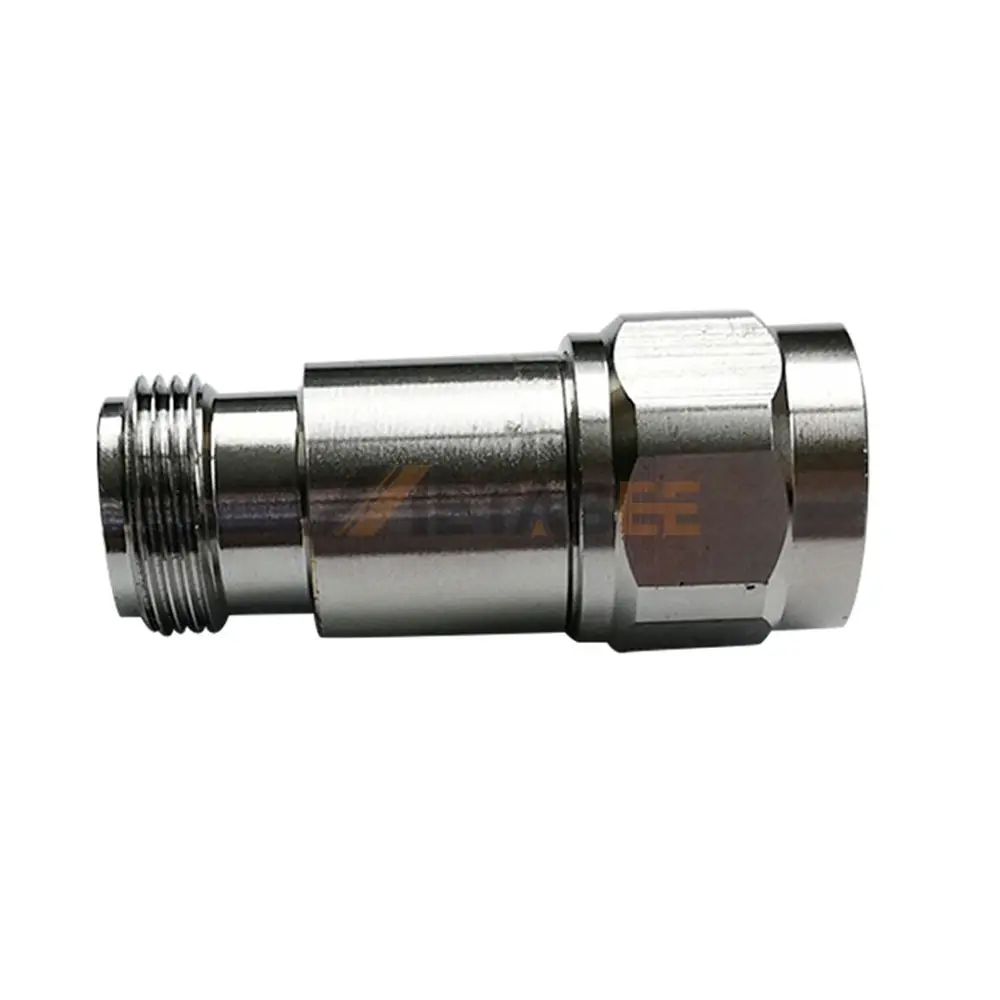

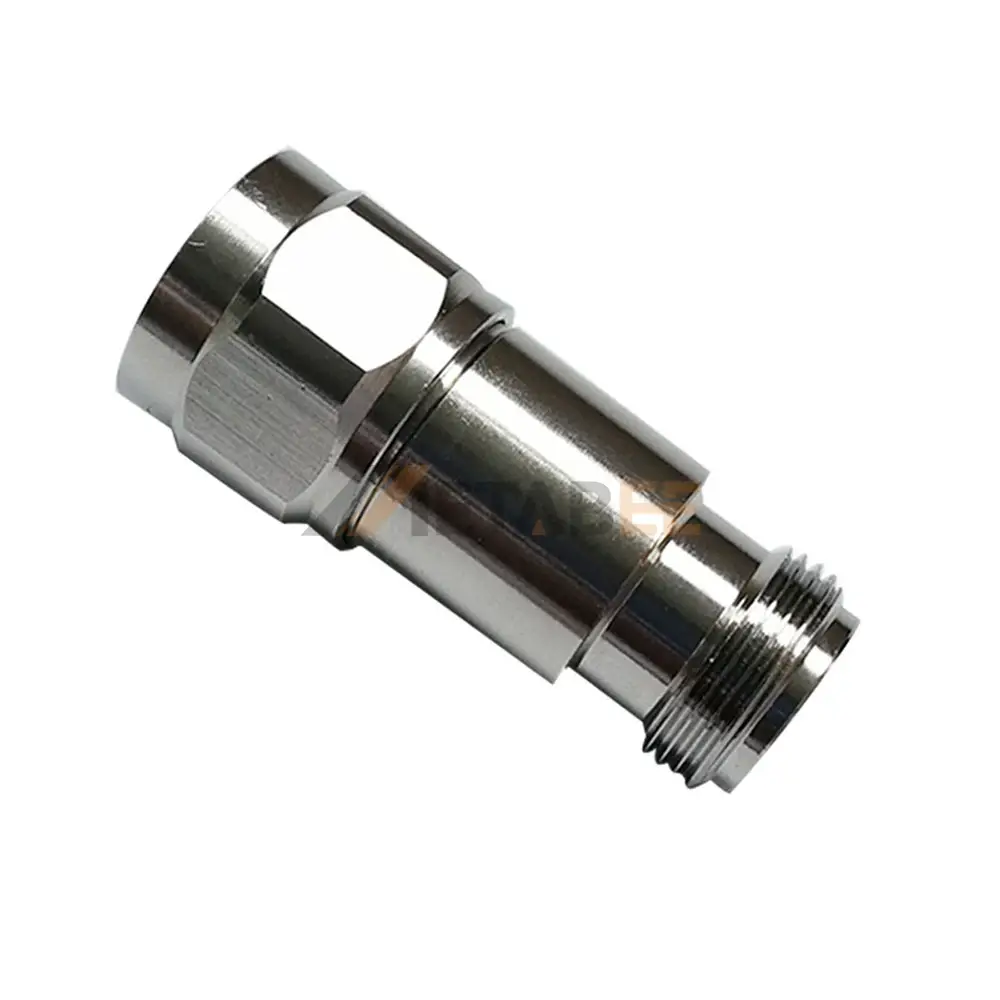

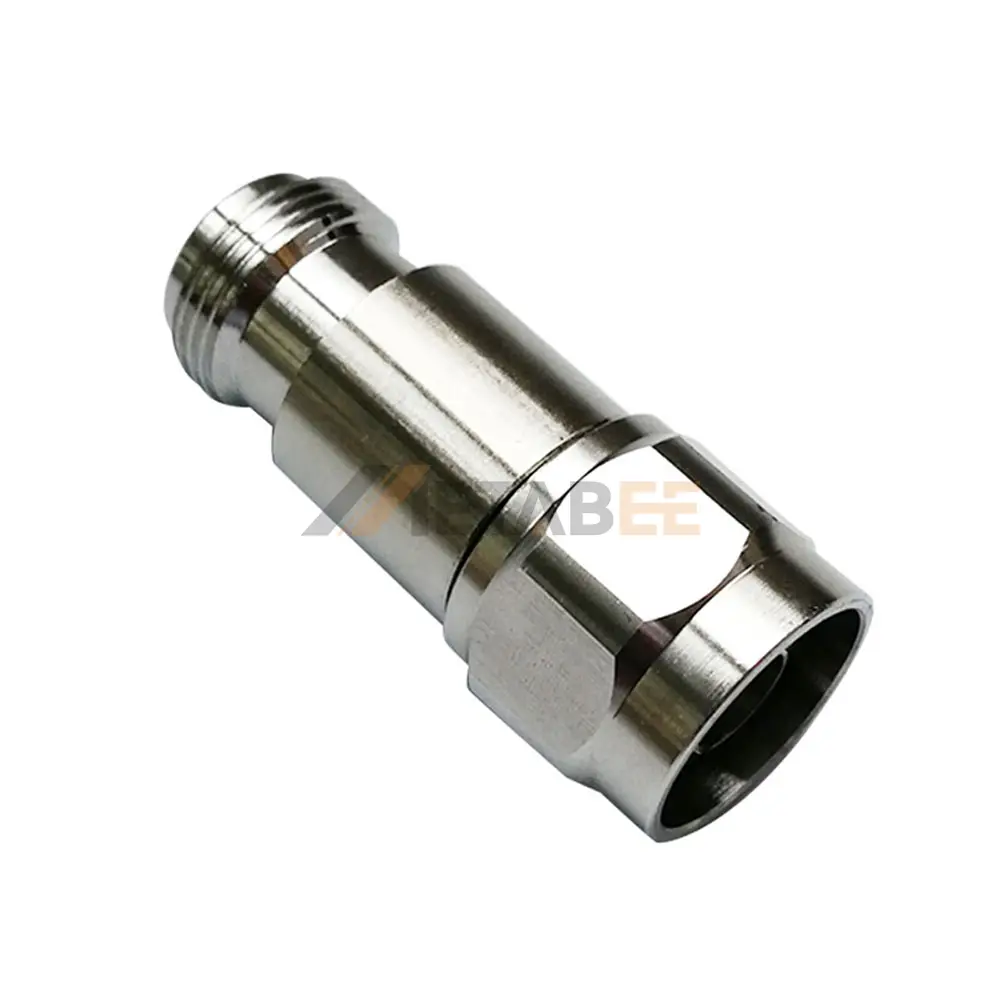

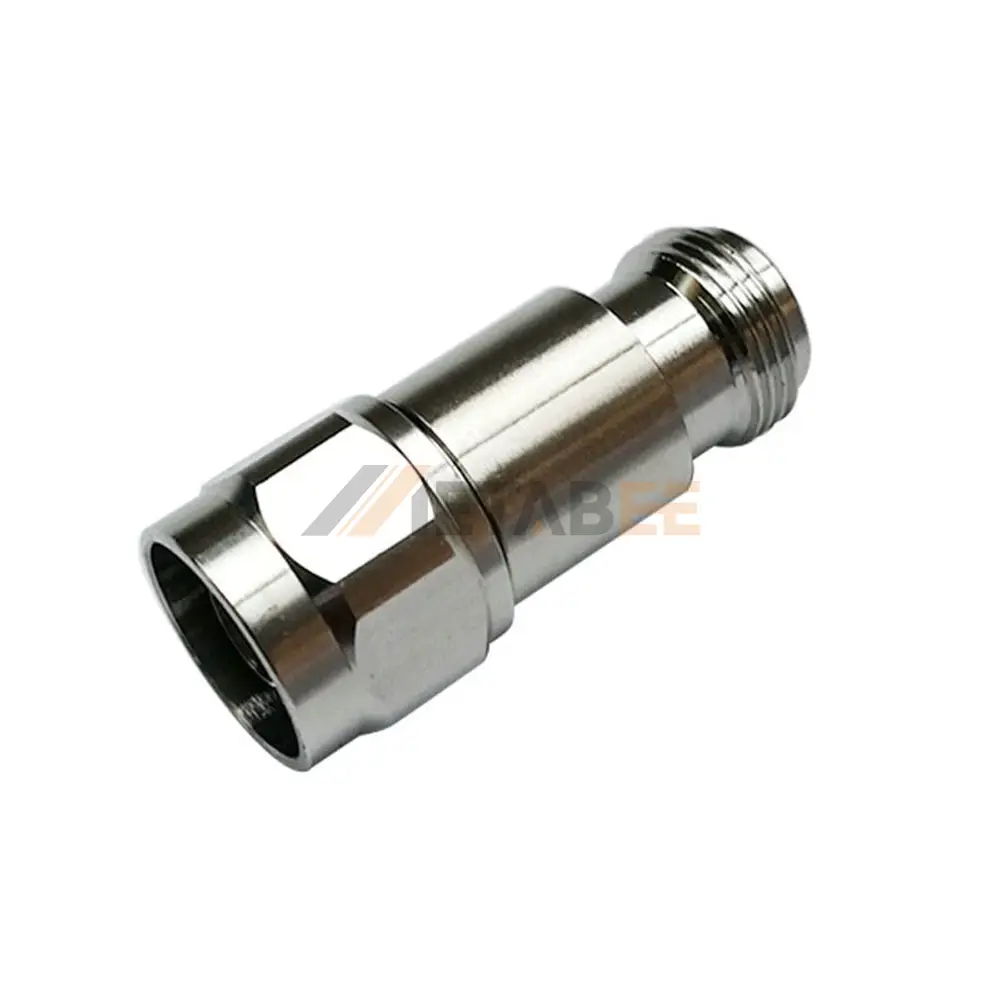

2W N-type Male to N-type Female Fixed RF Attenuator, DC to 6GHz
Introduction
The N-type attenuator is a high-performance passive component designed for precise signal reduction in RF and microwave applications. Operating within a broad frequency range of DC to 6 GHz, this attenuator ensures minimal signal distortion with a low VSWR of 1.20:1 and a power handling capacity of 2W. It’s 50-ohm impedance guarantees seamless integration into coaxial systems, while the stainless steel housing provides durability and reliable shielding against interference.
Featuring an N-type male connector on one end and an N-type female connector on the other, this attenuator offers secure, low-loss connections for various RF setups. It is built to withstand harsh environments, with an operating temperature range of -55°C to +125°C and an IP20 protection rating, making it suitable for both industrial and laboratory use.
Key Features:
- Fixed RF attenuator – Ensures consistent signal reduction.
- N-type male to N-type female connectors – Robust stainless steel construction.
- 50-ohm impedance – Ideal for coaxial systems.
- 2W power handling – Reliable performance under load.
- DC to 6 GHz frequency range – Wideband compatibility.
- Low VSWR (1.20:1) – Minimizes signal reflection.
- Operating temperature: -55°C to +125°C – Suitable for extreme conditions.
Main Specifications:
| Part No.: | 2W-N-JK-6G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 2W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 6 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 2W N-type Male to N-type Female Fixed RF Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
