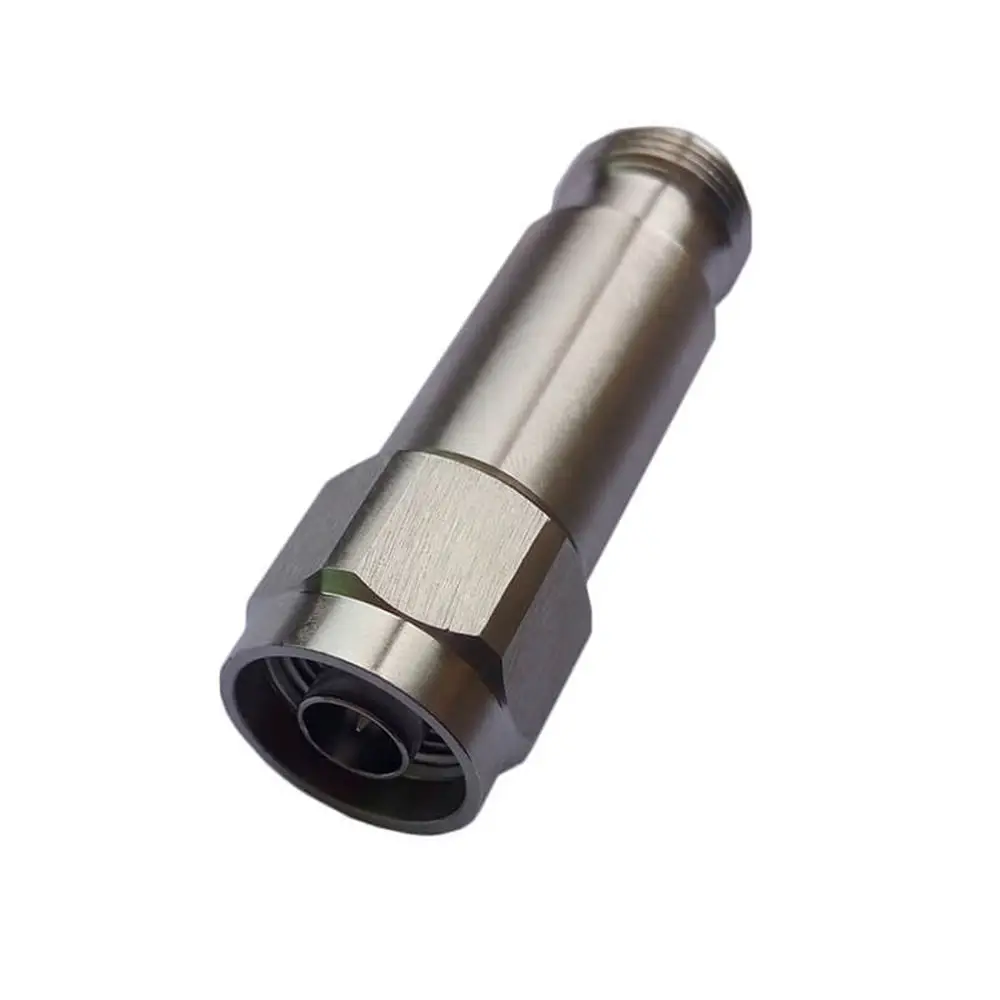

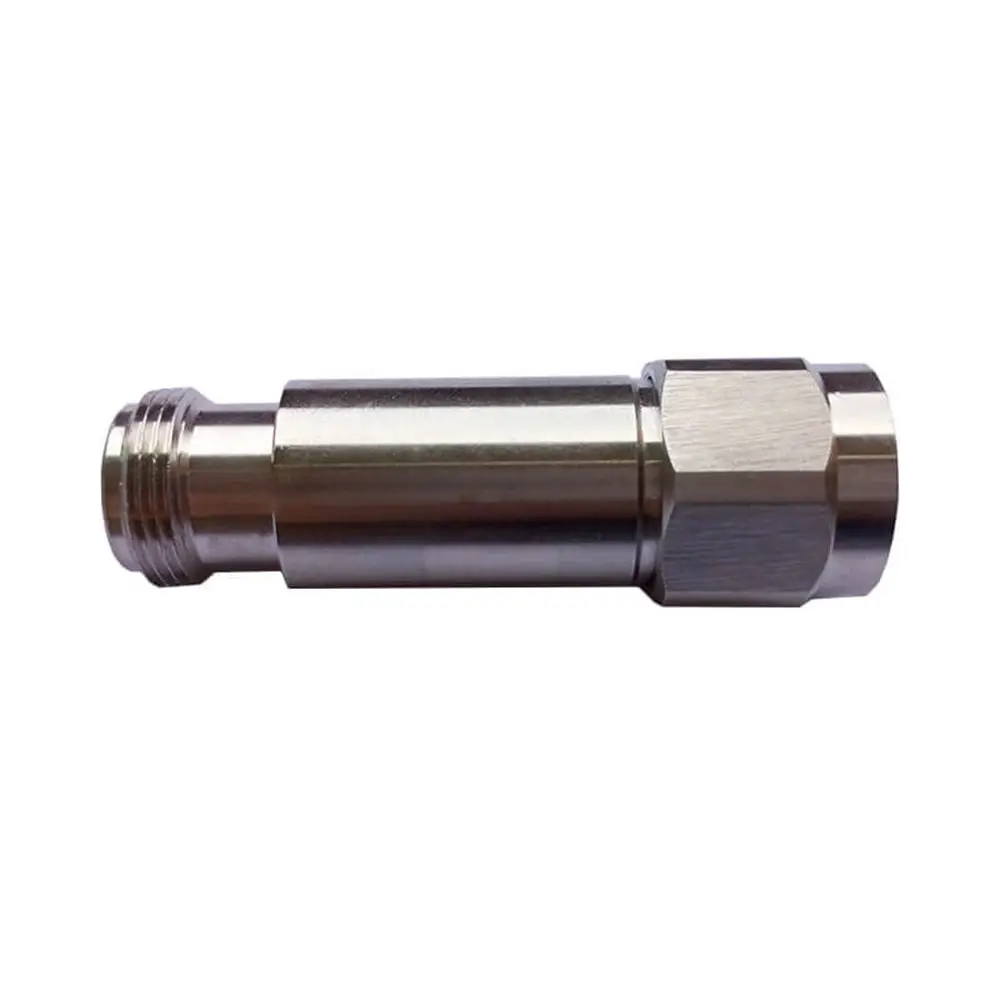

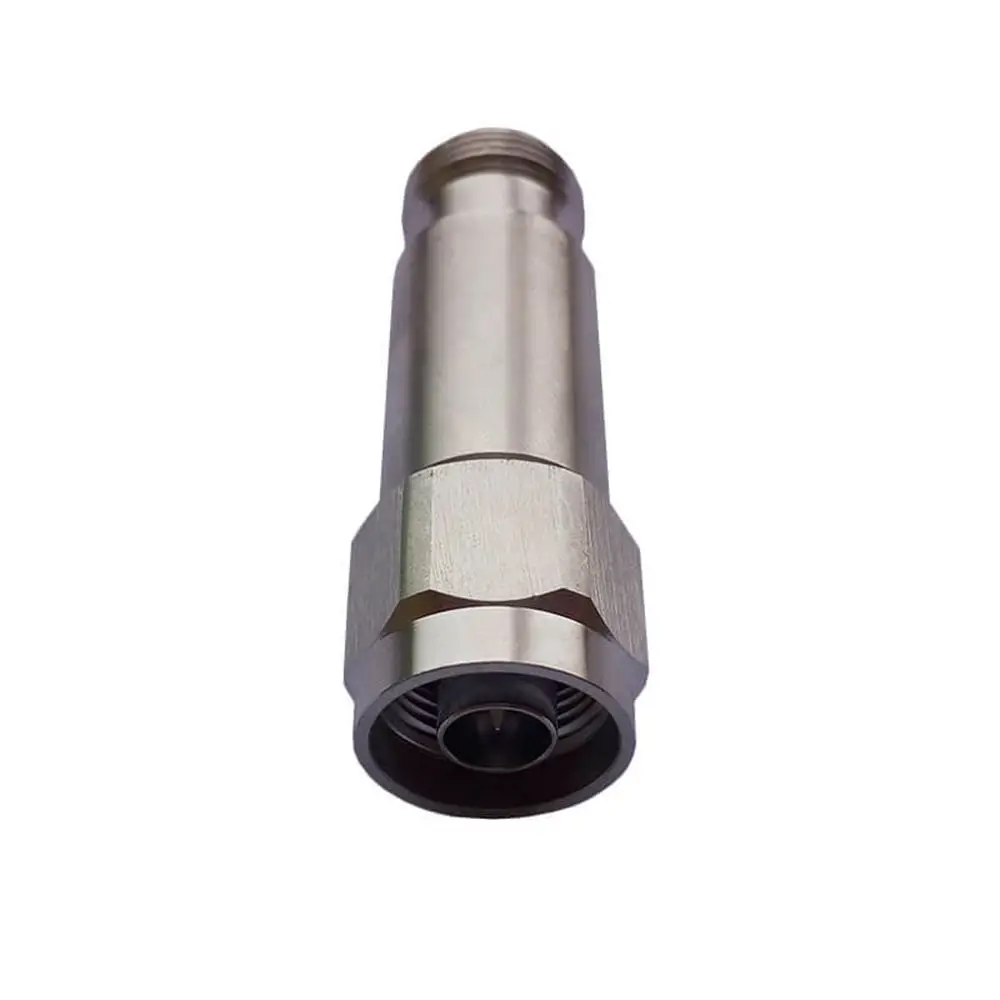

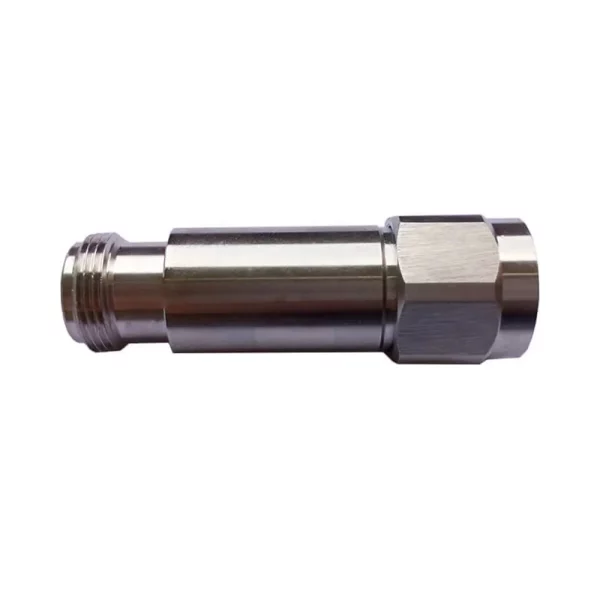

2W N-type Male to N-type Female Fixed RF Attenuator, DC to 3GHz
Introduction
The N-type attenuator is a high-performance RF component designed for precise signal reduction in communication systems. Operating from DC to 3GHz, this attenuator ensures minimal signal distortion with a 50-ohm impedance match, making it ideal for test equipment, wireless networks, and military applications. The rugged stainless steel housing provides durability, while the N-type male to N-type female connectors offer secure and reliable connections.
With a power handling capacity of 2W and an excellent VSWR of 1.20:1, this attenuator guarantees stable performance under demanding conditions. Its wide operating temperature range (-55°C to +125°C) and IP20 protection rating make it suitable for both indoor and harsh environments. Whether for lab testing or field deployment, this N-type attenuator delivers consistent attenuation with low insertion loss.
Key Features:
- 2W power handling for robust performance.
- DC to 3GHz frequency range for broad compatibility.
- 50-ohm impedance ensures minimal signal reflection.
- N-type male to N-type female connectors for secure connections.
- Stainless steel housing for durability.
- Low VSWR (1.20:1) for superior signal integrity.
- Wide temperature range (-55°C to +125°C) for versatile use.
Main Specifications:
| Part No.: | 2W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 2W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 2W N-type Male to N-type Female Fixed RF Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
