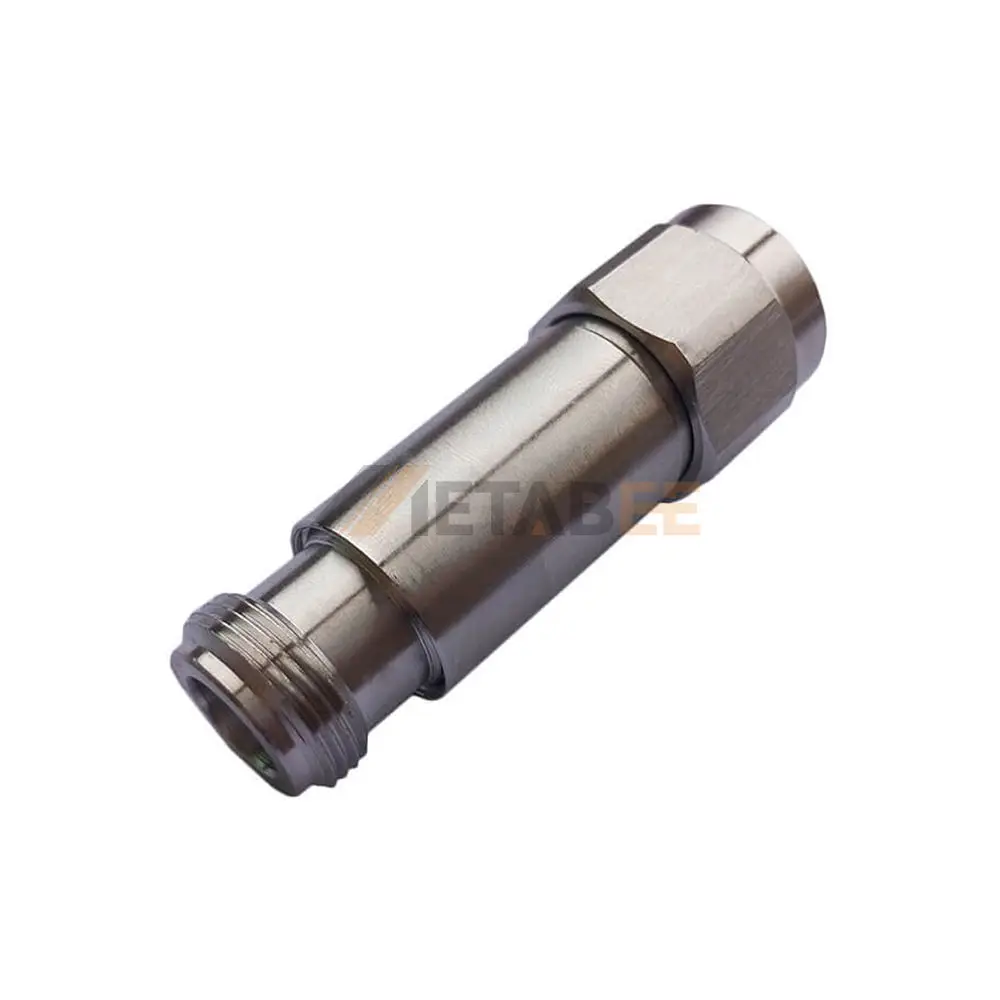

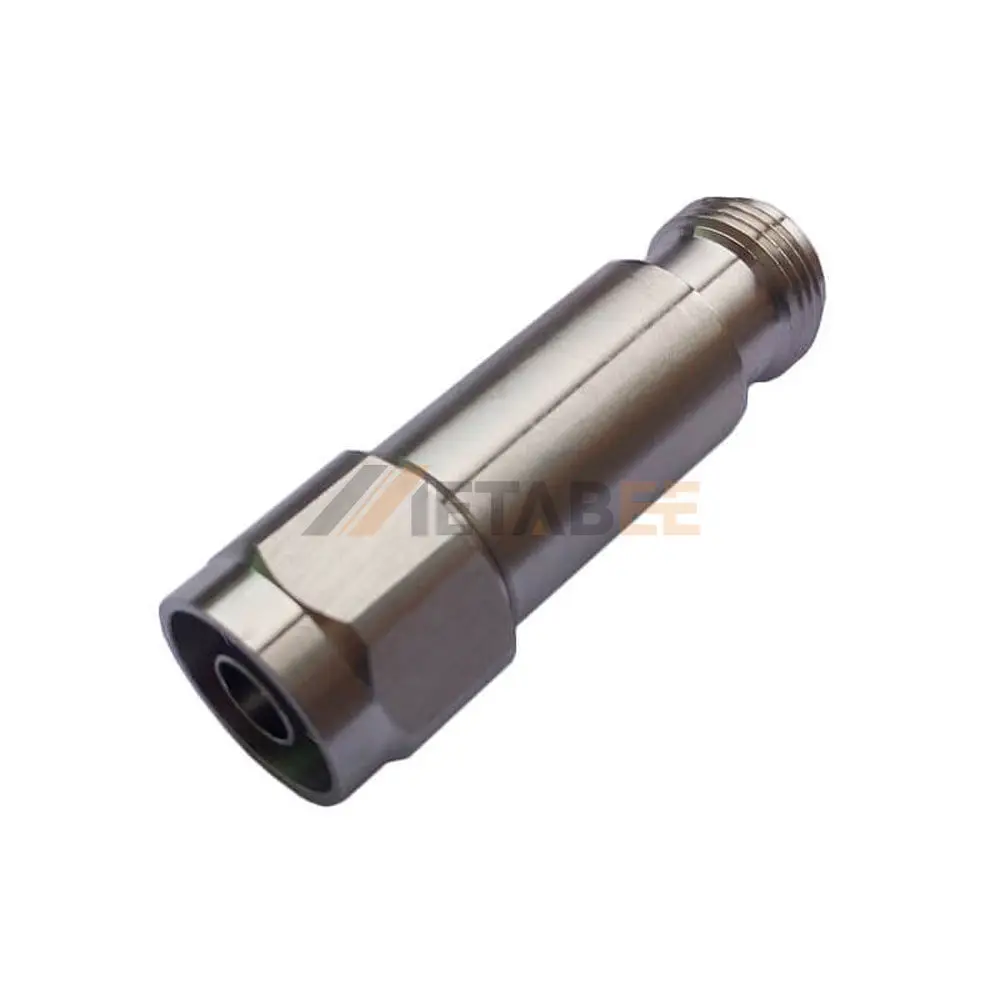

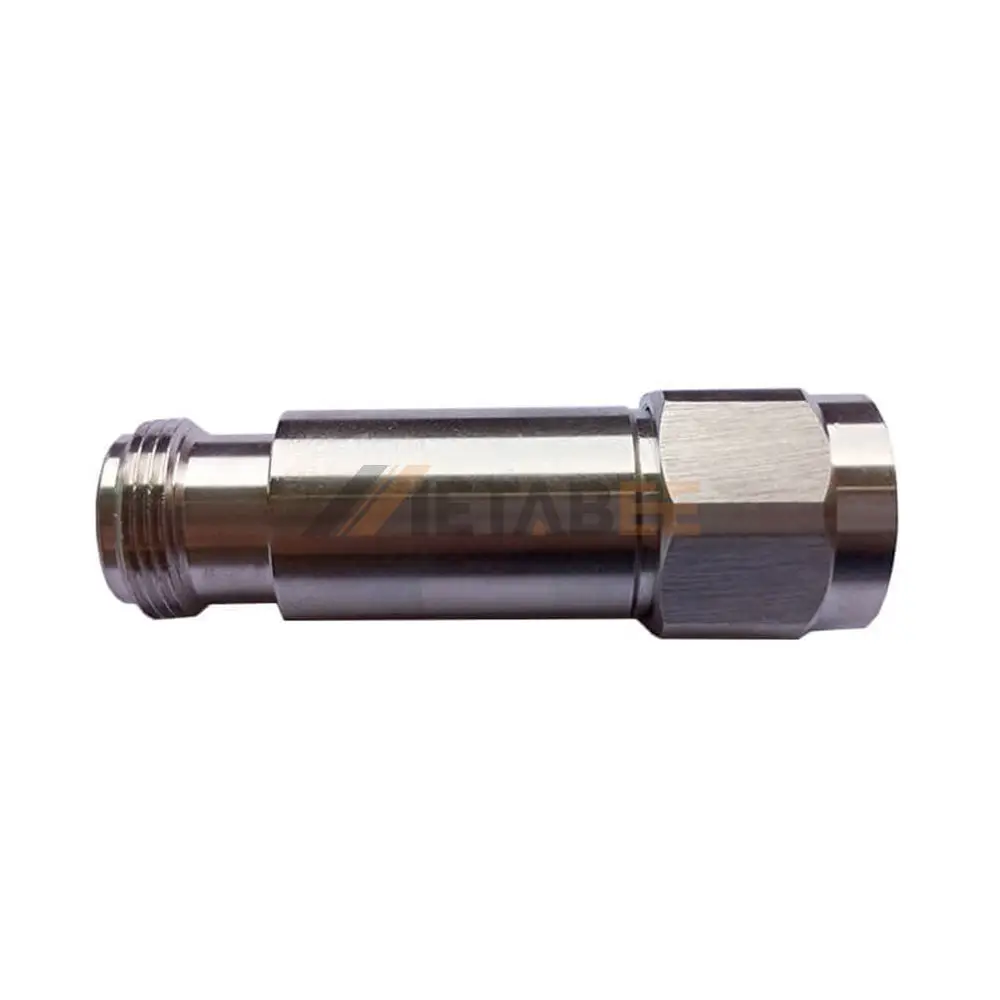

2W N-type Male to N-type Female Fixed RF Attenuator, DC to 4GHz
Introduction
This N-type attenuator is an essential component for precise signal level control in a wide range of RF applications. Engineered for durability and high performance, it features N-type male to N-type female connectors with stainless steel housings, ensuring robust and reliable connections. With a DC to 4 GHz frequency range and a 50-ohm impedance, this attenuator is ideal for reducing signal power without introducing significant reflections, making it suitable for testing, measurement, and system optimization.
Designed to withstand demanding environments, this attenuator operates efficiently across a broad temperature range of -55°C to 125°C. Its IP20 ingress protection provides basic protection against solid objects. The low VSWR of 1.20:1 guarantees minimal signal loss and excellent impedance matching, ensuring signal integrity in your RF setup. Whether you’re working with telecommunications, broadcasting, or laboratory equipment, this attenuator delivers consistent and accurate performance.
Key Features:
- BNC Male to BNC Female Connectors: Standard BNC interfaces for broad compatibility.
- 2W Power Rating: Handles up to 2 watts of power for various applications.
- N-type Connectors: Features N-type male to N-type female connectors for broad compatibility.
- 50 Ohm Impedance: Ensures optimal signal transfer and minimal reflection.
- DC to 4 GHz Frequency: Wide frequency range for diverse RF systems.
- Stainless Steel Housing: Provides excellent durability and corrosion resistance.
- Low VSWR (1.20:1): Minimizes signal loss and maximizes power transfer.
- Wide Operating Temperature: Functions reliably from -55°C to 125°C.
Main Specifications:
| Part No.: | 2W-N-JK-4G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 2W | |
| Attenuation: | 1DB, 2DB, 3DB, 6DB, 10DB, 15DB, 20DB, 30DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 2W N-type Male to N-type Female Fixed RF Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
