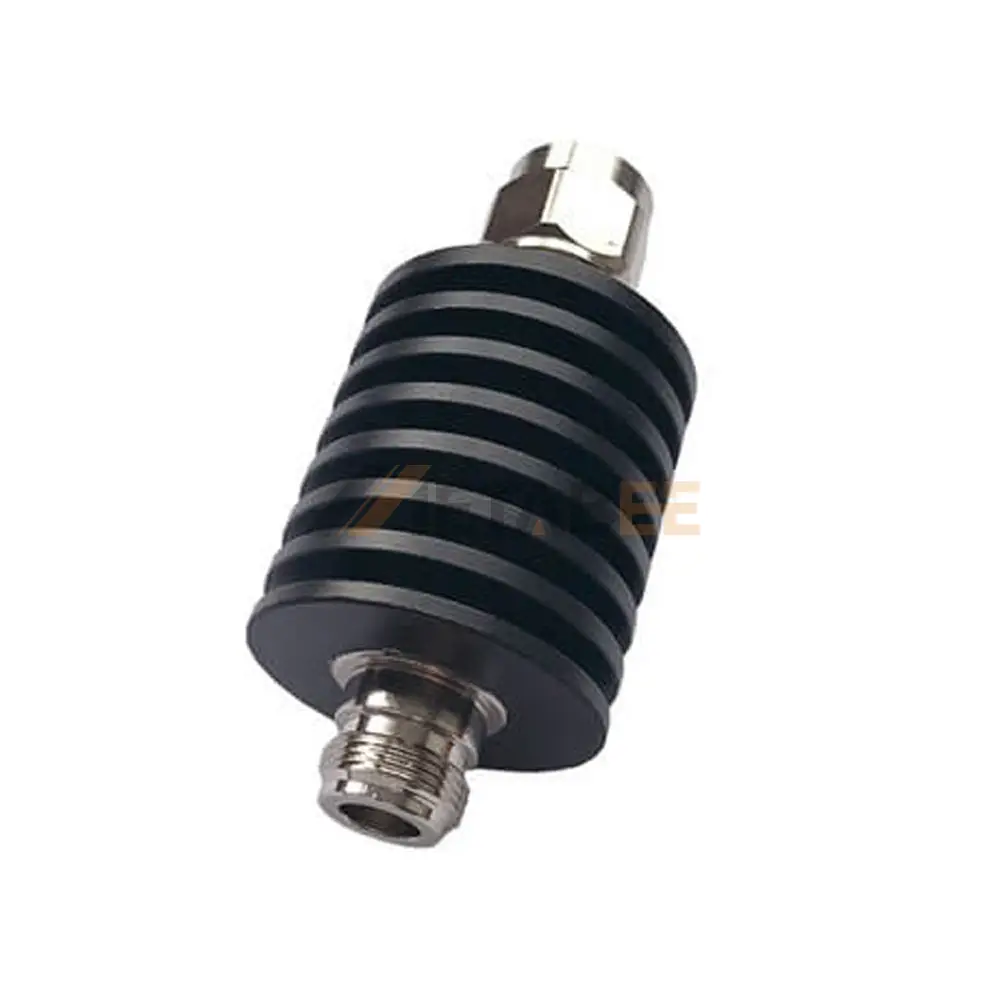

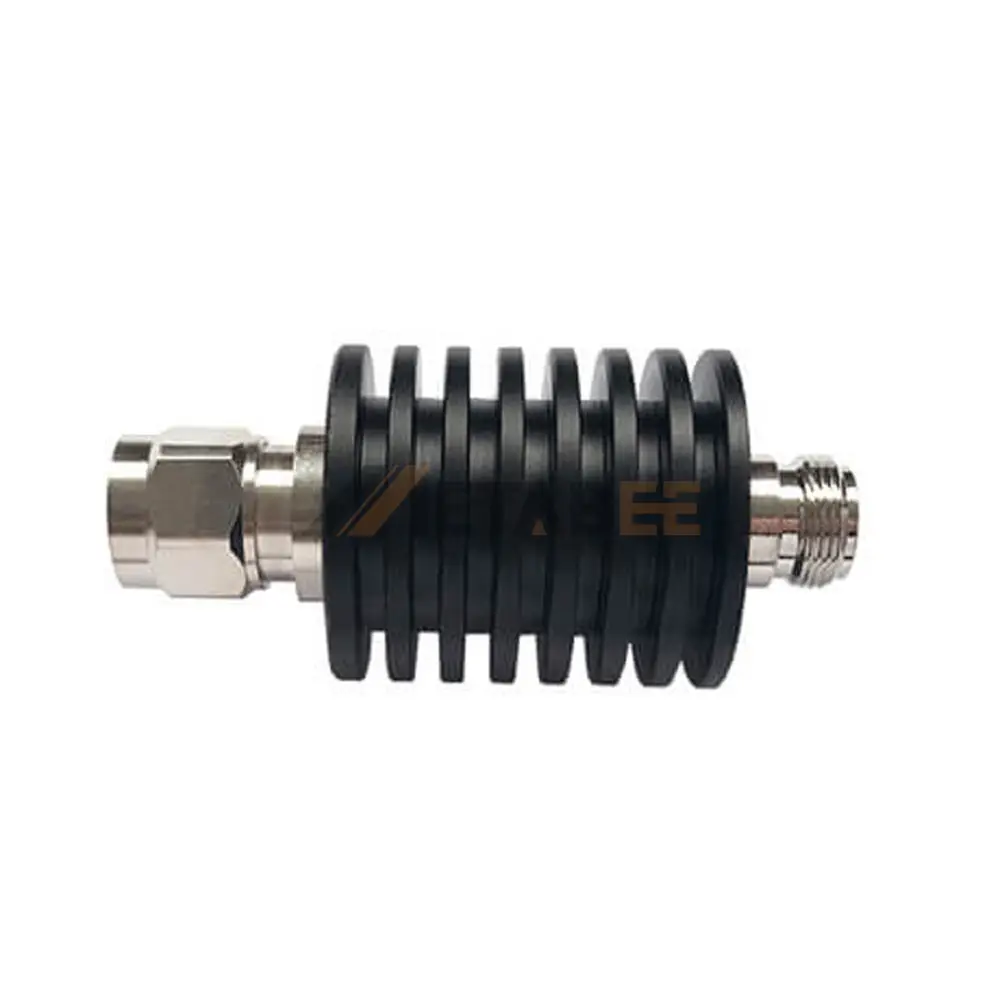

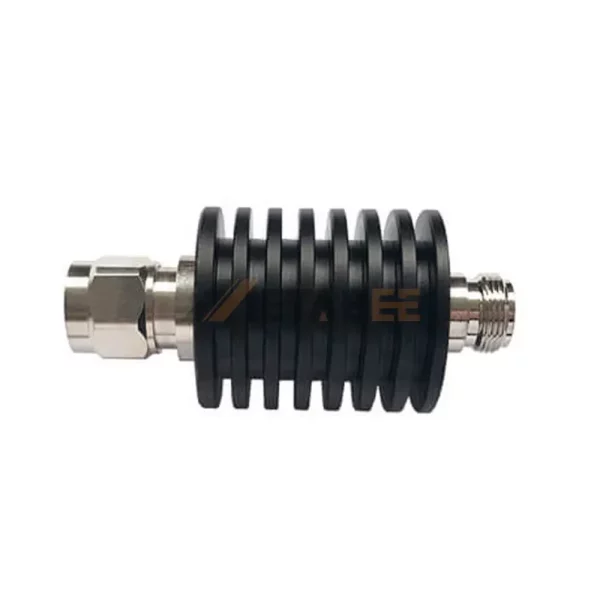

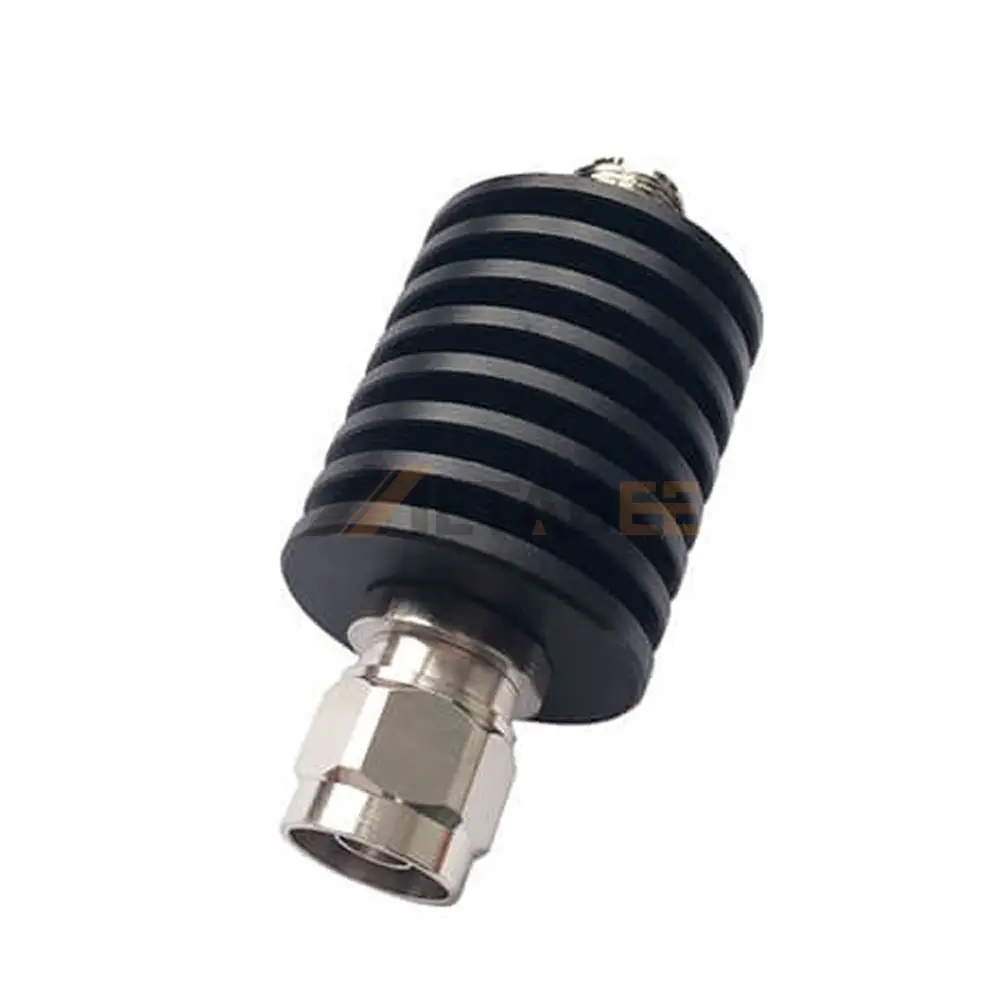

25W N-type Male to N-type Female RF Fixed Attenuator, DC to 3GHz
Introduction
The 25W N-type attenuator is built for precision signal attenuation in high-power RF and microwave systems. Operating across a wide DC to 3GHz frequency range, it supports up to 25 watts of power with a low VSWR of 1.20:1, ensuring consistent performance with minimal signal reflection. This attenuator is ideal for applications such as signal level control, load simulation, and system matching in test environments or communication setups.
Engineered for durability, the attenuator features stainless steel N-type male and female connectors that provide reliable connectivity and resistance to wear. With a standard 50-ohm impedance and IP20-rated housing, it offers dependable performance in indoor environments. Its broad operating temperature range of -55°C to +125°C ensures stable functionality in demanding thermal conditions.
Key Features:
- Frequency Range: DC to 3GHz.
- Power Rating: Supports up to 25 Watts.
- VSWR: 1.20:1 for low signal reflection.
- Connector Type: N-type male to N-type female.
- Impedance: 50 Ohms standard.
- Construction: Stainless steel housing.
- Temperature Range: -55°C to +125°C.
Main Specifications:
| Part No.: | 25W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 25W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 25W N-type Male to N-type Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
