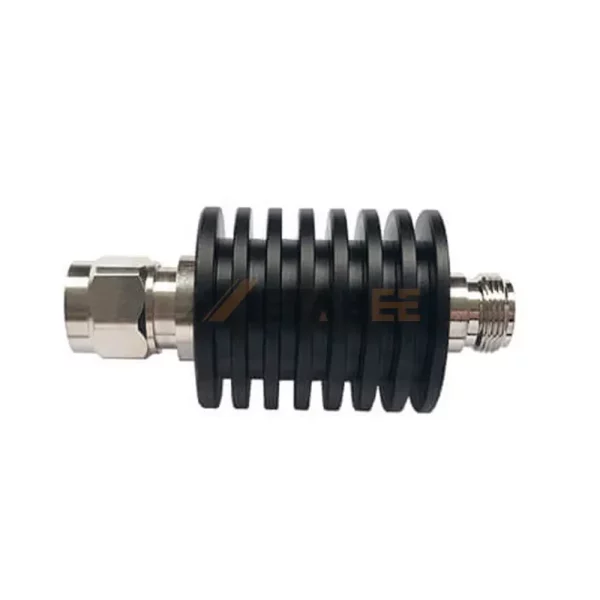

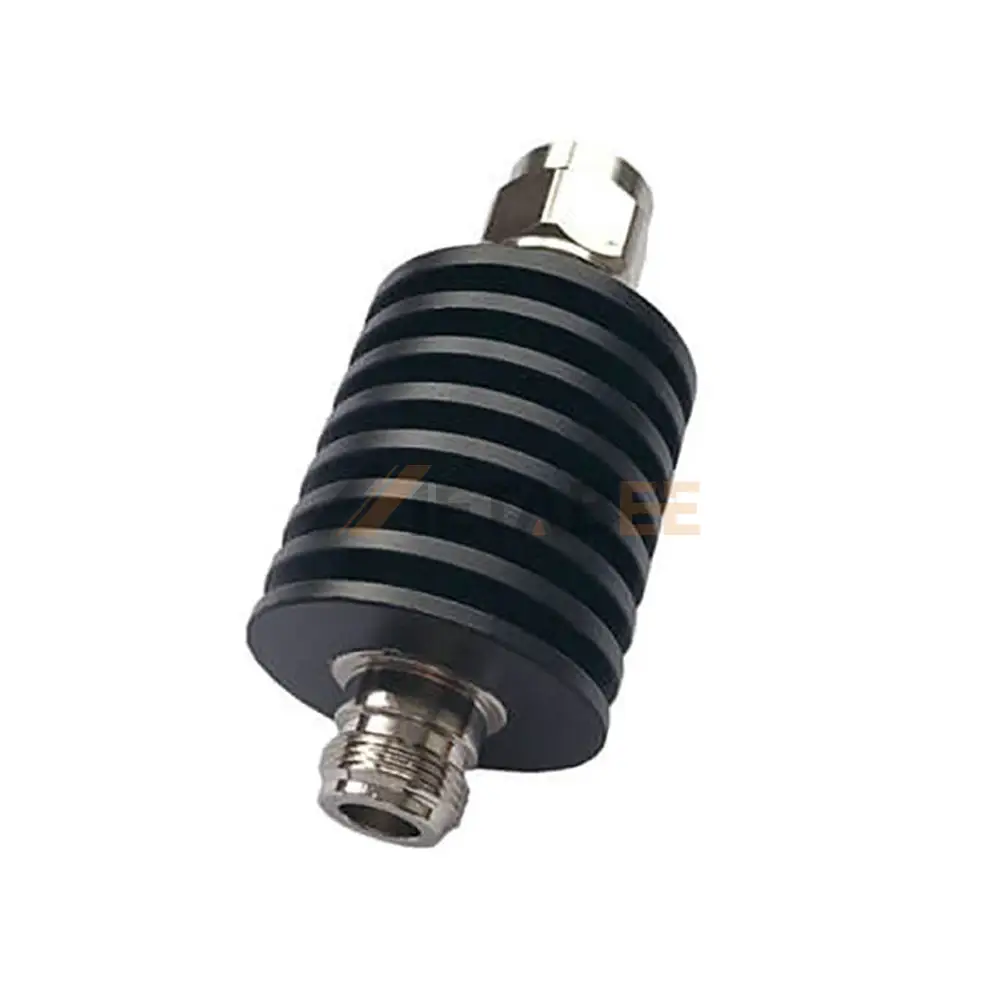

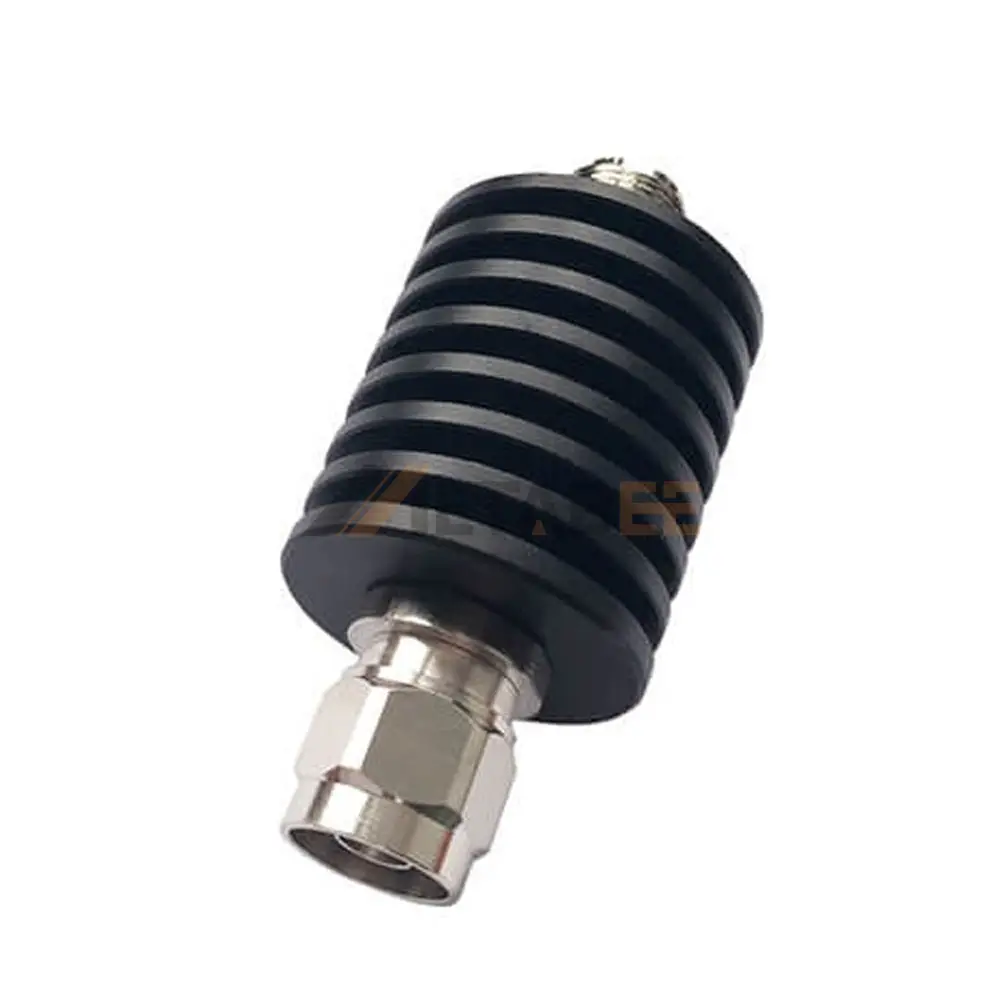

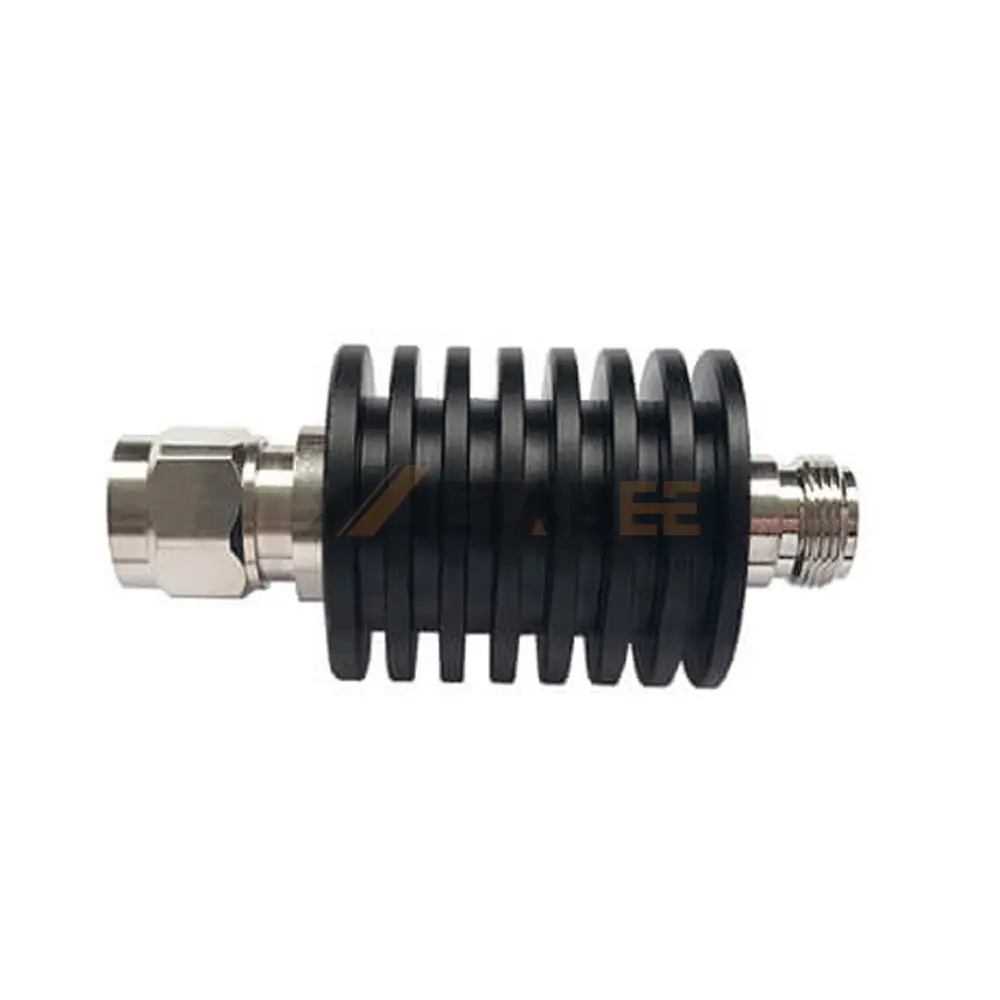

25W N-type Male to N-type Female Fixed Attenuator, DC to 4GHz
Introduction
This high-performance N-type attenuator is designed for precise signal reduction in RF and microwave applications. Featuring a robust stainless steel housing, it ensures durability and reliable performance in demanding environments. The attenuator supports a 50-ohm impedance and operates across a broad frequency range of DC to 4GHz, making it ideal for communication systems, test equipment, and military applications. With a power handling capacity of 25W and an excellent VSWR of 1.20:1, it minimizes signal reflection while maintaining signal integrity.
Engineered for versatility, this fixed attenuator comes with an N-type male connector and an N-type female connector, providing seamless integration into various setups. Its IP20 protection rating safeguards against minor environmental exposure, while the wide operating temperature range (-55°C to +125°C) ensures stability in extreme conditions. Whether for lab testing or field deployment, this attenuator delivers consistent performance and long-term reliability.
Key Features:
- 25W power handling for high-power applications.
- DC to 4GHz frequency range for broad compatibility.
- 50-ohm impedance ensures minimal signal loss.
- Low VSWR (1.20:1) for reduced signal reflection.
- Stainless steel housing for durability.
- N-type male to N-type female connectors for easy integration.
- Wide temperature range (-55°C to +125°C) for extreme environments.
Main Specifications:
| Part No.: | 25W-N-JK-4G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 25W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 25W N-type Male to N-type Female Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
