Introduction:
The 2 port ganged rj45 ethernet jack is a side-by-side networking interface designed for high-density multi-link board layouts. Reliable data transmission rates are supported for standard Ethernet connectivity in demanding industrial systems. Successful operation is maintained across the wide -40C to +85C temperature range to ensure performance in severe environments. A robust nickel-plated copper alloy shield provides a full enclosure to block electromagnetic interference effectively. Visual status monitoring relies on the integrated green and blank LED indicators positioned in the tab-up profile. Furthermore, gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms while the through hole termination secures the component to the PCB. Networking switches, industrial routers, and server hubs frequently utilize this 2 port ganged rj45 ethernet jack.
Key Features
- Ganged 1×2 configuration: Facilitates two side-by-side network ports efficiently.
- Industrial temperature range: Operates reliably from -40C up to +85C.
- Full metal shielding: Blocks severe electromagnetic interference for signals.
- Integrated green LED: Tracks precise network link activity visually.
- Low contact resistance: Gold plating ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88ARX1C-FSW-PG-LE | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Blank |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

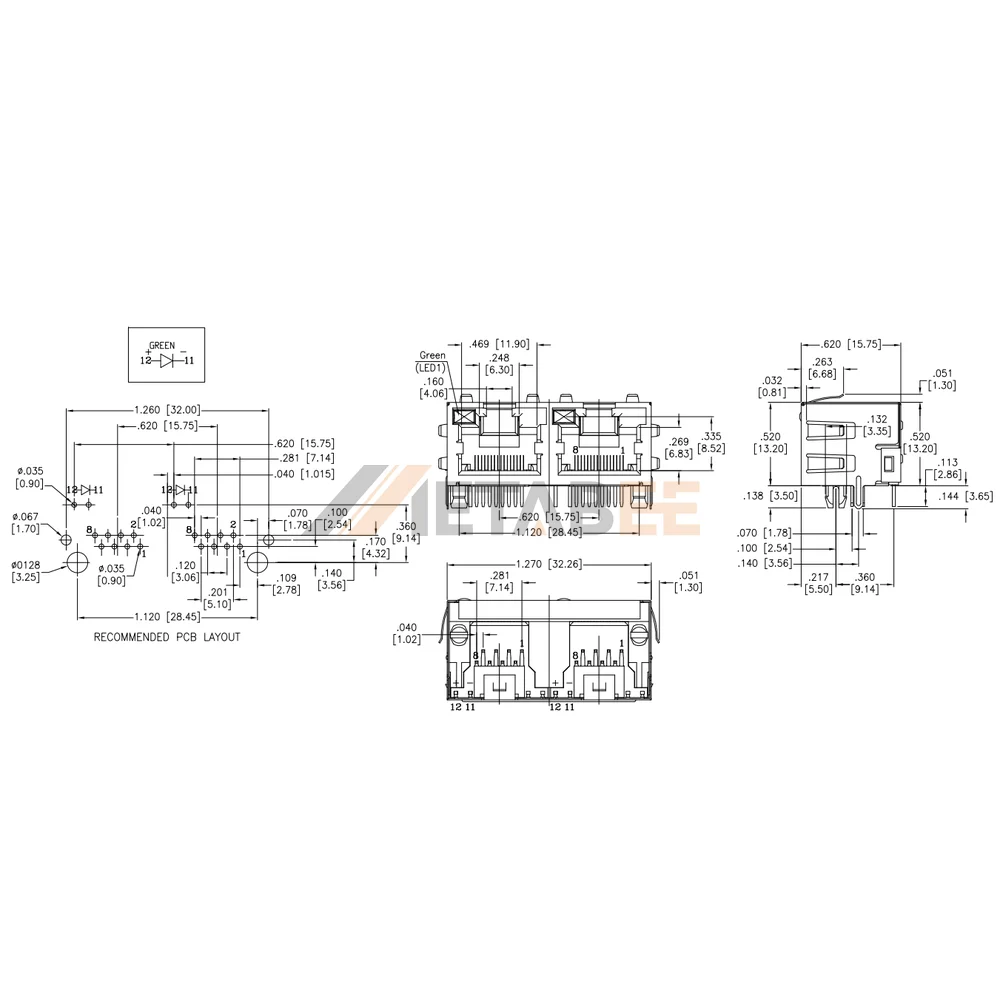

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
